Directional on/off valve Parts

Bosch Rexroth

R901564316

DIRECTIONAL SPOOL VALVE 4WE6HA5X/BG24NVP1Z2/V

Bosch Rexroth

R901197623

DIRECTIONAL SPOOL VALVE 4WE6H7X/HG24N9K4/V

Bosch Rexroth

R901130745

DIRECTIONAL SPOOL VALVE 4WE6H7X/HG24N9K4

Bosch Rexroth

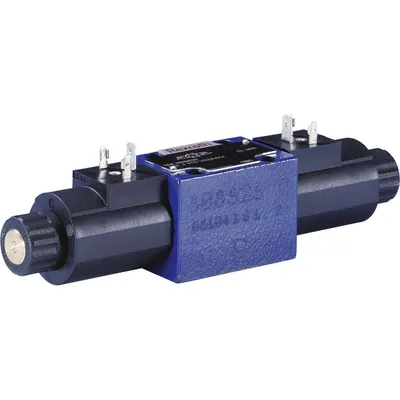

R901152101

DIRECTIONAL SPOOL VALVE 4WE6H7X/HG12N9K4

Bosch Rexroth

R900761694

DIRECTIONAL SPOOL VALVE 4WE6H73B6X/EW110N9K4

Bosch Rexroth

R901388214

DIRECTIONAL SPOOL VALVE 4WE6H73B6X/EG24N9K4/V

Bosch Rexroth

R901059440

DIRECTIONAL SPOOL VALVE 4WE6H73B6X/EG24N9K4

Bosch Rexroth

R901553945

DIRECTIONAL SPOOL VALVE 4WE6H73B6X/EG110N9K4/A12V

Bosch Rexroth

R901196243

DIRECTIONAL SPOOL VALVE 4WE6H73A6X/EG48N9K4/V

Bosch Rexroth

R901475563

DIRECTIONAL SPOOL VALVE 4WE6H73A6X/EG24N9K73L/A12

Bosch Rexroth

R901254435

DIRECTIONAL SPOOL VALVE 4WE6H73A6X/EG24N9K72L/A12

Bosch Rexroth

R901489176

DIRECTIONAL SPOOL VALVE 4WE6H73A6X/EG24N9K4=UR

Bosch Rexroth

R901098482

DIRECTIONAL SPOOL VALVE 4WE6H73A6X/EG24N9K4/V

Bosch Rexroth

R900787036

DIRECTIONAL SPOOL VALVE 4WE6H73A6X/EG24N9K4/A12B12

Bosch Rexroth

R901223221

DIRECTIONAL SPOOL VALVE 4WE6H73A6X/EG24N9K4/A12/62

Bosch Rexroth

R900550284

DIRECTIONAL SPOOL VALVE 4WE6H73A6X/EG24N9K4/A12

Bosch Rexroth

R901236954

DIRECTIONAL SPOOL VALVE 4WE6H73A6X/EG24N9K4/62

Bosch Rexroth

R900940564

DIRECTIONAL SPOOL VALVE 4WE6H73A6X/EG24N9K4

Bosch Rexroth

R901553880

DIRECTIONAL SPOOL VALVE 4WE6H73A6X/EG24N9DK35L/A12V

Bosch Rexroth

R901227513

DIRECTIONAL SPOOL VALVE 4WE6H73A6X/EG110N9K4

Bosch Rexroth

R900920080

DIRECTIONAL SPOOL VALVE 4WE6H73-6X/EW230N9K4

Bosch Rexroth

R978911562

DIRECTIONAL SPOOL VALVE 4WE6H73-6X/EG96N9K4/62

Bosch Rexroth

R901489099

DIRECTIONAL SPOOL VALVE 4WE6H73-6X/EG24N9K4=UR

Bosch Rexroth

R900906660

DIRECTIONAL SPOOL VALVE 4WE6H73-6X/EG24N9K4/A12

Compare Directional on/off valve

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Product family	Spool symbol	Supply voltage	Electrical connector	Weight [kg]
R901564316	WE 6../.B..VP1	Symbol H	24 VDC	Cable gland	3.9
R901197623	WE6../H	Symbol H	24 VDC	Connector, 3-pole (2 + PE)	1.56
R901130745	WE6../H	Symbol H	24 VDC	Connector, 3-pole (2 + PE)	1.56
R901152101	WE6../H	Symbol H	12 VDC	Connector, 3-pole (2 + PE)	1.56
R900761694	WE6../E	Symbol H73B	110…120 VAC	Connector, 3-pole (2 + PE)	1.8
R901388214	WE6../E	Symbol H73B	24 VDC	Connector, 3-pole (2 + PE)	1.5
R901059440	WE6../E	Symbol H73B	24 VDC	Connector, 3-pole (2 + PE)	1.46
R901553945	WE6../E	Symbol H73B	110 VDC	Connector, 3-pole (2 + PE)	1.46
R901196243	WE6../E	Symbol H73	48 VDC	Connector, 3-pole (2 + PE)	1.42
R901475563	WE6../E	Symbol H73A	24 VDC	Connector, 4-pole, M12 x 1, coding A	1.8
R901254435	WE6../E	Symbol H73	24 VDC	Connector, 4-pole, M12 x 1, coding A	1.46
R901489176	WE6../E	Symbol H73	24 VDC	Connector, 3-pole (2 + PE)	1.55
R901098482	WE6../E	Symbol H73A	24 VDC	Connector, 3-pole (2 + PE)	1.44
R900787036	WE6../E	Symbol H73	24 VDC	Connector, 3-pole (2 + PE)	1.49
R901223221	WE6../E	Symbol H73	24 VDC	Connector, 3-pole (2 + PE)	1.46
R900550284	WE6../E	Symbol H73A	24 VDC	Connector, 3-pole (2 + PE)	1.45
R901236954	WE6../E	Symbol H73A	24 VDC	Connector, 3-pole (2 + PE)	1.8
R900940564	WE6../E	Symbol H73A	24 VDC	Connector, 3-pole (2 + PE)	1.44
R901553880	WE6../E	Symbol H73A	24 VDC	Connector, 4-pole, M12 x 1, coding A	1.54
R901227513	WE6../E	Symbol H73A	110 VDC	Connector, 3-pole (2 + PE)	1.8
R900920080	WE6../E	Symbol H73	230 VAC 50/60Hz	Connector, 3-pole (2 + PE)	1.7
R978911562	WE6../E	Symbol H73	96 VDC	Connector, 3-pole (2 + PE)	1.95
R901489099	WE6../E	Symbol H73	24 VDC	Connector, 3-pole (2 + PE)	2.04
R900906660	WE6../E	Symbol H73	24 VDC	Connector, 3-pole (2 + PE)	2

Common to all listed parts

Connection diagram	ISO 4401-03-02-0-05
Size	6
Type of actuation	with solenoid actuation
Number of ports	4
