Directional on/off valve Parts
Compare Directional on/off valve
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Product family | Operating pressure, max. [bar] | Max. flow [l/min] | Supply voltage | Weight [kg] |
|---|---|---|---|---|---|
| R900941202 | WE6../E | 350.0 | 60.0 | 24 VDC | 2.05 |
| R978898838 | WE6../E | 350.0 | 60.0 | 24 VDC | 1.95 |
| R901570317 | WE6../E | 350.0 | 80.0 | 24 VDC | 1.8 |
| R900617548 | WE6../E | 350.0 | 60.0 | 24 VDC | 2 |
| R900742565 | WE6../E | 350.0 | 60.0 | 220 VDC | 1.92 |
| R900246495 | WE6../E | 350.0 | 60.0 | 220 VDC | 1.94 |
| R901505577 | WE6../E | 350.0 | 60.0 | 205 VDC | 3.35 |
| R901010845 | WE6../E | 350.0 | 60.0 | 205 VDC | 1.95 |
| R978034570 | WE6../E | 350.0 | 60.0 | 205 VDC | 1.8 |
| R901346435 | WE6../E | 350.0 | 60.0 | 12 VDC | 1.8 |
| R900929514 | WE6../E | 350.0 | 60.0 | 12 VDC | 1.97 |
| R901032222 | WE6../E | 350.0 | 60.0 | 125 VDC | 1.94 |
| R900246496 | WE6../E | 350.0 | 60.0 | 125 VDC | 1.94 |
| R900948321 | WE6../E | 350.0 | 60.0 | 110 VDC | 1.8 |
| R901045711 | WE6../E | 350.0 | 60.0 | 110 VDC | 2 |
| R900785755 | WE6../E | 350.0 | 60.0 | 110 VDC | 1.94 |

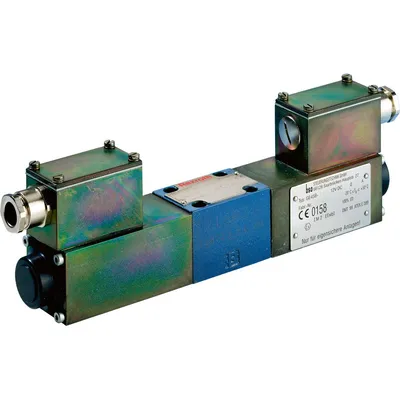

| R901494842 | WE6../.B.X | 210.0 | 20.0 | 12 VDC | 4.31 |
| R901551984 | WE6../E | 350.0 | — | 96 VDC | 1.48 |
| R901551999 | WE6../E | 350.0 | — | 24 VDC | 1.51 |
| R901551998 | WE6../E | 350.0 | — | 24 VDC | 1.51 |
| R901551992 | WE6../E | 350.0 | — | 24 VDC | 1.3 |
| R901551989 | WE6../E | 350.0 | — | 24 VDC | 1.5 |
| R901028598 | WE6../E | 350.0 | — | 24 VDC | 1.46 |
| R901551974 | WE6../E | 350.0 | — | 24 VDC | 1.5 |
Common to all listed parts
| Connection diagram | ISO 4401-03-02-0-05 |
| Size | 6 |
| Type of actuation | with solenoid actuation |
| Number of ports | 4 |
