Home / Hydraulics / Manifolds and plates / Standard manifolds with cartridges / Sub plate

Sub plate Parts

Bosch Rexroth

R930066290

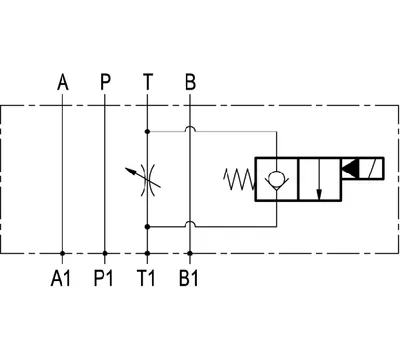

VALVE BLOCK OP60020329A0000-EM-VEI162A-NA-ST-T-F6

Bosch Rexroth

R930066330

VALVE BLOCK OP60010329A0000-EM-VEI162A-NC-ST-T-F6

Bosch Rexroth

R930066276

VALVE BLOCK OP35021029A0000-EM.VEI16A-NA-VSBN35-P-F6

Bosch Rexroth

R930066265

VALVE BLOCK OP35020729A0000-EM.VEI16A-NA-VSBN20-P-F6

Bosch Rexroth

R930066296

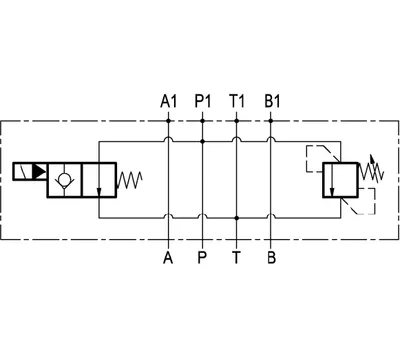

VALVE BLOCK OP35020429A0000-EM.VEI16A-NA-VSBN10-P-F6

Bosch Rexroth

R934002668

VALVE BLOCK OP0101032935 EM-VSC30-35NCPTF6

Bosch Rexroth

R934002667

VALVE BLOCK OP0101032920 EM-VSC30-20NCPTF6

Bosch Rexroth

R930066266

VALVE BLOCK OP63020329A0000-EM-VEI162A-NA-ST-P1-F6

Bosch Rexroth

R930066334

VALVE BLOCK OP63010429A0000-EM-VEI162A-NC-STV-P1-F6

Bosch Rexroth

R930066261

VALVE BLOCK OP63010329A0000-EM-VEI162A-NC-ST-P1-F6

Bosch Rexroth

R930066281

VALVE BLOCK OP62050329A0000-EM-VEI162A-NC-ST-B1-F6

Bosch Rexroth

R930066289

VALVE BLOCK OP61060329A0000-EM-VEI162A-NA-ST-A1-F6

Bosch Rexroth

R930066268

VALVE BLOCK OP61050329A0000-EM-VEI162A-NC-ST-A1-F6

Bosch Rexroth

R930066333

VALVE BLOCK OP16321829A0000-EM-VEI162T-NA-B-F6

Bosch Rexroth

R930066075

VALVE BLOCK OP16311829D0000-EM-VEI162T.NCE.B.F6

Bosch Rexroth

R930066331

VALVE BLOCK OP16311829A0000-EM-VEI162T-NC-B-F6

Bosch Rexroth

R930067212

VALVE BLOCK OP16051829D0000-EM-VEI162A-NCE-B-F6

Bosch Rexroth

R930066267

VALVE BLOCK OP16051829A0000-EM-VEI162A-NC-B-F6

Bosch Rexroth

R930067298

VALVE BLOCK OP15321829A0000-EM-VEI162T-NA-A-B-F6

Bosch Rexroth

R930066777

VALVE BLOCK OP15311829D0000-EM.VEI162T.NCE.A.B.F6.

Bosch Rexroth

R930066776

VALVE BLOCK OP15311829A0000-EM.VEI162T.NC.A.B.F6.

Bosch Rexroth

R930066329

VALVE BLOCK OP15051829D0000-EM-VEI162A-NCE-A-B-F6

Bosch Rexroth

R930064980

VALVE BLOCK OP15051829A0000-EM.VEI162A.NC.A.B.F6.

Bosch Rexroth

R930067299

VALVE BLOCK OP14321829A0000-EM-VEI162T-NA-A-F6

Compare Sub plate

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Max. flow [l/min]	Nominal flow [l/min]	Product family	Product type	Weight [kg]
R930066290	40.0	40.0	2 ways + needle on T	VEI-ST-CETOP3-T	1.02
R930066330	40.0	40.0	2 ways + needle on T	VEI-ST-CETOP3-T	1.01
R930066276	20.0	20.0	2 ways + relief on P	VEI-VS-CETOP3-P	0.67
R930066265	20.0	20.0	2 ways + relief on P	VEI-VS-CETOP3-P	0.67
R930066296	20.0	20.0	2 ways + relief on P	VEI-VS-CETOP3-P	0.67
R934002668	30.0	30.0	Relief on P	VS-CETOP3-P	0.53
R934002667	30.0	30.0	Relief on P	VS-CETOP3-P	0.53
R930066266	40.0	40.0	2 ways + needle on P	VEI-ST-CETOP3-P	1.02
R930066334	40.0	40.0	2 ways + needle on P	VEI-ST-CETOP3-P	1.04
R930066261	40.0	40.0	2 ways + needle on P	VEI-ST-CETOP3-P	1.03
R930066281	40.0	40.0	2 ways + needle on B	VEI-ST-CETOP3-B	1.02
R930066289	40.0	40.0	2 ways + needle on A	VEI-ST-CETOP3-A	1.02
R930066268	40.0	40.0	2 ways + needle on A	VEI-ST-CETOP3-A	1.02
R930066333	40.0	40.0	2 ways on B	VEI-CETOP3-B	1.01
R930066075	40.0	40.0	2 ways on B	VEI-CETOP3-B	0.66
R930066331	40.0	40.0	2 ways on B	VEI-CETOP3-B	1.01
R930067212	40.0	40.0	2 ways on B	VEI-CETOP3-B	0.67
R930066267	40.0	40.0	2 ways on B	VEI-CETOP3-B	0.8
R930067298	40.0	40.0	2 ways on A/B	VEI-CETOP3-A/B	0.78
R930066777	40.0	40.0	2 ways on A/B	VEI-CETOP3-A/B	0.75
R930066776	40.0	40.0	2 ways on A/B	VEI-CETOP3-A/B	0.73
R930066329	40.0	40.0	2 ways on A/B	VEI-CETOP3-A/B	0.75
R930064980	40.0	40.0	2 ways on A/B	VEI-CETOP3-A/B	0.75
R930067299	40.0	40.0	2 ways on A	VEI-CETOP3-A	0.65

Common to all listed parts

Product family type	Modular element CETOP
Operating pressure, max. [bar]	210.0
Type of connection	Subplate mounting
Hydraulic fluid	HL; HLP
