Industrial valves Parts
Compare Industrial valves
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | A Port flow LPM | A Port flow USGPM | B Port flow LPM | B Port flow USGPM | Model Code 1 |
|---|---|---|---|---|---|
| 855AN00066A | 20.00 | 5.28 | 20.00 | 5.28 | KBDG4V333C20NZM2PH7H711 |
| 855AN00064A | 24.00 | 6.34 | 24.00 | 6.34 | KBDG4V32C24SZM2PE7H711 |
| 855AN00063A | 7.00 | 1.85 | 7.00 | 1.85 | KBDG4V333C07NM2PH7H711 |
| 855AN00062A | 20.00 | 5.28 | 20.00 | 5.28 | KBDG4V32C20NZM2PH7H711 |
| 855AN00057A | — | — | 20.00 | 5.30 | KBTG4V333B20NZM1PE7H711 |
| 855AN00055A | — | — | 20.00 | 5.30 | KBTG4V32B20NM2PE7H711 |
| 855AN00053A | 3.00 | 0.79 | 3.00 | 0.79 | KBDG4V333C03FZM1PE7H711 |
| 855AN00051A | 13.00 | 3.43 | 13.00 | 3.43 | KBDG4V333C13NM1PE7H711 |

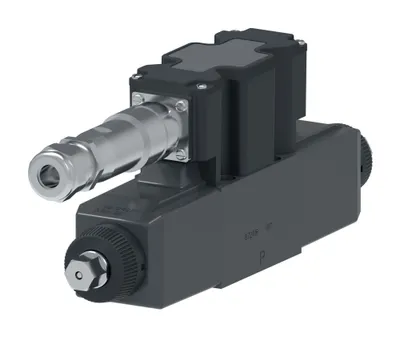

| 855AN00050A | 20.00 | 5.30 | 20.00 | 5.30 | KBDG4V32C20NZM1PH7H711 |
| 855AN00049A | 28.00 | 7.40 | 28.00 | 7.40 | KBDG4V32C28NM2PE7H711 |
| 855AN00048A | 3.00 | 0.79 | 3.00 | 0.79 | KBDG4V333C03FHM1PE7H711 |
| 855AN00047A | 7.00 | 1.85 | 7.00 | 1.85 | KBDG4V333C07NZM1PH7H711 |
| 855AN00046A | 3.00 | 0.79 | 3.00 | 0.79 | KBDG4V32C03FZM2PE7H711 |
| 855AN00045A | 13.00 | 3.40 | 13.00 | 3.40 | KBDG4V32C13NZM2PE7H711 |
| 855AN00038A | 3.00 | 0.79 | 3.00 | 0.79 | KBDG4V32C03FM1PE7H711 |
| 855AN00037A | 13.00 | 3.43 | 13.00 | 3.43 | KBDG4V333C13NZM1PE7H711 |
| 855AN00034A | 20.00 | 5.28 | 20.00 | 5.28 | KBDG4V333C20NHM1PE7H711 |
| 855AN00033A | 20.00 | 5.28 | 10.00 | 2.64 | KBDG4V32C20N10HM2PE7H711 |
| 855AN00032A | 13.00 | 3.43 | 13.00 | 3.43 | KBDG4V32C13NM2PE7H711 |
| 855AN00030A | 20.00 | 5.28 | 20.00 | 5.28 | KBDG4V32C20NHM1PE7H711 |
| 855AN00028A | 7.00 | 1.85 | 7.00 | 1.85 | KBDG4V333C07NM1PE7H711 |
| 855AN00027A | — | — | 20.00 | 5.30 | KBTG4V32B20NZM2PE7H711 |
| 855AN00025A | 20.00 | 5.28 | 20.00 | 5.28 | KBDG4V32C20NM2PE7H711 |

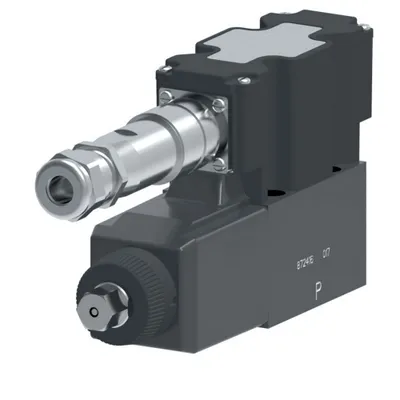

| 855AN00024A | — | — | 20.00 | 5.30 | KBTG4V32B20NZM1PE7H711 |
Common to all listed parts
| Actuation Type | Solenoid controlled |
| Coil voltage | 24 Volt DC |
| Communication protocol | None |
| Design Series | 11 Series |
| Feedback sensor | No |
| Fluid Cleanliness | 17/15/12 micron |
| Fluid compatibility | Antiwear hydraulic oils and non alkyl-based Phosphate Esters |
| Interface | ISO4401-03/NFPA D03/CETOP 3/NG06 |
