Industrial valves Parts
Compare Industrial valves
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | A Port flow LPM | A Port flow USGPM | B Port flow LPM | B Port flow USGPM | Model Code 1 |
|---|---|---|---|---|---|
| 857AN00266A | 180.00 | 48.00 | 100.00 | 26.40 | KBDG5V72C180N100EXHM1PE7H120 |
| 857AN00263A | 180.00 | 48.00 | 180.00 | 48.00 | KBDG5V72C180NTHM1PE7H120 |
| 857AN00262A | 180.00 | 48.00 | 180.00 | 48.00 | KBDG5V72C180NETHM1PE7H120 |
| 857AN00261A | 180.00 | 48.00 | 180.00 | 48.00 | KBDG5V72C180NEXM1PE7H120 |
| 857AN00260A | 180.00 | 48.00 | 180.00 | 48.00 | KBDG5V72C180NXHM1PE7H120 |
| 857AN00259A | 180.00 | 48.00 | 180.00 | 48.00 | KBDG5V72C180NXM1PE7H120 |
| 857AN00258A | 180.00 | 48.00 | 180.00 | 48.00 | KBDG5V72C180NTM1PE7H120 |
| 857AN00257A | 180.00 | 48.00 | 180.00 | 48.00 | KBDG5V72C180NM1PE7H120 |
| 857AN00256A | 180.00 | 48.00 | 180.00 | 48.00 | KBDG5V72C180NTM2PE7H120 |

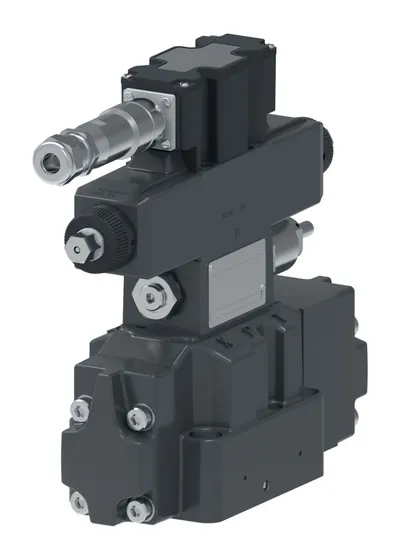

| 857AN00255A | 180.00 | 48.00 | 180.00 | 48.00 | KBDG5V72C180NXTM1PE7H120 |
| 857AN00253A | 170.00 | 45.00 | 170.00 | 45.00 | KBDG5V733C170NM2PH7H120 |
| 857AN00252A | 170.00 | 45.00 | 170.00 | 45.00 | KBDG5V733C170NXM2PE7H120 |
| 857AN00251A | 170.00 | 45.00 | 170.00 | 45.00 | KBDG5V733C170NM2PE7H120 |
| 857AN00250A | 170.00 | 45.00 | 170.00 | 45.00 | KBDG5V733C170NEXM2PH7H120 |
| 857AN00249A | 170.00 | 45.00 | 170.00 | 45.00 | KBDG5V733C170NXTHM1PE7H120 |
| 857AN00248A | 170.00 | 45.00 | 170.00 | 45.00 | KBDG5V733C170NXTM2PE7H120 |
| 857AN00247A | 170.00 | 45.00 | 170.00 | 45.00 | KBDG5V733C170NEXM2PE7H120 |
| 857AN00246A | 170.00 | 45.00 | 170.00 | 45.00 | KBDG5V733C170NXHM1PE7H120 |
| 857AN00245A | 170.00 | 45.00 | 170.00 | 45.00 | KBDG5V733C170NXM1PE7H120 |
| 857AN00244A | 170.00 | 45.00 | 170.00 | 45.00 | KBDG5V733C170NTM1PE7H120 |
| 857AN00243A | 170.00 | 45.00 | 170.00 | 45.00 | KBDG5V733C170NM1PE7H120 |
| 857AN00242A | 170.00 | 45.00 | 170.00 | 45.00 | KBDG5V733C170NEXTM2PE7H120 |
| 857AN00241A | 170.00 | 45.00 | 170.00 | 45.00 | KBDG5V733C170NXHM1PH7H120 |
| 857AN00233A | 230.00 | 61.30 | 230.00 | 61.30 | KBDG5V733C230NEXM2PH7H120 |
Common to all listed parts
| Actuation Type | Solenoid controlled pilot operated |
| Build orientation | Standard as per ANSI B93 9 |
| Build type | Spring centered |
| Coil voltage | 24 Volt DC |
| Communication protocol | None |
| Design Series | 20 Series |
| Feedback sensor | No |
| Fluid Cleanliness | 17/15/12 micron |
