Industrial valves Parts
Danfoss
02-119978
Danfoss
02-119856
Danfoss
02-119855
Danfoss
02-119837
Danfoss
02-119806
Danfoss
02-119796
Danfoss
02-119791
Danfoss
02-119771
Danfoss
02-119770
Danfoss
02-119767
Danfoss
02-119764
Danfoss
02-119752
Danfoss
02-119646
Danfoss
02-119638
Danfoss
02-119637Compare Industrial valves
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Electrical connection | Model Code 1 | Product height in | Spool Type | Spring arrangement |
|---|---|---|---|---|---|
| 02-120006 | Instaplug male and female receptacle | PBDG4S4L012CB60 | 3.850 | Spool 2 | Spring centred, three position |
| 02-119979 | ISO 4400 (Din 43650) connector | DG4S4012NUB60 | 3.850 | Spool 2 | No spring detented |

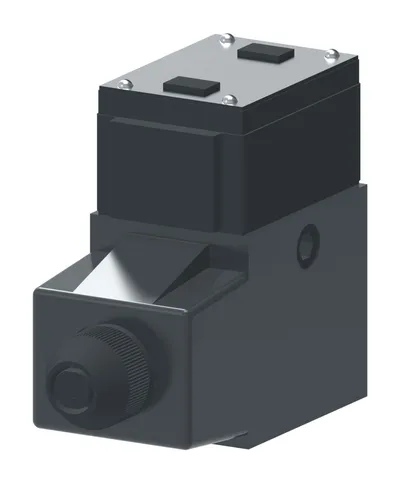

| 02-119978 | — | DG4S4LW012AB60LH | 5.410 | Spool 2 | Spring offset P-A |
| 02-119859 | — | DG4S4018CUB60 | 3.850 | Spool 8 | Spring centred, three position |
| 02-119857 | ISO 4400 (Din 43650) connector | DG4S4016AUH60 | 5.410 | Spool 6 | Spring offset |
| 02-119856 | Flying lead 1/2" NPT housing | F3DG4S4016AB60 | — | Spool 6 | Spring offset end to end |
| 02-119855 | 5-Pin connector | PA5DG4S4LW013CB60 | 5.410 | Spool 3 | Spring centred, three position |

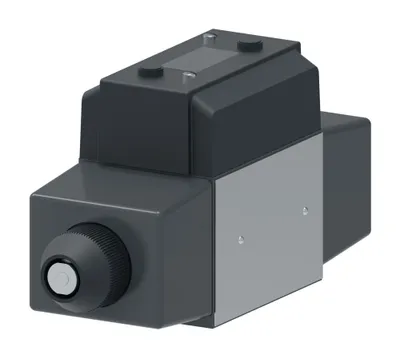

| 02-119837 | 5-Pin connector | PA5DG4S4LW017CB60 | 5.410 | Spool 7 | Spring centred, three position |
| 02-119835 | Instaplug male and female receptacle | PBDG4S4L0133CB60 | 5.410 | Spool 33 | Spring centred, three position |
| 02-119821 | — | DGMX25PPGWEB30 | 2.360 | — | — |
| 02-119806 | — | DG4S4010CH60 | 5.410 | Spool 0 | Spring centred, three position |
| 02-119796 | Flying lead 1/2" NPT housing | DG4S4L018CB60 | 5.410 | Spool 8 | Spring centred |
| 02-119793 | ISO 4400 (Din 43650) connector | DG4S4013CUB60 | 5.410 | Spool 3 | Spring centred, three position |
| 02-119791 | Flying lead coil | DG4S4010CD60 | 5.080 | Spool 0 | Spring centred, three position |

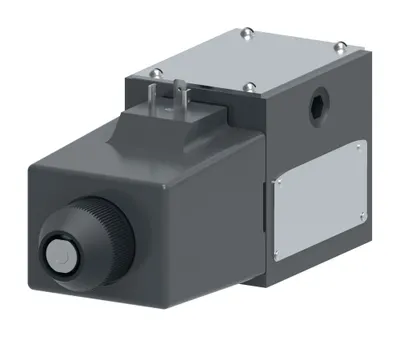

| 02-119790 | ISO 4400 (Din 43650) connector | DG4S4010AUB60 | 3.850 | Spool 0 | Spring offset |
| 02-119771 | Flying lead coil | DG4S4016CX60 | 3.850 | Spool 6 | Spring centred, three position |
| 02-119770 | — | DG4S4L012NB60 | 5.410 | Spool 2 | No spring detented |
| 02-119767 | — | DG4S4W012AB60 | 5.410 | Spool 2 | Spring offset P-A |

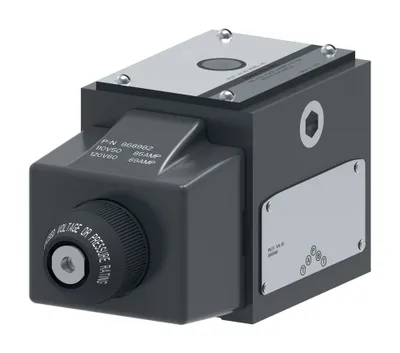

| 02-119764 | Flying lead coil | F3DG4S4L012AB60 | 5.410 | Spool 2 | Spring offset |

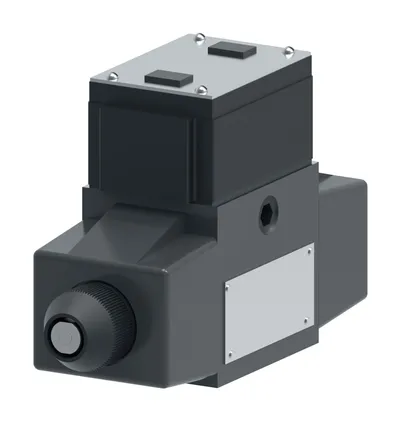

| 02-119752 | — | DG4S4W016CB60 | 5.410 | Spool 6 | Spring centred, three position |
| 02-119751 | Instaplug male and female receptacle | PBDG4S4L012NB60 | 5.410 | Spool 2 | No spring detented |
| 02-119646 | Flying lead coil | DG4S4012CH60S324 | 3.850 | Spool 2 | Spring centred, three position |
| 02-119638 | Flying lead coil | DG4S4010CB60S324 | 5.410 | Spool 0 | Spring centred, three position |

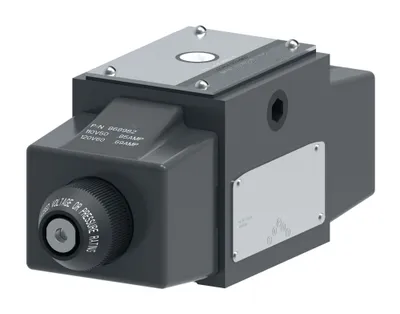

| 02-119637 | — | DG4S4018CB60S324 | 5.410 | Spool 8 | Spring centred, three position |
Common to all listed parts
| Valve mount type | Subplate/manifold mounted |
