Cartridge valves Parts
Browse Subcategories
Compare Cartridge valves
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Model Code 1 | Product height in | Product height mm | Product length in | Product length mm |
|---|---|---|---|---|---|
| 02-171285 | SV5-8-O-0-24D-W-B-S | 1.640 | 41.656 | 3.090 | 78.486 |
| 02-171259 | CV3-8-P-0-060 | 0.870 | 22.098 | 1.430 | 36.322 |
| 02-171258 | CV3-8-P-0-025 | 0.870 | 22.098 | 1.430 | 36.322 |
| 02-171257 | CV3-8-P-0-010 | 0.870 | 22.098 | 1.430 | 36.322 |
| 02-171256 | CV3-8-P-0-004 | 0.870 | 22.098 | 1.430 | 36.322 |

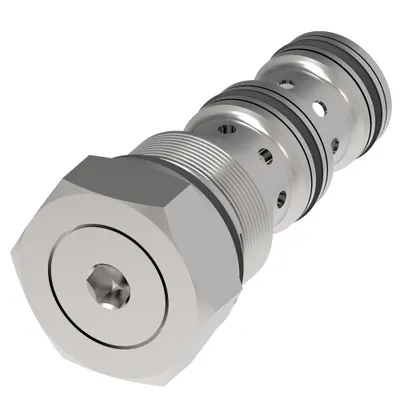

| 02-171239 | DSV2-8-B-0 | 0.875 | 22.225 | 1.940 | 49.276 |

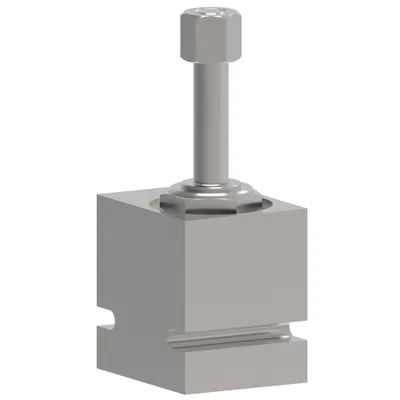

| 02-171133 | SV3-10-4-6T-12D-W-B | 5.750 | 146.050 | 3.000 | 76.200 |

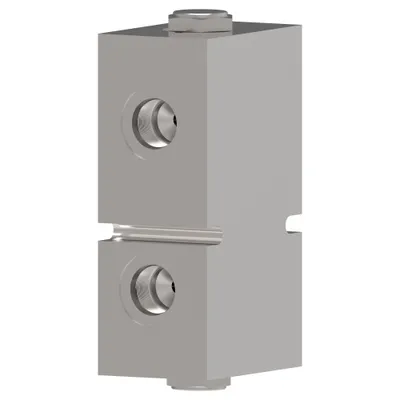

| 02-171121 | — | 2.500 | 63.500 | 5.160 | 131.064 |

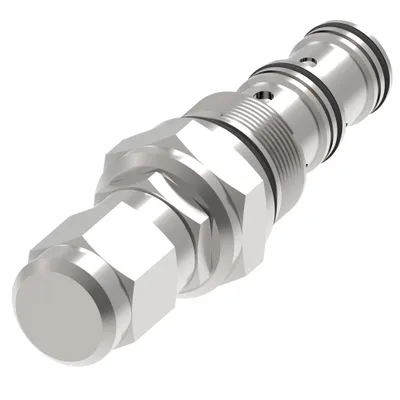

| 02-171107 | PUV3-10-V-C-0-90-30-XXX | 1.000 | 25.400 | 3.620 | 91.948 |

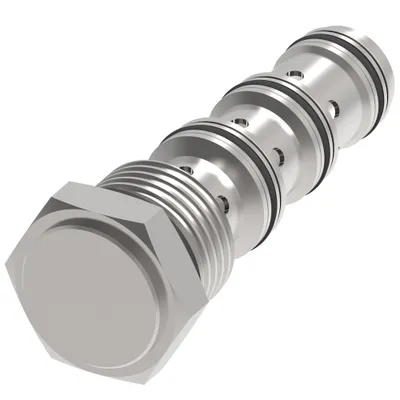

| 02-171104 | FDC1-10-V-0-11 | 1.000 | 25.400 | 2.820 | 71.628 |

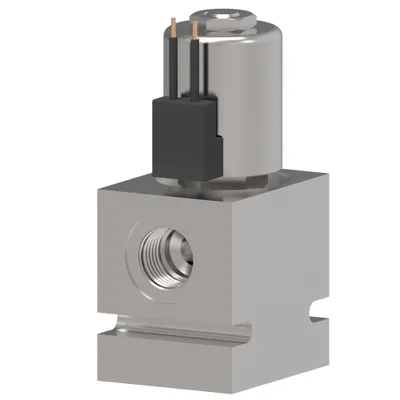

| 02-171071 | SV4-10-C-6T-12D-W-B | 4.750 | 120.650 | 2.500 | 63.500 |

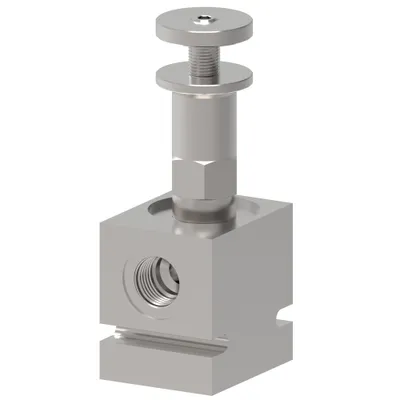

| 02-171019 | PRV2-10-K-A-6T-3-XXX | 6.300 | 160.020 | 3.000 | 76.200 |

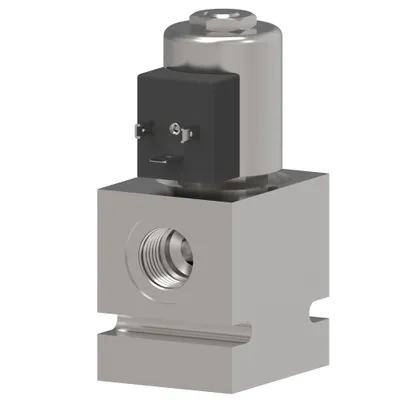

| 02-170988 | SV3-10-C-8H-24D-G | 4.750 | 120.650 | 2.500 | 63.500 |

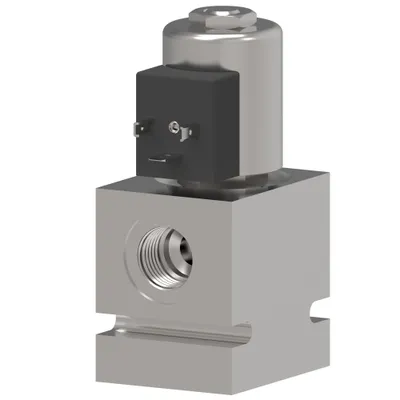

| 02-170958 | SV1-10-4-6H-115A-G | 5.750 | 146.050 | 3.000 | 76.200 |

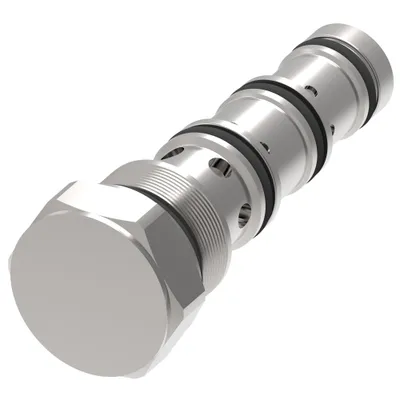

| 02-170837 | DPC-2870 | 2.500 | 63.500 | 4.750 | 120.650 |

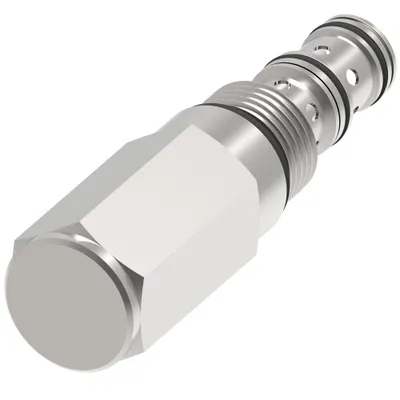

| 02-170818 | PRV2-10-F-0-3-2.5 | 1.000 | 25.400 | 3.890 | 98.806 |

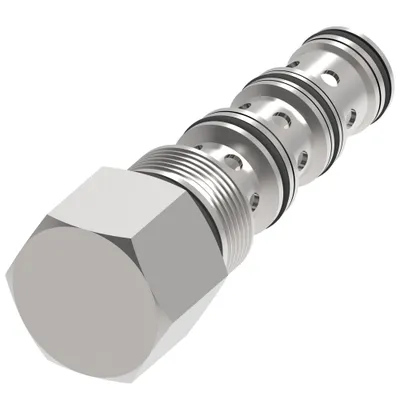

| 02-170809 | PCS4-20-V-0-80 | 7.120 | 180.848 | 1.870 | 47.498 |
| 02-170778 | PRV11-12-C-0-15-XXX | 1.000 | 25.400 | 5.650 | 143.510 |

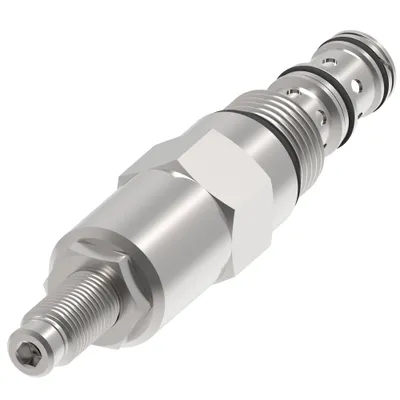

| 02-170776 | PRV11-12-S-0-15-XXX | 1.250 | 31.750 | 5.530 | 140.462 |
| 02-170775 | PRV11-12-S-0-50-XXX | 1.250 | 31.750 | 5.530 | 140.462 |

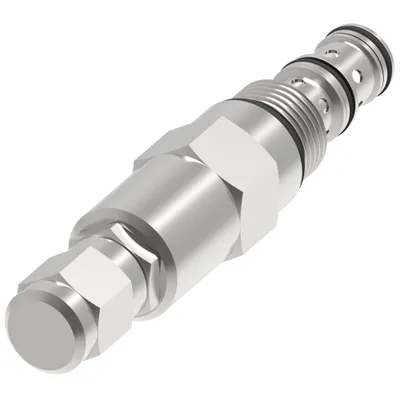

| 02-170768 | PRV2-10-C-0-20-6 | 1.000 | 25.400 | 4.960 | 125.984 |

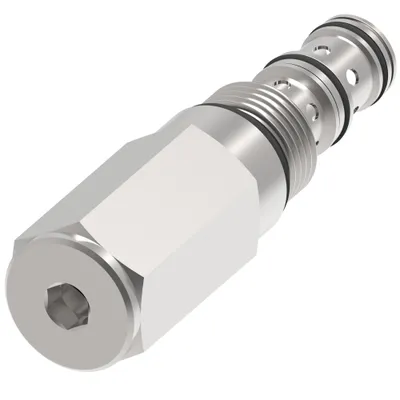

| 02-170761 | PRV2-10-I-0-20-14.25 | 1.000 | 25.400 | 3.890 | 98.806 |
| 02-170751 | PRV2-10-S-0-20-10 | 1.000 | 25.400 | 4.960 | 125.984 |
| 02-170743 | PRV2-10-S-0-35-25 | 1.000 | 25.400 | 4.960 | 125.984 |
Common to all listed parts
| Installation type | Screw-in Cartridge |
