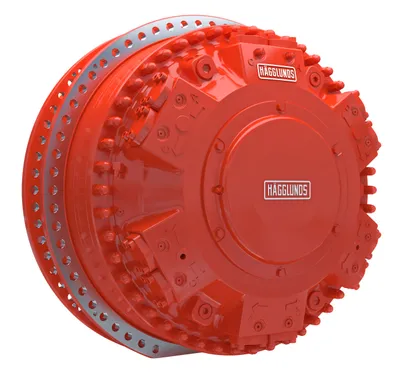

Hägglunds CBm Parts
Compare Hägglunds CBm
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Mounting alternatives, shaft | Motor prepared for tandem kit | Type of seal | Through hole kit | Weight [kg] |
|---|---|---|---|---|---|
| R939068123 | Spline DIN 5480 N | Motor prepared for TA kit | FPM (Viton) | No | 4075 |
| R939068273 | Spline DIN 5480 N | Motor prepared for TA kit | NBR (Nitrile) | No | 4075 |
| R939068129 | Spline DIN 5480 N | Motor prepared for TA kit | NBR (Nitrile) | No | 4075 |
| R939068265 | Spline DIN 5480 N | Motor prepared for TA kit | NBR (Nitrile) | No | 4075 |
| R939068121 | Spline DIN 5480 N | Motor prepared for TA kit | NBR (Nitrile) | No | 4075 |
| R939068259 | Spline DIN 5480 N | Motor not prepared for TA kit | FPM (Viton) | Yes | 4075 |
| R939068115 | Spline DIN 5480 N | Motor not prepared for TA kit | FPM (Viton) | Yes | 4075 |
| R939068255 | Spline DIN 5480 N | Motor not prepared for TA kit | FPM (Viton) | Yes | 4075 |
| R939068111 | Spline DIN 5480 N | Motor not prepared for TA kit | FPM (Viton) | Yes | 4075 |
| R939068271 | Spline DIN 5480 N | Motor not prepared for TA kit | FPM (Viton) | No | 4075 |
| R939068127 | Spline DIN 5480 N | Motor not prepared for TA kit | FPM (Viton) | No | 4075 |
| R939068263 | Spline DIN 5480 N | Motor not prepared for TA kit | FPM (Viton) | No | 4075 |
| R939068119 | Spline DIN 5480 N | Motor not prepared for TA kit | FPM (Viton) | No | 4075 |
| R939068257 | Spline DIN 5480 N | Motor not prepared for TA kit | NBR (Nitrile) | Yes | 4075 |
| R939068113 | Spline DIN 5480 N | Motor not prepared for TA kit | NBR (Nitrile) | Yes | 4075 |
| R939068253 | Spline DIN 5480 N | Motor not prepared for TA kit | NBR (Nitrile) | Yes | 4075 |
| R939068109 | Spline DIN 5480 N | Motor not prepared for TA kit | NBR (Nitrile) | Yes | 4075 |
| R939068269 | Spline DIN 5480 N | Motor not prepared for TA kit | NBR (Nitrile) | No | 4075 |
| R939068125 | Spline DIN 5480 N | Motor not prepared for TA kit | NBR (Nitrile) | No | 4075 |
| R939070072 | Spline DIN 5480 N | Motor not prepared for TA kit | NBR (Nitrile) | No | 4075 |
| R939068261 | Spline DIN 5480 N | Motor not prepared for TA kit | NBR (Nitrile) | No | 4075 |
| R939068117 | Spline DIN 5480 N | Motor not prepared for TA kit | NBR (Nitrile) | No | 4075 |
| R939068276 | Shrink disc coupling Ø 340 mm | Motor prepared for TA kit | FPM (Viton) | No | 4460 |
| R939068132 | Shrink disc coupling Ø 340 mm | Motor prepared for TA kit | FPM (Viton) | No | 4500 |
Common to all listed parts
| Product family | Hägglunds CBm |
| Displacement [cm³/rev] | 88301 |
| Specific Torque [Nm/bar] | 1400 |
| Max speed [rpm] | 48 |
| Max pressure [bar] | 350 |
| Displacement shift | Motor not prepared for displacement shift |
| Frame size | 2000 |
