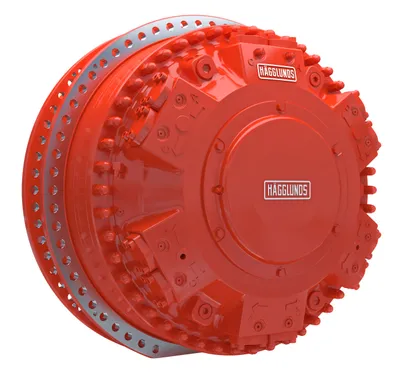

Hägglunds CBm Parts
























Compare Hägglunds CBm
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Displacement [cm³/rev] | Specific Torque [Nm/bar] | Max speed [rpm] | Mounting alternatives, shaft | Weight [kg] |
|---|---|---|---|---|---|
| R939068194 | 126726 | 2000 | 32 | Shrink disc coupling Ø 360 mm | 4620 |
| R939068050 | 126726 | 2000 | 32 | Shrink disc coupling Ø 360 mm | 4500 |
| R939068188 | 126726 | 2000 | 32 | Shrink disc coupling Ø 360 mm | 4620 |
| R939068044 | 126726 | 2000 | 32 | Shrink disc coupling Ø 360 mm | 4500 |
| R939068184 | 126726 | 2000 | 32 | Shrink disc coupling Ø 360 mm | 4620 |
| R939068040 | 126726 | 2000 | 32 | Shrink disc coupling Ø 360 mm | 4500 |
| R939068200 | 126726 | 2000 | 32 | Shrink disc coupling Ø 360 mm | 4620 |
| R939068056 | 126726 | 2000 | 32 | Shrink disc coupling Ø 360 mm | 4500 |
| R939068192 | 126726 | 2000 | 32 | Shrink disc coupling Ø 360 mm | 4620 |
| R939068048 | 126726 | 2000 | 32 | Shrink disc coupling Ø 360 mm | 4500 |
| R939068186 | 126726 | 2000 | 32 | Shrink disc coupling Ø 360 mm | 4620 |
| R939068042 | 126726 | 2000 | 32 | Shrink disc coupling Ø 360 mm | 4500 |
| R939068182 | 126726 | 2000 | 32 | Shrink disc coupling Ø 360 mm | 4620 |
| R939068038 | 126726 | 2000 | 32 | Shrink disc coupling Ø 360 mm | 4500 |
| R939068198 | 126726 | 2000 | 32 | Shrink disc coupling Ø 360 mm | 4620 |
| R939068054 | 126726 | 2000 | 32 | Shrink disc coupling Ø 360 mm | 4500 |
| R939068190 | 126726 | 2000 | 32 | Shrink disc coupling Ø 360 mm | 4620 |
| R939068046 | 126726 | 2000 | 32 | Shrink disc coupling Ø 360 mm | 4500 |
| R939068227 | 113748 | 1800 | 36 | Spline DIN 5480 N | 4075 |
| R939068083 | 113748 | 1800 | 36 | Spline DIN 5480 N | 4075 |
| R939068219 | 113748 | 1800 | 36 | Spline DIN 5480 N | 4075 |
| R939068075 | 113748 | 1800 | 36 | Spline DIN 5480 N | 4075 |
| R939068225 | 113748 | 1800 | 36 | Spline DIN 5480 N | 4075 |
| R939068081 | 113748 | 1800 | 36 | Spline DIN 5480 N | 4075 |
Common to all listed parts
| Product family | Hägglunds CBm |
| Max pressure [bar] | 350 |
| Displacement shift | Motor not prepared for displacement shift |
| Frame size | 2000 |
