Spiral hose and fittings Parts











Compare Spiral hose and fittings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Product height in | Product height mm | Product length in | Product width in | Product width mm |
|---|---|---|---|---|---|

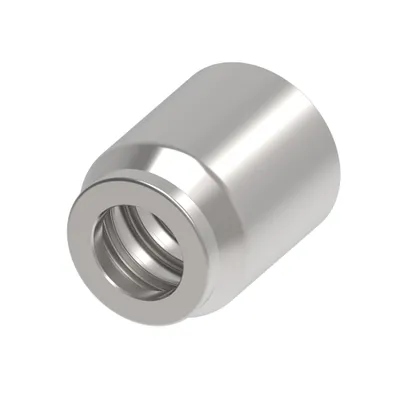

| 00400-10AZ | 1.339 | 34.000 | 1.535 | 1.339 | 34.000 mm |
| 00400-08DZN | 1.141 | 29.000 | 1.456 | 1.141 | 29.000 mm |
| 00400-08DZ | 1.142 | 29.000 | 1.457 | 1.142 | 29.000 mm |
| 00400-08DSV | 1.410 | 35.814 | 1.460 | 1.410 | 35.814 mm |
| 00400-08DSR | 1.142 | 29.000 | 1.457 | 1.142 | 29.000 mm |
| 00400-08AZ | 1.181 | 29.997 | 1.460 | 1.181 | 29.997 mm |
| 00400-06DZN | 1.020 | 25.908 | 1.330 | 1.020 | 25.908 mm |
| 00400-06DZ | 1.024 | 26.000 | 1.330 | 1.024 | 26.000 mm |
| 00400-06DSV | — | — | — | — | — |
| 00400-06AZ | 1.023 | 26.000 | 1.338 | 1.023 | 26.000 mm |

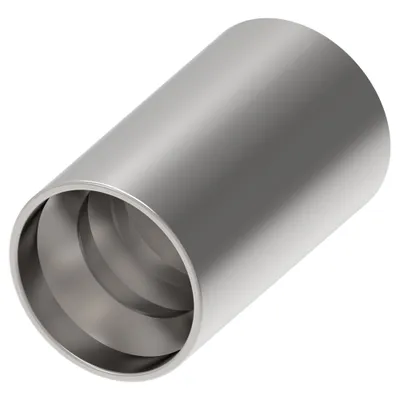

| 00400-04Z | 0.866 | 22.000 | 1.476 | 0.866 | 22.000 mm |
Common to all listed parts
| Angle shape | Straight |
| Construction Style | Crimp |
| Series | Winner 2-Piece |
| Thread sealant | No |
