SIRIUS 3RF30 solid-state relays, 1-pole, 45 mm Parts

Siemens 3RF3025-1AA22 – Semiconductor relay, 1-pole 3RF3 width 45 mm, 25 A 24-230 V / 110-230 V AC screw terminal

Siemens

Semiconductor relay, 1-pole 3RF3 width 45 mm

Siemens 3RF3025-1AA04 – Semiconductor relay, 1-pole 3RF3 width 45 mm, 25 A 48-460 V / 24 V DC screw terminal

Siemens

Semiconductor relay, 1-pole 3RF3 width 45 mm

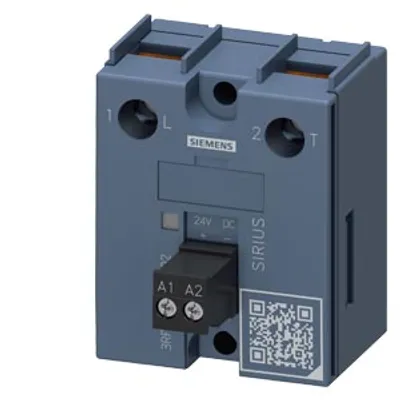

Siemens 3RF3025-1AA02 – Semiconductor relay, 1-pole 3RF3 width 45 mm, 25 A 24-230 V / 24 V DC screw terminal

Siemens

Semiconductor relay, 1-pole 3RF3 width 45 mm

Compare SIRIUS 3RF30 solid-state relays, 1-pole, 45 mm

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	power loss [W] for rated value of the current — without load current share typical	Net Weight	operating voltage — at AC — at 50 Hz rated value	operating voltage — at AC — at 60 Hz rated value	operating range relative to the operating voltage at AC — at 50 Hz
3RF3025-1AA22	3.5 W	0.061 kg	24 ... 230 V	24 ... 230 V	20 ... 253 V
3RF3025-1AA04	0.4 W	0.08 kg	48 ... 460 V	48 ... 460 V	40 ... 506 V
3RF3025-1AA02	0.4 W	0.062 kg	24 ... 230 V	24 ... 230 V	20 ... 253 V

Common to all listed parts

product designation	solid-state relay
product type designation	3RF30
manufacturer's article number — _1 of the accessories that can be ordered	3RF3900-0WA88
product designation — _1 of the accessories that can be ordered	heat conducting foil
product function	zero-point switching
power loss [V∙A] maximum	30 V·A
power loss [W] for rated value of the current — at AC in hot operating state	30 W
power loss [W] for rated value of the current — at AC in hot operating state per pole	30 W
