Line monitoring Parts
Available on requestSiemens 3UG4614-1BR20 – !!! product phase-out !!! the preferred successor is…MPN: 3UG4614-1BR20 · Siemens
Price on request
Request a quote
Available on requestSiemens 3UG4618-2CR20 – !!! product phase-out !!! the preferred successor is…MPN: 3UG4618-2CR20 · Siemens
Price on request
Request a quote
Available on requestSiemens 3UG4618-1CR20 – !!! product phase-out !!! the preferred successor is…MPN: 3UG4618-1CR20 · Siemens
Price on request
Request a quote

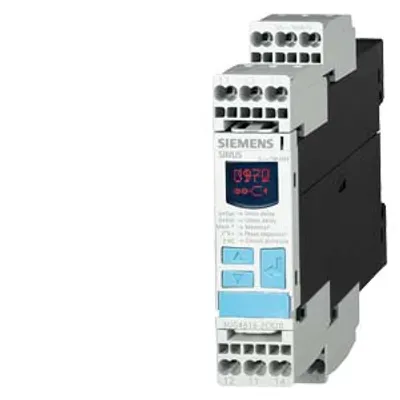

Available on requestSiemens 3UG4617-2CR20 – !!! product phase-out !!! the preferred successor is…MPN: 3UG4617-2CR20 · Siemens
Price on request
Request a quote
Available on requestSiemens 3UG4617-1CR20 – !!! product phase-out !!! the preferred successor is…MPN: 3UG4617-1CR20 · Siemens
Price on request
Request a quote
Available on requestSiemens 3UG4616-2CR20 – !!! product phase-out !!! the preferred successor is…MPN: 3UG4616-2CR20 · Siemens
Price on request
Request a quote

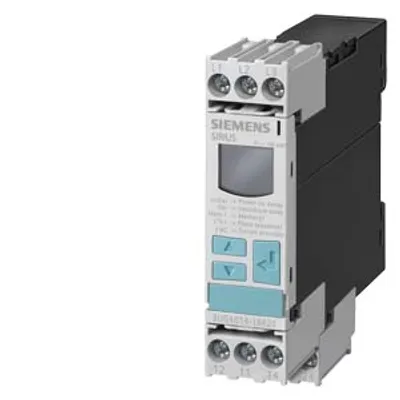

Available on requestSiemens 3UG4616-1CR20 – !!! product phase-out !!! the preferred successor is…MPN: 3UG4616-1CR20 · Siemens
Price on request
Request a quoteCompare Line monitoring
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | design of the product | Net Weight | product function — overvoltage detection | product function — overvoltage detection 3 phase | height |
|---|---|---|---|---|---|
| 3UG4614-1BR20 | 4 functions | 139.58 g | No | No | 92 mm |
| 3UG4618-2CR20 | 5 functions | 0.134 kg | Yes | Yes | 103 mm |
| 3UG4618-1CR20 | 5 functions | 147.58 g | Yes | Yes | 102 mm |
| 3UG4617-2CR20 | 5 functions | 0.124 kg | Yes | Yes | 94 mm |
| 3UG4617-1CR20 | 5 functions | 137.59 g | Yes | Yes | 92 mm |
| 3UG4616-2CR20 | 5 functions | 0.136 kg | Yes | Yes | 103 mm |
| 3UG4616-1CR20 | 5 functions | 152.52 g | Yes | Yes | 102 mm |
Common to all listed parts
| product designation | Network monitoring relay with digital setting |
| product type designation | 3UG4 |
| product function | Phase monitoring relay |
| display version LED | No |
| design of the display | LCD |
| insulation voltage for overvoltage category III according to IEC 60664 — with degree of pollution 3 rated value | 690 V |
| degree of pollution | 3 |
| type of voltage — for monitoring | AC |
