Front connector with single wires Parts
Compare Front connector with single wires
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | wire length | number of channels | ambient temperature — during storage | design of cable | net weight |
|---|---|---|---|---|---|
| 6ES7922-5BG50-0UB0 | 6.5 m | 20 | -30 ... +70 °C | Multi norm braid | 1.55 kg |
| 6ES7922-5BG50-0HC0 | 6.5 m | 40 | -15 ... +60 °C | H05Z-K | 2.77 kg |
| 6ES7922-5BG50-0HB0 | 6.5 m | 20 | -15 ... +60 °C | H05Z-K | 1.55 kg |

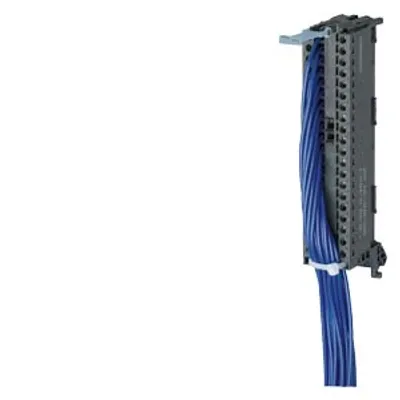

| 6ES7922-5BD20-0UB0 | 3.2 m | 20 | -30 ... +70 °C | Multi norm braid | 0.94 kg |
| 6ES7922-5BD20-0HC0 | 3.2 m | 40 | -15 ... +60 °C | H05Z-K | 1.54 kg |
| 6ES7922-5BD20-0HB0 | 3.2 m | 20 | -15 ... +60 °C | H05Z-K | 0.94 kg |
| 6ES7922-5BD20-0AB0 | 3.2 m | 20 | -30 ... +70 °C | H05V-K | 0.94 kg |
| 6ES7922-5BC50-0HC0 | 2.5 m | 40 | -15 ... +60 °C | H05Z-K | 1.28 kg |
| 6ES7922-5BJ00-0AC0 | 8 m | 40 | -30 ... +70 °C | H05V-K | 3.39 kg |
| 6ES7922-5BJ00-0AB0 | 8 m | 20 | -30 ... +70 °C | H05V-K | 1.86 kg |

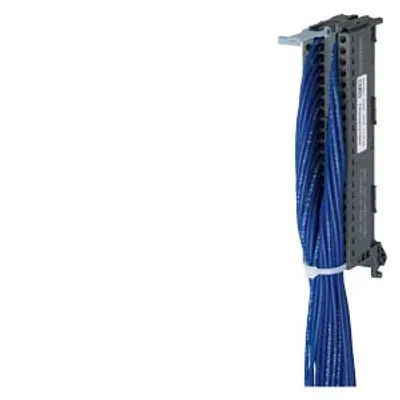

| 6ES7922-5BG50-0UC0 | 6.5 m | 40 | -30 ... +70 °C | Multi norm braid | 2.77 kg |
| 6ES7922-5BF00-0AC0 | 5 m | 40 | -30 ... +70 °C | H05V-K | 2.1 kg |
| 6ES7922-5BF00-0AB0 | 5 m | 20 | -30 ... +70 °C | H05V-K | 1.22 kg |
| 6ES7922-5BD20-0AC0 | 3.2 m | 40 | -30 ... +70 °C | H05V-K | 1.54 kg |
Common to all listed parts
| target system | SIMATIC S7-1500 |
| suitability for use | Digital I/O modules |
| suitability for interaction — input card PLC | Yes |
| suitability for interaction — PLC output card | Yes |
| suitability for use — digital signal transmission | Yes |
| suitability for use — analog signal transmission | No |
| product type designation | Flexible connection |
| product designation | Front connector with single cores |
