PROFIBUS bus cables Parts
Compare PROFIBUS bus cables
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Technical Product Detail Page | wire length | attenuation factor per length — at 38.4 kHz / maximum | attenuation factor per length — at 4 MHz / maximum | attenuation factor per length — at 16 MHz / maximum |
|---|---|---|---|---|---|

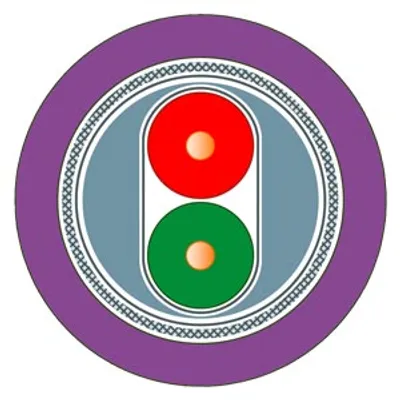

| 6XV1830-1ET10 | https://i.siemens.com/1P6XV1830-1ET10 | 100 m | 0.004 dB/m | 0.022 dB/m | 0.042 dB/m |
| 6XV1830-1EN50 | https://i.siemens.com/1P6XV1830-1EN50 | 50 m | 0.004 dB/m | 0.022 dB/m | 0.042 dB/m |

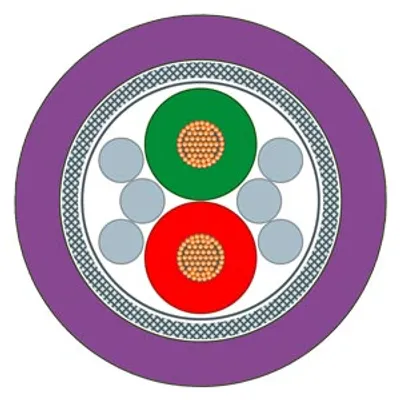

| 6XV1830-0PH10 | https://i.siemens.com/1P6XV1830-0PH10 | sold by the meter | 0.003 dB/m | 0.025 dB/m | 0.049 dB/m |
Common to all listed parts
| attenuation factor per length — at 9.6 kHz / maximum | 0.0025 dB/m |
| impedance — rated value | 150 Ω |
| impedance — at 9.6 kHz | 270 Ω |
| impedance — at 38.4 kHz | 185 Ω |
| impedance — at 3 MHz … 20 MHz | 150 Ω |
| relative symmetrical tolerance — of the characteristic impedance at 9.6 kHz | 10 % |
| relative symmetrical tolerance — of the characteristic impedance at 38.4 kHz | 10 % |
| relative symmetrical tolerance — of the characteristic impedance at 3 MHz … 20 MHz | 10 % |
