SIRIUS 3RF5 solid-state switching devices for switching resistive DC loads Parts

Siemens

Solid-state contactor 3RF5, 1-pole, width 22.5 mm, 16 A

Siemens

Solid-state contactor 3RF5, 1-pole, width 22.5 mm, 16 A

Siemens

Solid-state contactor 3RF5, 1-pole, width 22.5 mm, 16 A

Siemens

Semiconductor relay 3RF5, 1-pole, width 22.5 mm, 24 A

Siemens

Semiconductor relay 3RF5, 1-pole, width 22.5 mm, 18 A

Siemens

Semiconductor relay 3RF5, 1-pole, width 22.5 mm, 24 A

Compare SIRIUS 3RF5 solid-state switching devices for switching resistive DC loads

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Net Weight	operational current rated value maximum	operational current — at 25 °C rated value	operational current — at 40 °C rated value	operational current at DC — rated value
3RF5315-1BA65	0.134 kg	16 A	17 A	16 A	16 A
3RF5315-1BA47	0.133 kg	15 A	16 A	15 A	15 A

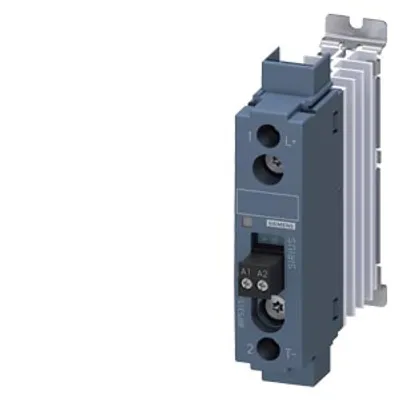

3RF5315-1BA45	0.134 kg	16 A	17 A	16 A	16 A
3RF5125-1BA65	0.065 kg	23 A	24 A	23 A	23 A
3RF5125-1BA47	0.065 kg	17 A	18 A	17 A	17 A

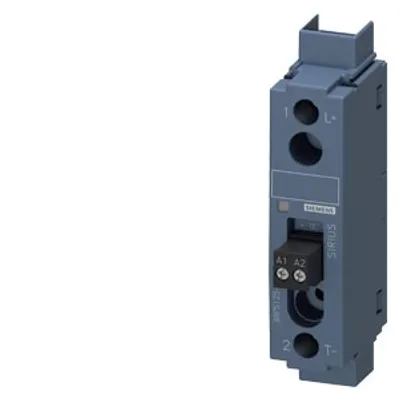

3RF5125-1BA45	0.068 kg	23 A	24 A	23 A	23 A

design of the product	1-pole
product function	instantaneous switching
type of calculation of power loss current-dependent	linear
insulation voltage rated value	1 500 V
degree of pollution	3
impulse withstand voltage (Uimp)	10 kV
protection class IP on the front according to IEC 60529	IP20
shock resistance according to IEC 60068-2-27	15 g / 11 ms
