1-phase, 24 V DC (for S7-300 and ET 200M) Parts

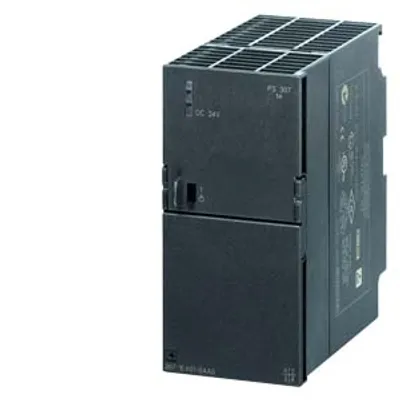

Available on requestSiemens 6ES7307-1EA01-0AA0 – SIMATIC S7-300 Regulated power supply PS307 input: 120/230…MPN: 6ES7307-1EA01-0AA0 · Siemens
Price on request
Request a quote

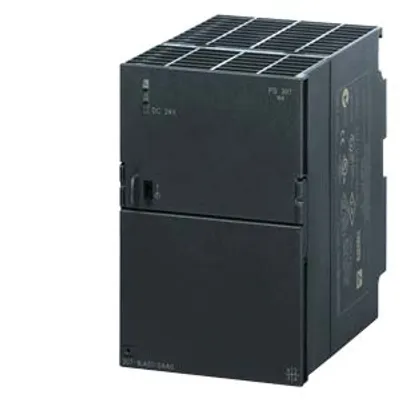

Available on requestSiemens 6ES7307-1KA02-0AA0 – SIMATIC S7-300 Regulated power supply PS307 input: 120/230…MPN: 6ES7307-1KA02-0AA0 · Siemens
Price on request
Request a quote

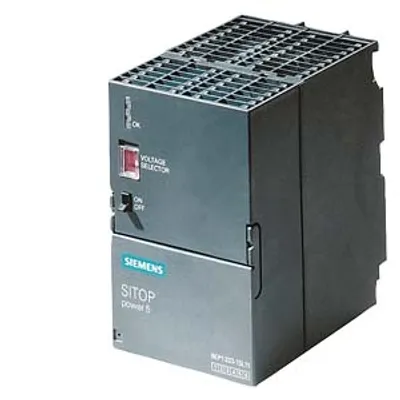

Available on requestSiemens 6ES7305-1BA80-0AA0 – SIMATIC S7-300 with Regulated power supply PS305 input…MPN: 6ES7305-1BA80-0AA0 · Siemens
Price on request
Request a quoteCompare 1-phase, 24 V DC (for S7-300 and ET 200M)
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | type of current supply | I2t value maximum | residual ripple — typical | voltage peak — typical | output current — rated value |
|---|---|---|---|---|---|
| 6ES7307-1EA01-0AA0 | 24 V/5 A | 1.2 A²·s | 10 mV | 20 mV | 5 A |
| 6ES7307-1KA02-0AA0 | 24 V/10 A | 3.3 A²·s | 15 mV | 60 mV | 10 A |
| 6ES7305-1BA80-0AA0 | 24 V/2 A | 5 A²·s | 30 mV | 150 mV | 2 A |
Common to all listed parts
| product designation | Power supply S7-300 |
| voltage curve at output | Controlled, isolated DC voltage |
| product function output voltage controlled | Yes |
| product function output voltage stabilized | Yes |
| output voltage at DC rated value | 24 V |
| output voltage — at output 1 at DC rated value | 24 V |
| output voltage — at output 1 at DC | 24 V |
| output voltage adjustable | No; - |
