Load cell Parts

Showing 1–7 of 7 parts
Siemens 7MH5113-5JD00 – Load cell SIWAREX WL280 RN-S SA 28t C3, strain gauge in Ring Torsion / multi point design, rated load 28t
Siemens
7MH5113-5JD00

Load cell SIWAREX WL280 RN-S SA 28t C3

Siemens 7MH5113-5DD01 – Load cell SIWAREX WL280 RN-S SA 13t C3 Ex, strain gauge in Ring Torsion / multi point design, rated load 13t
Siemens
7MH5113-5DD01

Load cell SIWAREX WL280 RN-S SA 13t C3 Ex

Siemens 7MH5113-5DD00 – Load cell SIWAREX WL280 RN-S SA 13t C3, strain gauge in Ring Torsion / multi point design, rated load 13t
Siemens
7MH5113-5DD00

Load cell SIWAREX WL280 RN-S SA 13t C3

Siemens 7MH5113-5AD01 – Load cell SIWAREX WL280 RN-S SA 10t C3 Ex, strain gauge in Ring Torsion / multi point design, rated load 10t
Siemens
7MH5113-5AD01

Load cell SIWAREX WL280 RN-S SA 10t C3 Ex

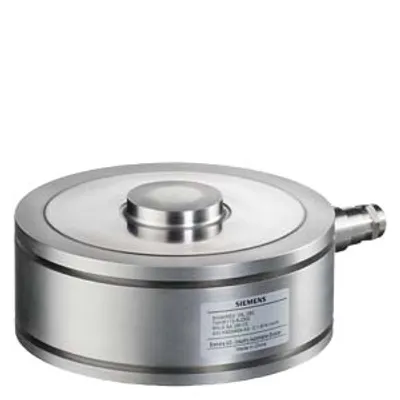

Siemens 7MH5113-5AD00 – Load cell SIWAREX WL280 RN-S SA 10t C3, strain gauge in Ring Torsion / multi point design, rated load 10t
Siemens
7MH5113-5AD00

Load cell SIWAREX WL280 RN-S SA 10t C3

Siemens 7MH5113-4PD01 – Load cell SIWAREX WL280 RN-S SA 5t C3 Ex, strain gauge in Ring Torsion / multi point design, rated load 5t
Siemens
7MH5113-4PD01

Load cell SIWAREX WL280 RN-S SA 5t C3 Ex

Siemens 7MH5113-4PD00-0BA0 – Siwarex WL 280 Load Cell RN-S SA 5t C3 - Rated Load 5t =- Accuracy class C3 according to OIML R60
Siemens
7MH5113-4PD00-0BA0

Siwarex WL 280 Load Cell RN-S SA 5t C3 - Rated Load 5t =…

Compare Load cell

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPNdepthwidthheightdiameternet weight
7MH5113-5JD00120 mm120 mm53 mm120 mm4 kg
7MH5113-5DD0195 mm95 mm35 mm95 mm2.66 kg
7MH5113-5DD0095 mm95 mm35 mm95 mm2.2 kg
7MH5113-5AD0195 mm95 mm35 mm95 mm2.52 kg
7MH5113-5AD0095 mm95 mm35 mm95 mm1.7 kg
7MH5113-4PD0180 mm80 mm30 mm80 mm1.62 kg
7MH5113-4PD00-0BA080 mm80 mm30 mm80 mm1 kg

Common to all listed parts

manufacturer's nameSiemens
product designationWeighing Technology - Load cell
supplier nameSiemens
marketing text / 1 / as sloganThe right load cell for every application
product type designationSIWAREX WL280 load cell
designring torsion / multi-point
materialcorrosion-free steel
design of the productstrain gauge
