SCALANCE X-300 managed Parts

Siemens

SCALANCE X310FE, managed plus IE switch

Siemens

SCALANCE X308-2M TS; managed IE switch, compact

Siemens

SCALANCE XR324-4M PoE; Managed IE switch, 19" rack

Siemens

SCALANCE XR324-4M PoE; Managed IE switch, 19" rack

Siemens

SCALANCE XR324-4M PoE; Managed IE switch, 19" rack

Siemens

SCALANCE XR324-4M PoE TS; Managed IE switch, 19" rack

Siemens

SCALANCE XR324-4M PoE; Managed IE switch, 19" rack

Compare SCALANCE X-300 managed

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	product type designation	number of electrical connections — for network components or terminal equipment	type of voltage / 1 / of the supply voltage — supply voltage / 1 / rated value	type of voltage / 1 / of the supply voltage — supply voltage / 1 / voltage range	type of voltage / 1 / of the supply voltage — consumed current / 1 / maximum

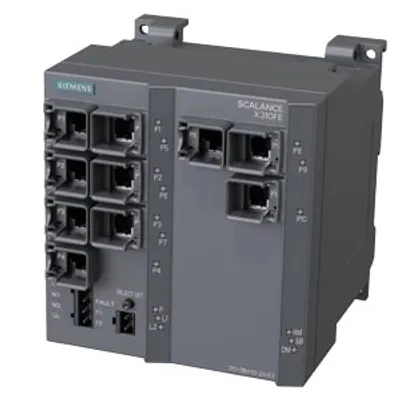

6GK5310-0BA10-2AA3	X310FE	10	24 V	18 ... 32	0.4 A

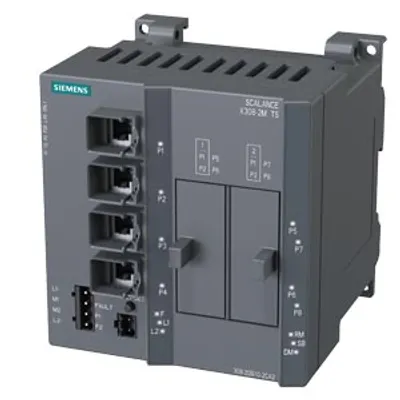

6GK5308-2GG10-2CA2	X308-2M TS	4	12 V	20 ... 30	0.7 A
6GK5324-4QG10-3HR2	XR324-4M PoE	16; RJ45	230 V	85 ... 264	1 A

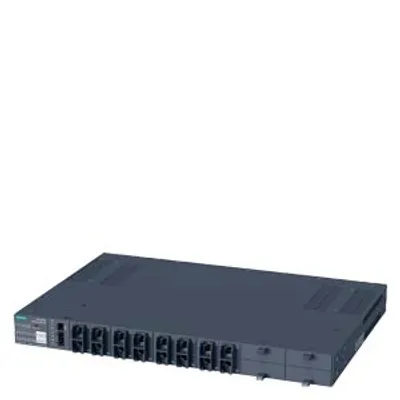

6GK5324-4QG10-3AR2	XR324-4M PoE	16; RJ45	230 V	85 ... 264	1 A

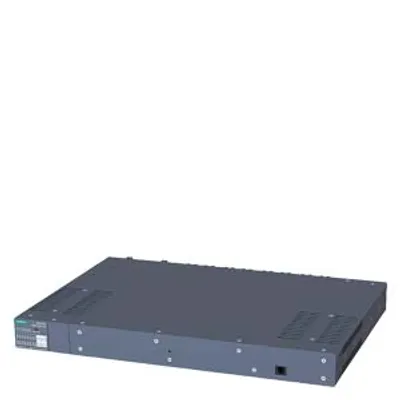

6GK5324-4QG10-1HR2	XR324-4M PoE	16; RJ45	24 V	19.2 ... 28.8	4.2 A

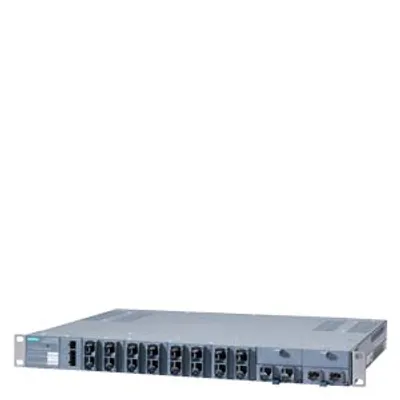

6GK5324-4QG10-1CR2	XR324-4M PoE TS	16; RJ45	24 V	19.2 ... 28.8	4.2 A
6GK5324-4QG10-1AR2	XR324-4M PoE	16; RJ45	24 V	19.2 ... 28.8	4.2 A

number of electrical connections — for signaling contact	1
number of electrical connections — for power supply	1
type of electrical connection — for signaling contact	2-pole terminal block
design of the removable storage — C-PLUG	Yes
operating voltage / of the signaling contacts — at DC / rated value	24 V
operational current / of the signaling contacts — at DC / maximum	0.1 A
type of voltage supply / redundant power supply unit	No
type of voltage / 1 / of the supply voltage — product component / 1 / fusing at power supply input	Yes
