SIRIUS 3RF31 solid-state relays, 1-pole, 22.5 mm Parts
Compare SIRIUS 3RF31 solid-state relays, 1-pole, 22.5 mm
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | power loss [V∙A] maximum | power loss [W] for rated value of the current — at AC in hot operating state | power loss [W] for rated value of the current — at AC in hot operating state per pole | Net Weight | operational current rated value maximum |
|---|---|---|---|---|---|
| 3RF3150-1AA24 | 51 V·A | 51 W | 51 W | 0.054 kg | 50 A |
| 3RF3150-1AA22 | 51 V·A | 51 W | 51 W | 0.08 kg | 50 A |

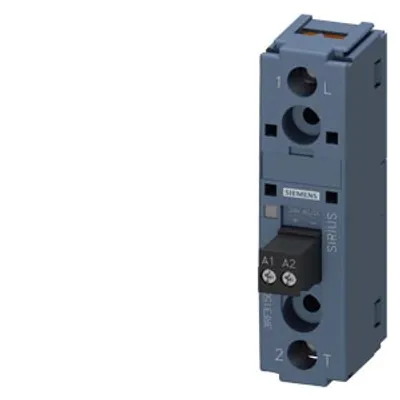

| 3RF3150-1AA14 | 51 V·A | 51 W | 51 W | 0.08 kg | 50 A |
| 3RF3190-3AA04 | 83 V·A | 83 W | 83 W | 0.052 kg | 80 A |
| 3RF3190-2AA26 | 19 V·A | 19 W | 19 W | 0.08 kg | 20 A |
| 3RF3190-2AA24 | 19 V·A | 19 W | 19 W | 0.08 kg | 20 A |

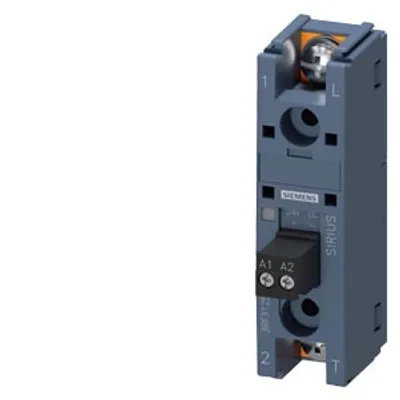

| 3RF3125-3AA02 | 30 V·A | 30 W | 30 W | 0.051 kg | 25 A |
| 3RF3125-2AA45 | 22 V·A | 22 W | 22 W | 0.08 kg | 20 A |

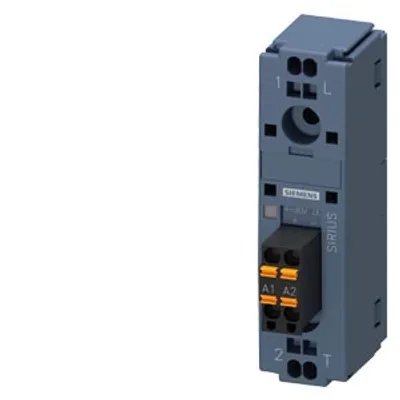

| 3RF3125-2AA42 | 22 V·A | 22 W | 22 W | 0.08 kg | 20 A |
| 3RF3125-2AA24 | 22 V·A | 22 W | 22 W | 0.05 kg | 20 A |
| 3RF3125-2AA22 | 22 V·A | 22 W | 22 W | 0.08 kg | 20 A |
| 3RF3125-2AA04 | 22 V·A | 22 W | 22 W | 0.08 kg | 20 A |

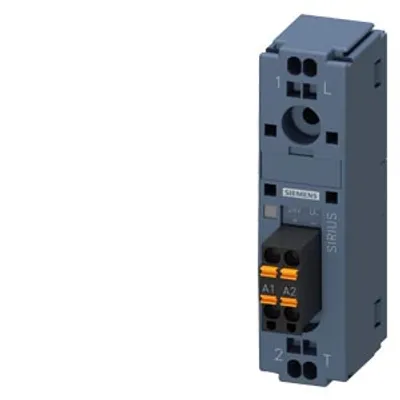

| 3RF3125-2AA02 | 22 V·A | 22 W | 22 W | 0.051 kg | 20 A |
| 3RF3125-1BA04 | 30 V·A | 19 W | 19 W | 0.08 kg | 25 A |
| 3RF3125-1AA45 | 30 V·A | 30 W | 30 W | 0.08 kg | 25 A |
| 3RF3125-1AA42 | 30 V·A | 30 W | 30 W | 0.053 kg | 25 A |
| 3RF3125-1AA24 | 30 V·A | 30 W | 30 W | 0.052 kg | 25 A |
| 3RF3125-1AA22 | 30 V·A | 30 W | 30 W | 0.08 kg | 25 A |
Common to all listed parts
| product designation | solid-state relay |
| product type designation | 3RF31 |
| type of calculation of power loss current-dependent | linear |
| insulation voltage rated value | 600 V |
| surge voltage resistance of main circuit rated value | 6 kV |
| shock resistance according to IEC 60068-2-27 | 15 g / 11 ms |
| vibration resistance according to IEC 60068-2-6 | 2 g |
| reference code according to IEC 81346-2 | Q |
