SIPLUS CPU 1510SP-1 PN Parts
Compare SIPLUS CPU 1510SP-1 PN
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | based on | Mains buffering — Mains/voltage failure stored energy time | Current consumption (rated value) | Current consumption, max. | Weight, approx. |
|---|---|---|---|---|---|

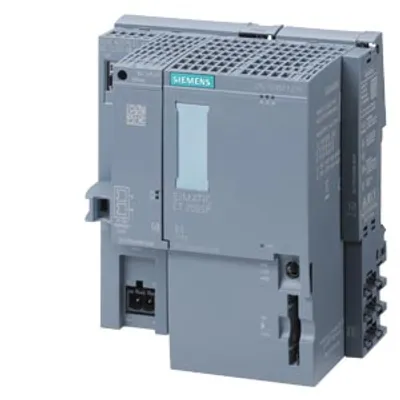

| 6AG1510-1DK03-7AB0 | 6ES7510-1DK03-0AB0 | 10 ms | 0.51 A | 0.7 A | 415 g |

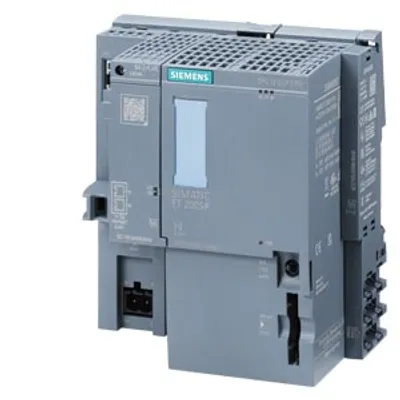

| 6AG1510-1DK03-2AB0 | 6ES7510-1DK03-0AB0 | 10 ms | 0.48 A | 0.7 A | 265 g |

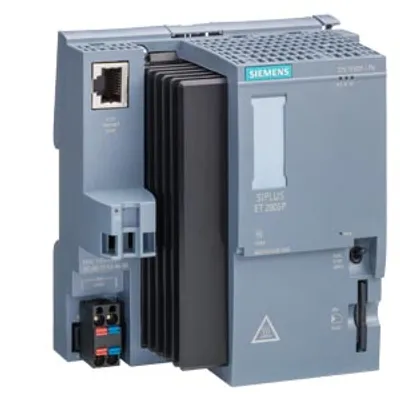

| 6AG1510-1DJ01-7AB0 | 6ES7510-1DJ01-0AB0 | 5 ms | 0.6 A | 0.9 A | 470 g |
Common to all listed parts
| Product type designation | CPU 1510SP-1 PN |
| Product function — I&M data | Yes; I&M0 to I&M3 |
| Product function — Module swapping during operation (hot swapping) | Yes; Multi-hot swapping |
| Engineering with — STEP 7 TIA Portal configurable/integrated from version | see entry ID: 109746275 |
| via dataset | Yes |
| Mode selector switch | 1 |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
