Speed monitoring Parts



Compare Speed monitoring
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Net Weight | product function — adjustable open/closed-circuit current principle | suitability for use safety-related circuits | type of electrical connection | type of electrical connection — for auxiliary and control circuit |
|---|---|---|---|---|---|

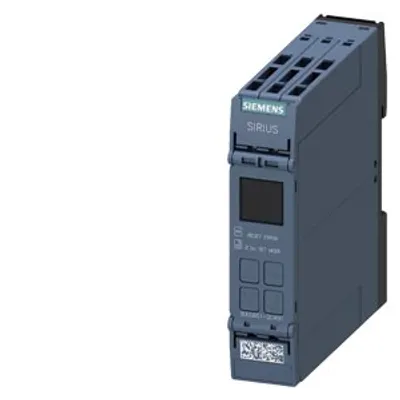

| 3UG5651-2CW31 | 0.157 kg | No | Yes | spring-loaded terminal (push-in) | spring-loaded terminals (push-in) |

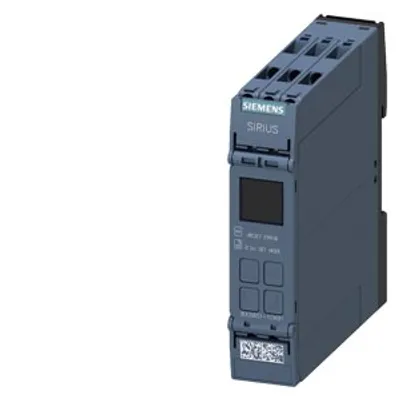

| 3UG5651-1CW31 | 0.167 kg | No | Yes | screw terminal | screw-type terminals |

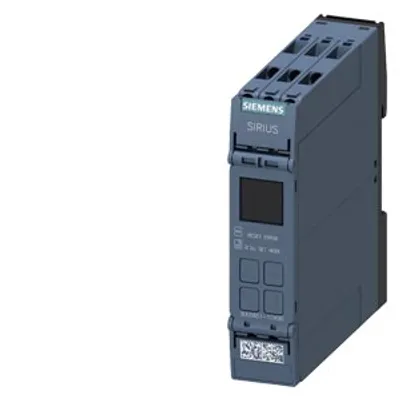

| 3UG5651-1CW30 | 0.162 kg | Yes | No | screw terminal | screw-type terminals |
Common to all listed parts
| product designation | Speed monitoring relay with digital setting |
| product type designation | 3UG5 |
| product function | RPM monitoring relay |
| design of the display | LCD |
| Apparent power consumption at DC — at 24 V maximum | 4.2 V·A |
| apparent power consumption at AC — at 24 V maximum | 5.8 V·A |
| apparent power consumption at AC — at 240 V maximum | 8 V·A |
| insulation voltage — rated value | 690 V |
