Current, active current, voltage, power factor and power monitoring Parts

Showing 1–4 of 4 parts

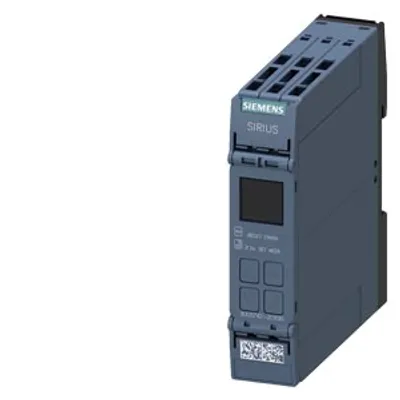

Siemens 3UG5742-2CW30 – Digital monitoring relay current, active current, voltage
Siemens
3UG5742-2CW30

Digital monitoring relay current, active current, voltage

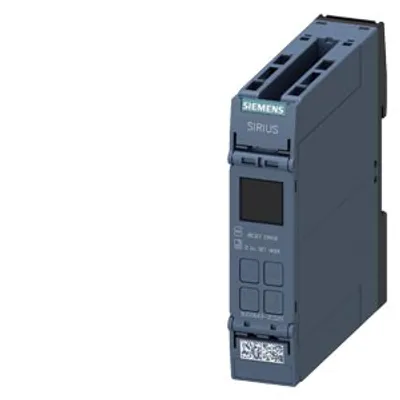

Siemens 3UG5643-2CS20 – Digital monitoring relay current, active current, voltage
Siemens
3UG5643-2CS20

Digital monitoring relay current, active current, voltage

Siemens 3UG5643-1CS20 – Digital monitoring relay current, active current, voltage
Siemens
3UG5643-1CS20

Digital monitoring relay current, active current, voltage

Siemens 3UG5642-2CW30 – Digital monitoring relay current, active current, voltage
Siemens
3UG5642-2CW30

Digital monitoring relay current, active current, voltage

Compare Current, active current, voltage, power factor and power monitoring

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPNpower loss [W] maximumpower loss [V∙A] maximumsurge voltage resistance rated valueNet Weighttype of voltage of the control supply voltage
3UG5742-2CW302.2 W5.2 V·A4 kV0.153 kgAC/DC
3UG5643-2CS202 W5.1 V·A4 kV0.146 kgAC
3UG5643-1CS202 W5.1 V·A4 kV0.155 kgAC
3UG5642-2CW302 W5 V·A6 kV0.149 kgAC/DC

Common to all listed parts

product designationNetwork monitoring relay with digital setting
product type designation3UG5
product functiondigitally adjustable monitoring relay for electrical variables
design of the displayLCD
insulation voltage for overvoltage category III according to IEC 60664 — with degree of pollution 2 rated value690 V
insulation voltage for overvoltage category III according to IEC 60664 — with degree of pollution 3 rated value690 V
degree of pollution3
shock resistance according to IEC 60068-2-27sinusoidal half-wave 15 g / 11 ms
