Line monitoring Parts















Compare Line monitoring
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | display version LED | design of the display | power loss [W] maximum | Net Weight | number of CO contacts — delayed switching |
|---|---|---|---|---|---|

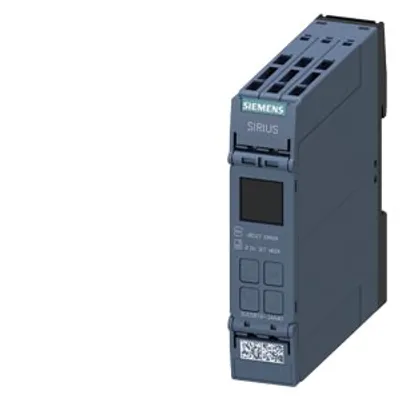

| 3UG5816-2AA40 | No | LCD | 1 W | 0.144 kg | 1 |

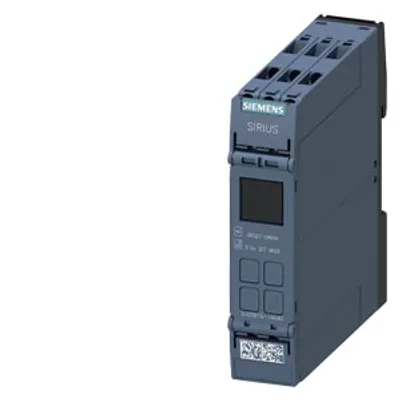

| 3UG5816-1AA40 | No | LCD | 1 W | 0.153 kg | 1 |

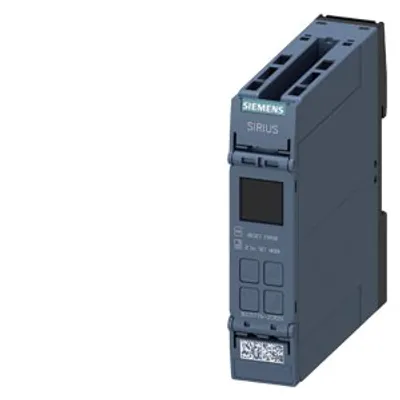

| 3UG5716-2CR20 | No | LCD | — | 0.143 kg | 2 |
| 3UG5716-1CR20 | No | LCD | — | 0.154 kg | 2 |
| 3UG5618-1CR20 | No | LCD | 2 W | 0.152 kg | 2 |
| 3UG5616-2CR20 | No | LCD | 2 W | 0.141 kg | 2 |
| 3UG5616-1CR20 | No | LCD | 2 W | 153.46 g | 2 |

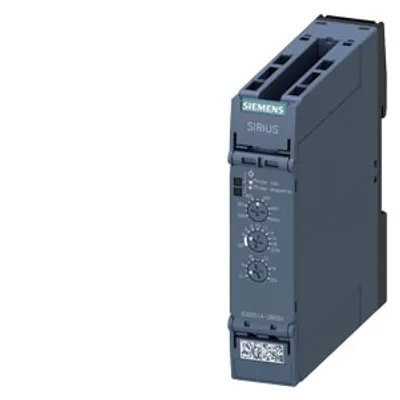

| 3UG5514-2BR20 | Yes | LED | 1.8 W | 138.46 g | 2 |
| 3UG5514-1BR20 | Yes | LED | 1.8 W | 146.46 g | 2 |
| 3UG5512-1AR21 | Yes | LED | 1.8 W | 0.14 kg | 0 |
| 3UG5512-1AR20 | Yes | LED | 1.8 W | 0.137 kg | 0 |
| 3UG5511-2BR20 | Yes | LED | 1.8 W | 0.138 kg | 0 |
| 3UG5511-2AR20 | Yes | LED | 1.8 W | 0.128 kg | 0 |
| 3UG5511-1BR20 | Yes | LED | 1.8 W | 0.145 kg | 0 |

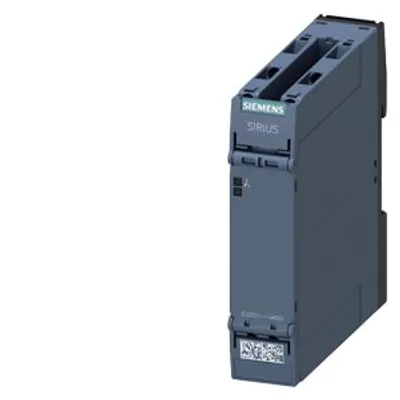

| 3UG5511-1AR20 | Yes | LED | 1.8 W | 0.137 kg | 0 |
Common to all listed parts
| product type designation | 3UG5 |
| product function | line monitoring |
| insulation voltage for overvoltage category III according to IEC 60664 — with degree of pollution 2 rated value | 690 V |
| insulation voltage for overvoltage category III according to IEC 60664 — with degree of pollution 3 rated value | 690 V |
| degree of pollution | 3 |
| type of voltage — for monitoring | AC |
| type of voltage — of the operating voltage for actuation | AC/DC |
| surge voltage resistance rated value | 6 kV |
