SIRIUS 3RA24 contactor assemblies for star-delta (wye-delta) starting, up to 90 kW Parts
Available on requestSiemens 3RA2426-8XF32-1AG2 – Contactor assembly for star-delta (wye-delta) start AC-3MPN: 3RA2426-8XF32-1AG2 · Siemens
Price on request
Request a quote

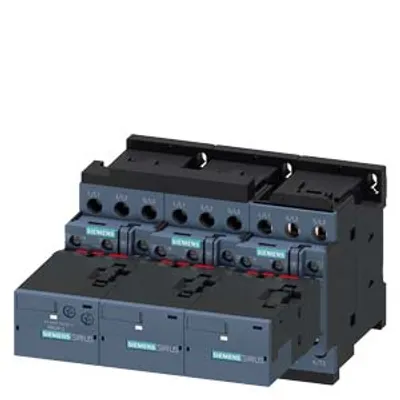

Available on requestSiemens 3RA2426-8XF32-1AC2 – Contactor assembly for star-delta (wye-delta) start AC-3MPN: 3RA2426-8XF32-1AC2 · Siemens
Price on request
Request a quote
Available on requestSiemens 3RA2417-8XF31-2BB4 – Contactor assembly for star-delta (wye-delta) start AC-3MPN: 3RA2417-8XF31-2BB4 · Siemens
Price on request
Request a quote
Available on requestSiemens 3RA2417-8XF31-2AP0 – Contactor assembly for star-delta (wye-delta) start AC-3MPN: 3RA2417-8XF31-2AP0 · Siemens
Price on request
Request a quote
Available on requestSiemens 3RA2417-8XF31-2AF0 – Contactor assembly for star-delta (wye-delta) start AC-3MPN: 3RA2417-8XF31-2AF0 · Siemens
Price on request
Request a quote
Available on requestSiemens 3RA2417-8XF31-2AB0 – Contactor assembly for star-delta (wye-delta) start AC-3MPN: 3RA2417-8XF31-2AB0 · Siemens
Price on request
Request a quote
Available on requestSiemens 3RA2417-8XF31-1BB4 – Contactor assembly for star-delta (wye-delta) start AC-3MPN: 3RA2417-8XF31-1BB4 · Siemens
Price on request
Request a quote
Available on requestSiemens 3RA2445-8XF32-1NB3 – Contactor assembly for star-delta (wye-delta) start AC-3MPN: 3RA2445-8XF32-1NB3 · Siemens
Price on request
Request a quote
Available on requestSiemens 3RA2445-8XF32-1AP0 – Contactor assembly for star-delta (wye-delta) start AC-3MPN: 3RA2445-8XF32-1AP0 · Siemens
Price on request
Request a quote
Available on requestSiemens 3RA2445-8XF32-1AL2 – Contactor assembly for star-delta (wye-delta) start AC-3MPN: 3RA2445-8XF32-1AL2 · Siemens
Price on request
Request a quote

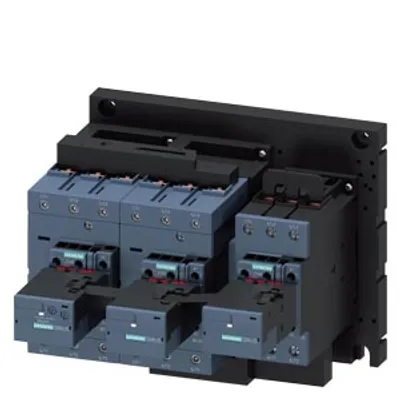

Available on requestSiemens 3RA2445-8XF32-1AG2 – Contactor assembly for star-delta (wye-delta) start AC-3MPN: 3RA2445-8XF32-1AG2 · Siemens
Price on request
Request a quote
Available on requestSiemens 3RA2445-8XF32-1AC2 – Contactor assembly for star-delta (wye-delta) start AC-3MPN: 3RA2445-8XF32-1AC2 · Siemens
Price on request
Request a quote
Available on requestSiemens 3RA2434-8XF32-1AG2 – Contactor assembly for star-delta (wye-delta) start AC-3MPN: 3RA2434-8XF32-1AG2 · Siemens
Price on request
Request a quote
Available on requestSiemens 3RA2434-8XF32-1AC2 – Contactor assembly for star-delta (wye-delta) start AC-3MPN: 3RA2434-8XF32-1AC2 · Siemens
Price on request
Request a quote
Available on requestSiemens 3RA2426-8XF32-2BB4 – Contactor assembly for star-delta (wye-delta) start AC-3MPN: 3RA2426-8XF32-2BB4 · Siemens
Price on request
Request a quote
Available on requestSiemens 3RA2423-8XF32-2BB4 – Contactor assembly for star-delta (wye-delta) start AC-3MPN: 3RA2423-8XF32-2BB4 · Siemens
Price on request
Request a quote

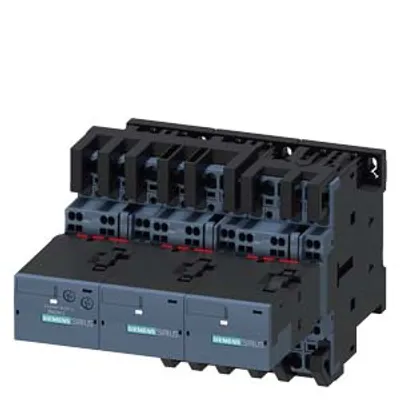

Available on requestSiemens 3RA2423-8XF32-2AL2 – Contactor assembly for star-delta (wye-delta) start AC-3MPN: 3RA2423-8XF32-2AL2 · Siemens
Price on request
Request a quote
Available on requestSiemens 3RA2423-8XF32-2AG2 – Contactor assembly for star-delta (wye-delta) start AC-3MPN: 3RA2423-8XF32-2AG2 · Siemens
Price on request
Request a quote

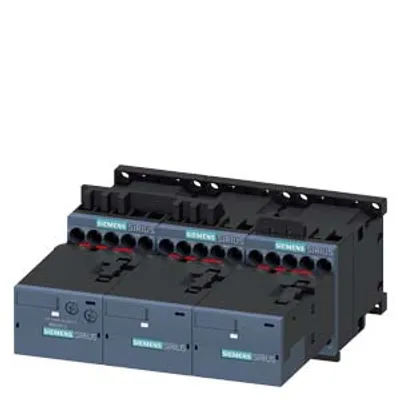

Available on requestSiemens 3RA2416-8XF31-1AP6 – Contactor assembly for star-delta (wye-delta) start AC-3MPN: 3RA2416-8XF31-1AP6 · Siemens
Price on request
Request a quote
Available on requestSiemens 3RA2416-8XF31-1AP0 – Contactor assembly for star-delta (wye-delta) start AC-3MPN: 3RA2416-8XF31-1AP0 · Siemens
Price on request
Request a quote
Available on requestSiemens 3RA2416-8XF31-1AF0 – Contactor assembly for star-delta (wye-delta) start AC-3MPN: 3RA2416-8XF31-1AF0 · Siemens
Price on request
Request a quote
Available on requestSiemens 3RA2416-8XF31-1AB0 – Contactor assembly for star-delta (wye-delta) start AC-3MPN: 3RA2416-8XF31-1AB0 · Siemens
Price on request
Request a quoteCompare SIRIUS 3RA24 contactor assemblies for star-delta (wye-delta) starting, up to 90 kW
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | manufacturer's article number — 1 of the supplied contactor | manufacturer's article number — 2 of the supplied contactor | manufacturer's article number — 3 of the supplied contactor | Net Weight | apparent holding power of magnet coil at AC — at 50 Hz |
|---|---|---|---|---|---|
| 3RA2426-8XF32-1AG2 | 3RT2027-1AG20 | 3RT2027-1AG20 | 3RT2026-1AG20 | 1.857 kg | 23 V·A |
| 3RA2426-8XF32-1AC2 | 3RT2027-1AC20 | 3RT2027-1AC20 | 3RT2026-1AC20 | 1.836 kg | 23 V·A |
| 3RA2417-8XF31-2BB4 | 3RT2018-2BB41 | 3RT2018-2BB41 | 3RT2016-2BB41 | 1.549 kg | — |
| 3RA2417-8XF31-2AP0 | 3RT2018-2AP01 | 3RT2018-2AP01 | 3RT2016-2AP01 | 1.409 kg | 13.4 V·A |
| 3RA2417-8XF31-2AF0 | 3RT2018-2AF01 | 3RT2018-2AF01 | 3RT2016-2AF01 | 1.349 kg | 13.4 V·A |
| 3RA2417-8XF31-2AB0 | 3RT2018-2AB01 | 3RT2018-2AB01 | 3RT2016-2AB01 | 1.363 kg | 13.4 V·A |
| 3RA2417-8XF31-1BB4 | 3RT2018-1BB41 | 3RT2018-1BB41 | 3RT2016-1BB41 | 1.053 kg | — |
| 3RA2445-8XF32-1NB3 | 3RT2045-1NB30 | 3RT2045-1NB30 | 3RT2036-1NB30 | 5.027 kg | 8.2 V·A |
| 3RA2445-8XF32-1AP0 | 3RT2045-1AP00 | 3RT2045-1AP00 | 3RT2036-1AP00 | 4.569 kg | 40 V·A |
| 3RA2445-8XF32-1AL2 | 3RT2045-1AL20 | 3RT2045-1AL20 | 3RT2036-1AL20 | 5.516 kg | 52 V·A |
| 3RA2445-8XF32-1AG2 | 3RT2045-1AG20 | 3RT2045-1AG20 | 3RT2036-1AG20 | 4.671 kg | 52 V·A |
| 3RA2445-8XF32-1AC2 | 3RT2045-1AC20 | 3RT2045-1AC20 | 3RT2036-1AC20 | 4.679 kg | 52 V·A |
| 3RA2434-8XF32-1AG2 | 3RT2035-1AG20 | 3RT2035-1AG20 | 3RT2026-1AG20 | 2.836 kg | 36.4 V·A |
| 3RA2434-8XF32-1AC2 | 3RT2035-1AC20 | 3RT2035-1AC20 | 3RT2026-1AC20 | 2.81 kg | 36.4 V·A |
| 3RA2426-8XF32-2BB4 | 3RT2027-2BB40 | 3RT2027-2BB40 | 3RT2026-2BB40 | 2.566 kg | — |
| 3RA2423-8XF32-2BB4 | 3RT2024-2BB40 | 3RT2024-2BB40 | 3RT2024-2BB40 | 2.509 kg | — |
| 3RA2423-8XF32-2AL2 | 3RT2024-2AL20 | 3RT2024-2AL20 | 3RT2024-2AL20 | 1.994 kg | 18.8 V·A |
| 3RA2423-8XF32-2AG2 | 3RT2024-2AG20 | 3RT2024-2AG20 | 3RT2024-2AG20 | 1.991 kg | 18.8 V·A |
| 3RA2416-8XF31-1AP6 | 3RT2017-1AP61 | 3RT2017-1AP61 | 3RT2015-1AP61 | 0.868 kg | 11.6 V·A |
| 3RA2416-8XF31-1AP0 | 3RT2017-1AP01 | 3RT2017-1AP01 | 3RT2015-1AP01 | 0.933 kg | 13.4 V·A |
| 3RA2416-8XF31-1AF0 | 3RT2017-1AF01 | 3RT2017-1AF01 | 3RT2015-1AF01 | 0.913 kg | 13.4 V·A |
| 3RA2416-8XF31-1AB0 | 3RT2017-1AB01 | 3RT2017-1AB01 | 3RT2015-1AB01 | 0.881 kg | 13.4 V·A |
Common to all listed parts
| product designation | Contactor assembly for star-delta (wye-delta) start |
| product type designation | 3RA24 |
| manufacturer's article number — of the supplied function module for wye-delta circuits | 3RA2816-0EW20 |
| product extension auxiliary switch | No |
| mechanical service life (operating cycles) — of contactor typical | 10 000 000 |
| mechanical service life (operating cycles) — of the contactor with added auxiliary switch block typical | 10 000 000 |
| reference code according to IEC 81346-2 | Q |
| installation altitude at height above sea level maximum | 2 000 m |
