SIPLUS SM 1223 digital input/output modules Parts
Compare SIPLUS SM 1223 digital input/output modules
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Product type designation | based on | from backplane bus 5 V DC, max. | Power loss, typ. | Number of digital inputs |
|---|---|---|---|---|---|

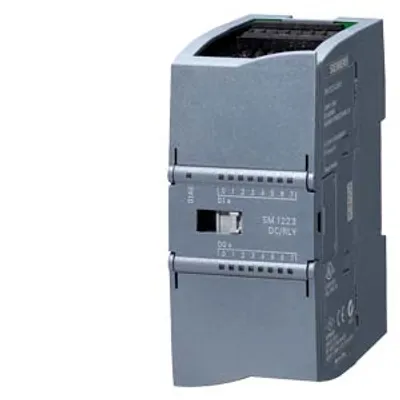

| 6AG1223-1QH32-4XB0 | SM 1223, DI 8x120/230 V AC, DQ 8x relay | 6ES7223-1QH32-0XB0 | 120 mA | 7.5 W | 8 |
| 6AG1223-1QH32-2XB0 | SM 1223, DI 8x120/230 V AC, DQ 8x relay | 6ES7223-1QH32-0XB0 | 120 mA | 7.5 W | 8 |

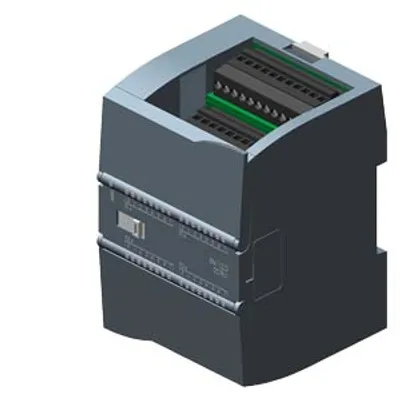

| 6AG1223-1PL32-4XB0 | SM 1223, DI 16x24 V DC, DQ 16x relay | 6ES7223-1PL32-0XB0 | 180 mA | 10 W | 16 |
| 6AG1223-1PL32-2XB0 | SM 1223, DI 16x24 V DC, DQ 16x relay | 6ES7223-1PL32-0XB0 | 180 mA | 10 W | 16 |
Common to all listed parts
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 20.4 V |
| permissible range, upper limit (DC) | 28.8 V |
| Power supply to the transmitters — present | Yes |
| Input characteristic curve in accordance with IEC 61131, type 1 | Yes |
| Input current — for signal "0", max. (permissible quiescent current) | 1 mA |
| Input current — for signal "1", min. | 2.5 mA |
| Cable length — shielded, max. | 500 m |
