Instantaneous Parts
Compare Instantaneous
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | design of the product | insulation voltage with degree of pollution 3 at AC rated value | Net Weight | number of NC contacts for auxiliary contacts — instantaneous contact | number of NO contacts for auxiliary contacts — instantaneous contact |
|---|---|---|---|---|---|

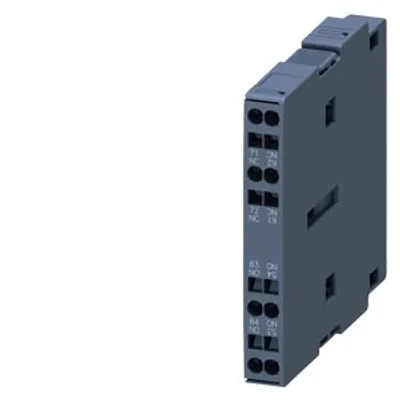

| 3RH1921-2JE11 | second can be mounted laterally | 500 V | 49.58 g | 1 | 1 |
| 3RH1921-2DE11 | first laterally mountable | 500 V | 49.58 g | 1 | 1 |
| 3RH1921-2DA11 | — | 500 V | 51.58 g | — | — |

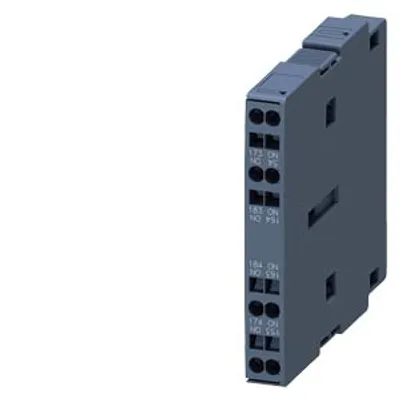

| 3RH1921-2KA20 | second can be mounted laterally | 500 V | 49.58 g | 0 | 2 |
| 3RH1921-2KA02 | second can be mounted laterally | 500 V | 50.58 g | 2 | 0 |

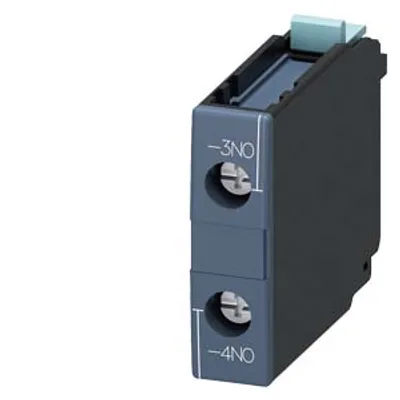

| 3RH1921-1CA10 | for snapping onto the front | 690 V | 18.609 g | 0 | 1 |
| 3RH1921-1CA01 | for snapping onto the front | 690 V | 17.609 g | 1 | 0 |
Common to all listed parts
| surge voltage resistance rated value | 6 kV |
| protection class IP on the front | IP20 |
| number of CO contacts of auxiliary contacts instantaneous contact | 0 |
| contact reliability of auxiliary contacts | 1 faulty switching per 100 million (17 V, 1 mA) |
| fastening method | snap-on mounting |
| width | 10 mm |
| AWG number as coded connectable conductor cross section for auxiliary contacts | 20 ... 14 |
