Copper Parts
Compare Copper
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | operational current rated value | height | width | depth | Net Weight |
|---|---|---|---|---|---|
| 8LK6036-7AA55 | 2 500 A | 696 mm | 80 mm | 171 mm | 12.209 kg |
| 8LK6036-7AA52 | 2 500 A | 696 mm | 80 mm | 170 mm | 17.909 kg |

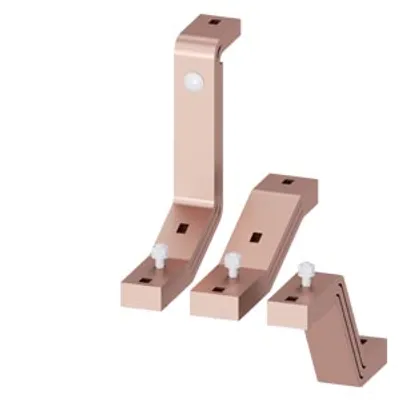

| 8LK6035-2AA71 | 2 000 A | 400 mm | 230 mm | 270 mm | 14.924 kg |

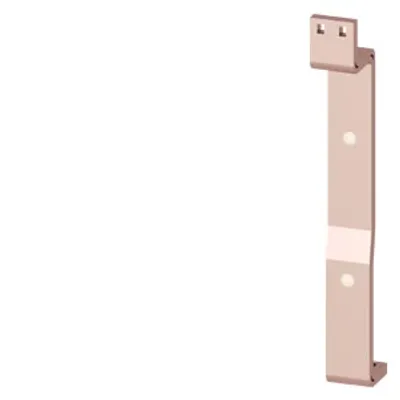

| 8LK6035-2AA26 | 3 200 A | 696 mm | 80 mm | 170 mm | 12.18 kg |

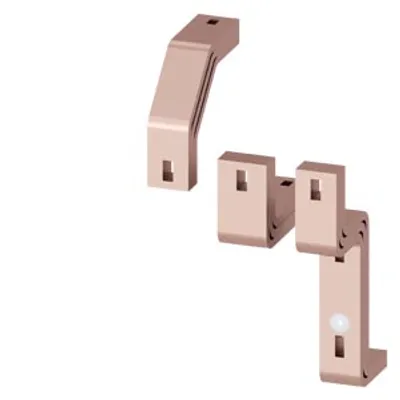

| 8LK6035-2AA38 | 2 000 A | 400 mm | 230 mm | 171 mm | 12.238 kg |

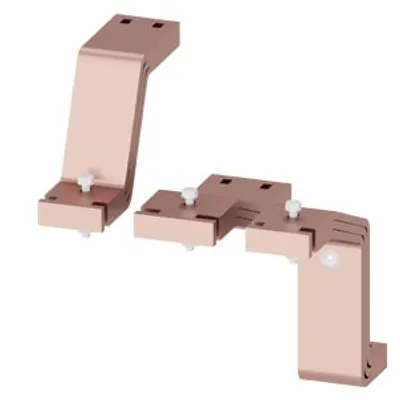

| 8LK6035-2AA16 | 3 200 A | 400 mm | 340 mm | 270 mm | 24.221 kg |

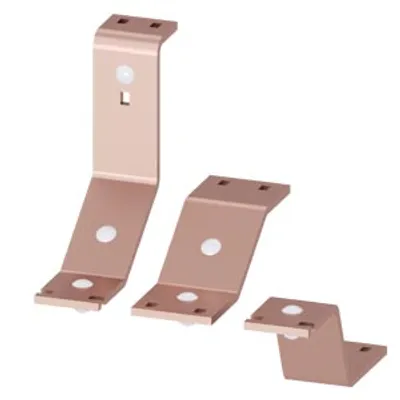

| 8LK6035-2AA15 | 2 000 A | 380 mm | 340 mm | 270 mm | 8.566 kg |

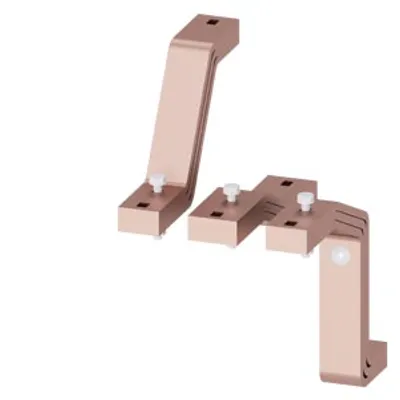

| 8LK6035-2AA14 | 2 000 A | 400 mm | 230 mm | 270 mm | 15.016 kg |
| 8LK6036-7AA13 | 1 250 A | 558 mm | 40 mm | 558 mm | 8.556 kg |

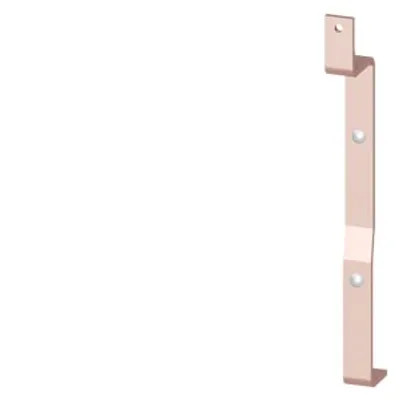

| 8LK6036-7AA11 | 1 250 A | 698 mm | 50 mm | 171 mm | 9.892 kg |

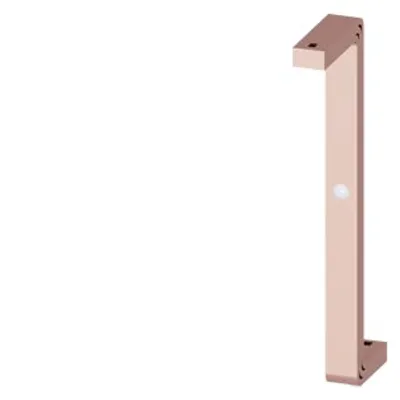

| 8LK6035-5AA31 | 2 000 A | 575 mm | 50 mm | 270 mm | 10.965 kg |

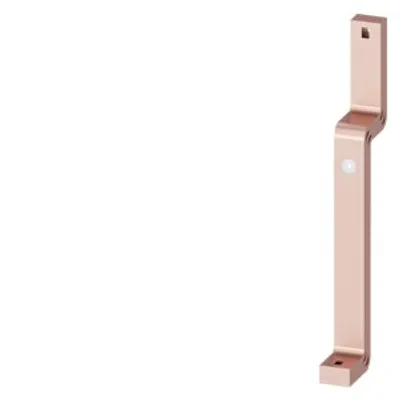

| 8LK6035-5AA30 | 2 000 A | 546 mm | 50 mm | 171 mm | 9.039 kg |

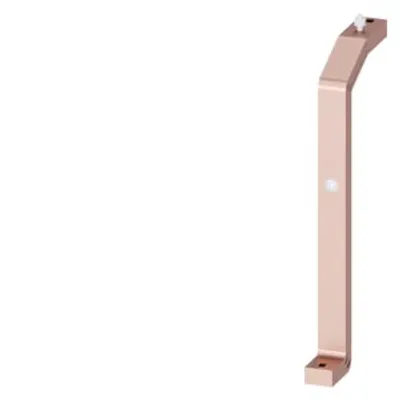

| 8LK6035-5AA28 | 2 000 A | 565 mm | 50 mm | 270 mm | 10.451 kg |

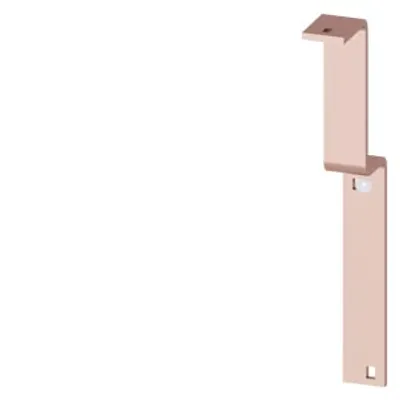

| 8LK6035-5AA54 | 2 000 A | 556 mm | 60 mm | 170 mm | 3.958 kg |

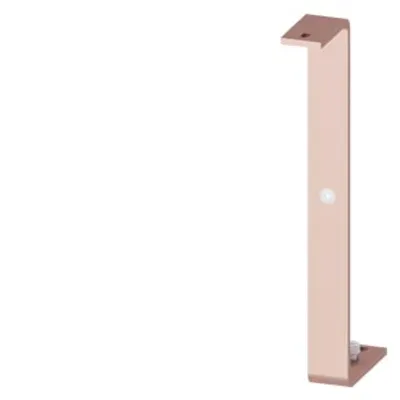

| 8LK6035-5AA53 | 2 000 A | 555 mm | 60 mm | 270 mm | 4.623 kg |

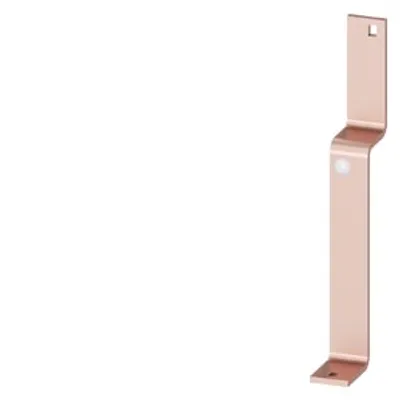

| 8LK6035-5AA52 | 2 000 A | 526 mm | 60 mm | 170 mm | 3.789 kg |

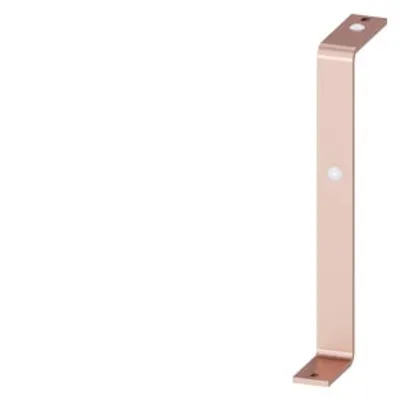

| 8LK6035-5AA51 | 2 000 A | 525 mm | 60 mm | 270 mm | 4.447 kg |

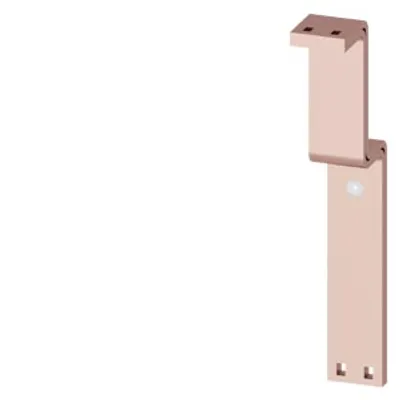

| 8LK6035-5AA50 | 3 200 A | 556 mm | 80 mm | 170 mm | 9.918 kg |

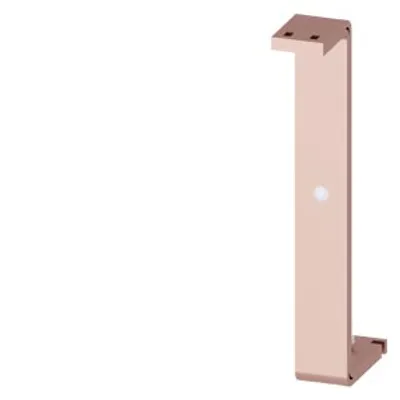

| 8LK6035-5AA48 | 3 200 A | 575 mm | 80 mm | 270 mm | 11.476 kg |

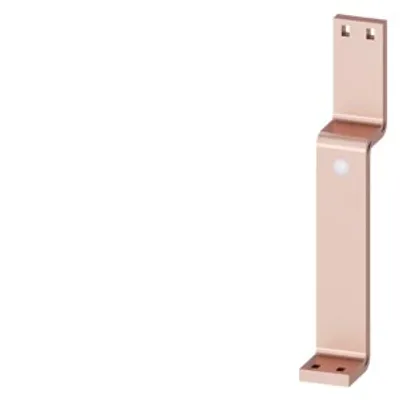

| 8LK6035-5AA47 | 3 200 A | 536 mm | 80 mm | 170 mm | 9.632 kg |
Common to all listed parts
| components of an electrical connection | Field/Field |
| tightening torque maximum | 40 N·m |
