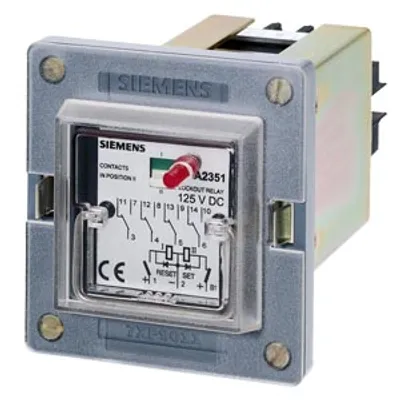

7PA23 - Bistable Quick-Operating Relay Parts
Compare 7PA23 - Bistable Quick-Operating Relay
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | supply voltage / at DC / rated value | width | height | depth | design of the snap-on socket base |
|---|---|---|---|---|---|
| 7PA2381-1 | 48 V | 75 mm | 80 mm | 144.5 mm | flush-mounting socket |
| 7PA2381-0 | 48 V | 45 mm | 45 mm | 108 mm | without |
| 7PA2361-1 | 30 V | 75 mm | 80 mm | 144.5 mm | flush-mounting socket |
| 7PA2361-0 | 30 V | 45 mm | 45 mm | 108 mm | without |
| 7PA2351-1 | 125 V | 75 mm | 80 mm | 144.5 mm | flush-mounting socket |
| 7PA2351-0 | 125 V | 45 mm | 45 mm | 108 mm | without |
| 7PA2341-1 | 220 V | 75 mm | 80 mm | 144.5 mm | flush-mounting socket |
| 7PA2341-0 | 220 V | 45 mm | 45 mm | 108 mm | without |
| 7PA2331-1 | 110 V | 75 mm | 80 mm | 144.5 mm | flush-mounting socket |
| 7PA2331-0 | 110 V | 45 mm | 45 mm | 108 mm | without |
Common to all listed parts
| type of voltage | DC |
| continuous current | 10 A |
| switching behavior | bistable |
| design of the switching function / positively driven | Yes |
| response time | 10 ms |
| product component / LED | No |
| manual RESET | Yes |
| number of NC contacts | 0 |
