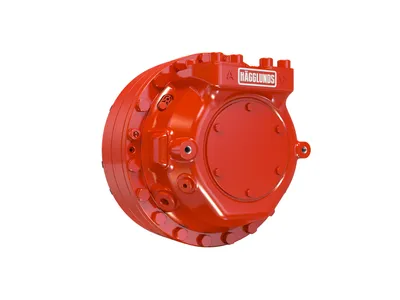

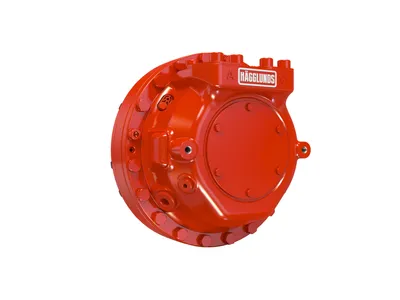

Hägglunds Atom Parts
Compare Hägglunds Atom
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Displacement [cm³/rev] | Specific Torque [Nm/bar] | Type of seal | Through hole kit | Weight [kg] |
|---|---|---|---|---|---|
| R939071284 | 1005 | 16 | FPM (Viton) | No | 68.5 |
| R939071282 | 1005 | 16 | FPM (Viton) | No | 68.5 |
| R939071276 | 1005 | 16 | FPM (Viton) | No | 68.5 |
| R939071274 | 1005 | 16 | FPM (Viton) | No | 71 |
| R939071292 | 1005 | 16 | NBR (Nitrile) | No | 68.5 |
| R939071283 | 1005 | 16 | NBR (Nitrile) | No | 68.5 |
| R939071281 | 1005 | 16 | NBR (Nitrile) | No | 71 |
| R939071275 | 1005 | 16 | NBR (Nitrile) | No | 68.5 |
| R939071273 | 1005 | 16 | NBR (Nitrile) | No | 68.5 |
| R939071171 | 785 | 12.5 | FPM (Viton) | Yes | 52.9 |
| R939071169 | 785 | 12.5 | FPM (Viton) | Yes | 52.9 |
| R939071163 | 785 | 12.5 | FPM (Viton) | Yes | 52.9 |
| R939071161 | 785 | 12.5 | FPM (Viton) | Yes | 52.9 |
| R939071170 | 785 | 12.5 | NBR (Nitrile) | Yes | 52.9 |
| R939071168 | 785 | 12.5 | NBR (Nitrile) | Yes | 52.9 |
| R939071162 | 785 | 12.5 | NBR (Nitrile) | Yes | 52.9 |
| R939071160 | 785 | 12.5 | NBR (Nitrile) | Yes | 52.4 |
| R939071167 | 785 | 12.5 | FPM (Viton) | No | 52.4 |
| R939071165 | 785 | 12.5 | FPM (Viton) | No | 52.4 |
| R939071159 | 785 | 12.5 | FPM (Viton) | No | 52.4 |
| R939071157 | 785 | 12.5 | FPM (Viton) | No | 52.4 |
| R939071204 | 785 | 12.5 | NBR (Nitrile) | No | 52.4 |
| R939071166 | 785 | 12.5 | NBR (Nitrile) | No | 52.4 |
| R939071164 | 785 | 12.5 | NBR (Nitrile) | No | 54 |
Common to all listed parts
| Product family | Hägglunds Atom |
| Max speed [rpm] | 400 |
| Max pressure [bar] | 350 |
| Mounting alternatives, shaft | Spline DIN 5480 N |
| Displacement shift | Single speed motor |
| Increased robustness | No |
| Mounting alternatives, motor case | Front flange |
| Prepared for brake or tandem kit/Mounted brake | No |
