Components and Accessories Parts
























Compare Components and Accessories
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | product designation | design of the product | width | Net Weight | protection class IP |
|---|---|---|---|---|---|

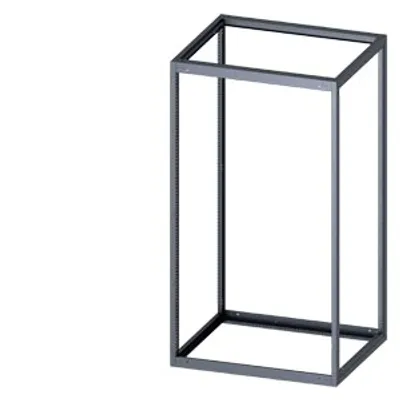

| 8MF1220-2GS30 | supporting structure | For standard empty enclosure | 1 200 mm | 60 kg | — |

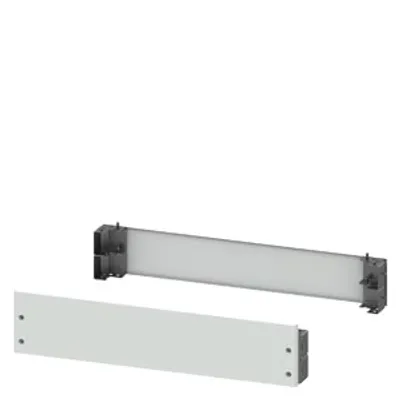

| 8MF1220-2CS | Base | For cubicles with door at front | 1 200 mm | 16 kg | — |

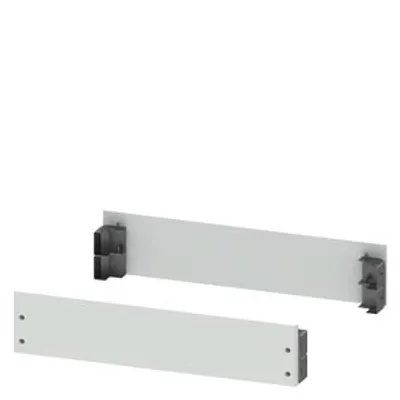

| 8MF1220-2CR | Base | For cubicles with door at front and rear | 1 200 mm | 16.5 kg | — |

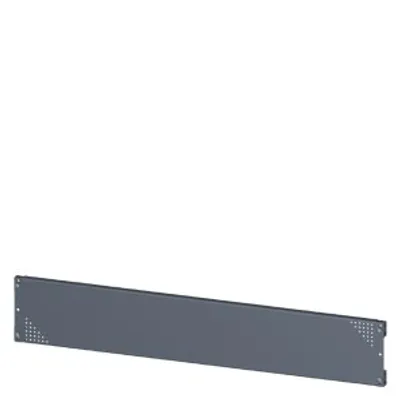

| 8MF1220-2AM12-0 | Mounting plate | Mounting with bracket, perforated | 1 200 mm | 4.46 kg | — |

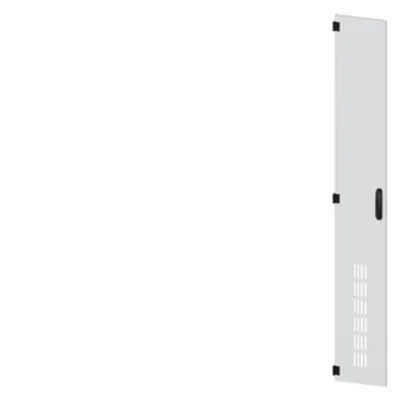

| 8MF1230-2UT15-1BA2 | Door | With ventilation openings | 300 mm | 10.4 kg | IP20 |
| 8MF1230-2UT15-0CA1 | Door | EMC | 300 mm | 10.3 kg | IP40 |

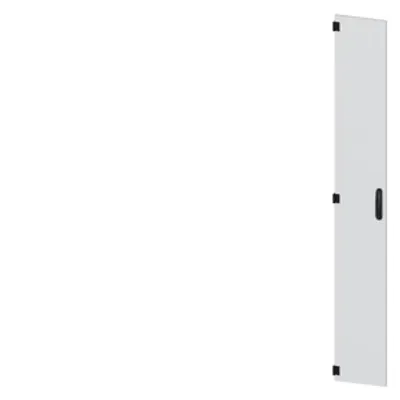

| 8MF1230-2UT15-0BA2 | Door | Closed | 300 mm | 10.4 kg | IP55 |
| 8MF1080-2HM | Grille | For upgrading from IP2X to IP4X | 800 mm | 1.1 kg | IPX4 |
| 8MF1080-2HD2 | Grounding bar | 30 x 10 mm2 | 800 mm | 2.161 kg | — |

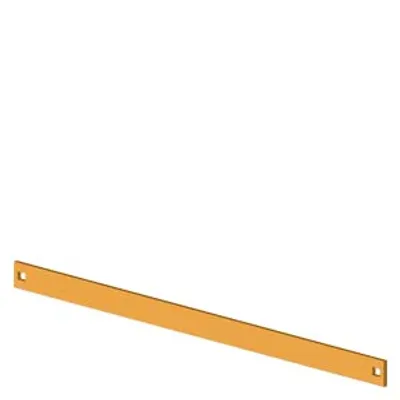

| 8MF1080-2HD1 | Grounding bar | 30 x 5 mm2 | 800 mm | 1.214 kg | — |

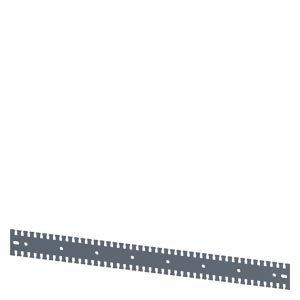

| 8MF1080-2HC13-0 | Mounting rail | Serrated | — | 1.1 kg | — |
| 8MF1070-2UT14-0CA1 | Door | Closed | 450 mm | 12.831 kg | IP40 |

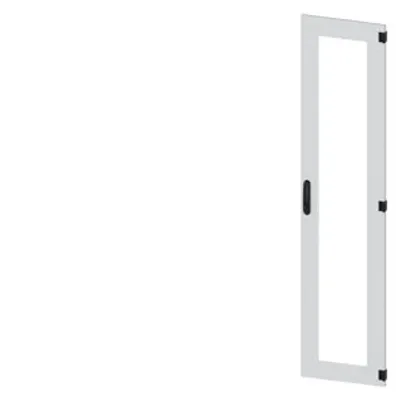

| 8MF1070-2UT14-0BE2 | Door | Inspection window | 450 mm | 16.4 kg | IP55 |

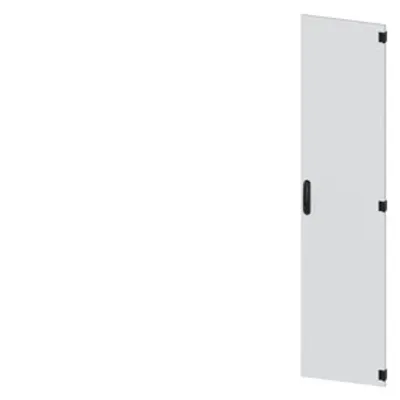

| 8MF1070-2UT14-0BA2 | Door | Closed | 450 mm | 12.93 kg | IP55 |
| 8MF1070-2HM | Grille | For upgrading from IP2X to IP4X | 450 mm | 0.6 kg | IPX4 |

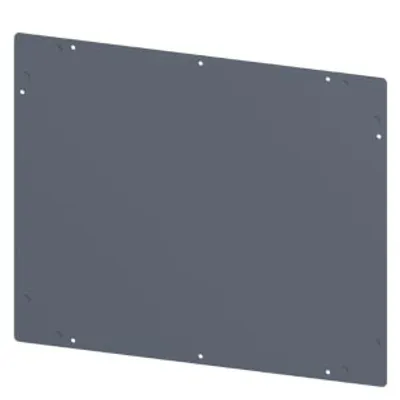

| 8MF1065-2UD12-0A | top plate | EMC | 600 mm | 3.9 kg | IP40 |

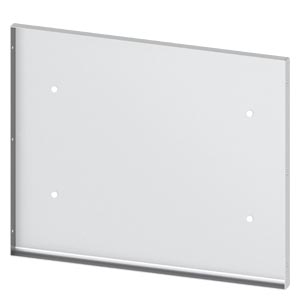

| 8MF1064-2VH | Roof trough | For an increased degree of protection | 600 mm | 4.8 kg | IPX1 |

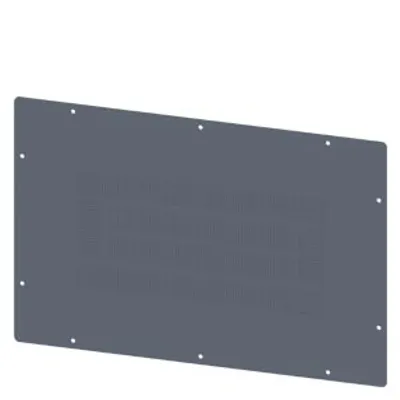

| 8MF1064-2UD30-0A | top plate | With ventilation openings | 600 mm | 3.1 kg | IP40 |

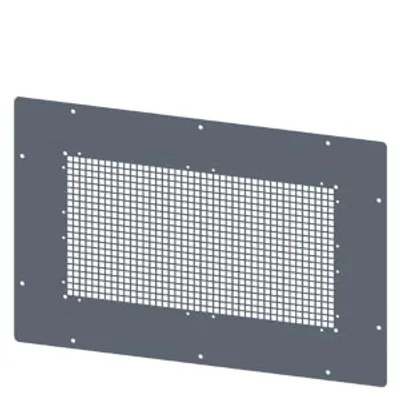

| 8MF1064-2UD20-0A | top plate | With ventilation openings | 600 mm | 3.1 kg | IP20 |
| 8MF1064-2UD12-0A | top plate | EMC | 600 mm | 3 kg | IP40 |

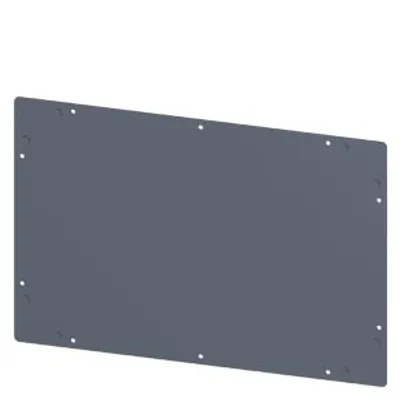

| 8MF1064-2UD11-0A | top plate | Closed | 600 mm | 3.1 kg | IP55 |

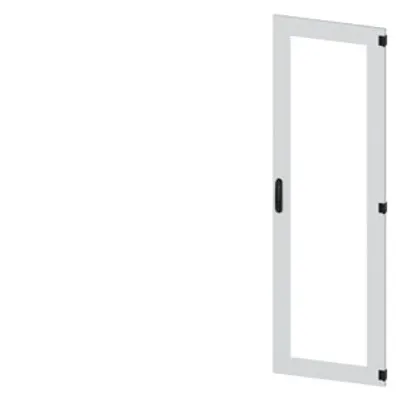

| 8MF1060-2UT14-0BE2 | Door | Inspection window | 600 mm | 18 kg | IP55 |

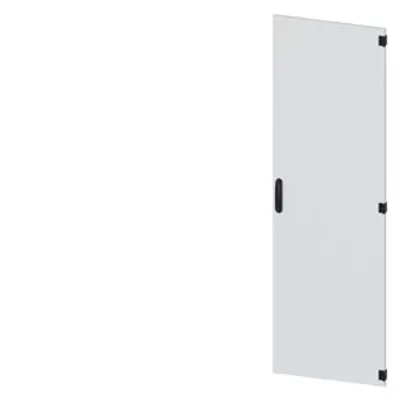

| 8MF1060-2UT14-0BA2 | Door | Closed | 600 mm | 16.4 kg | IP55 |

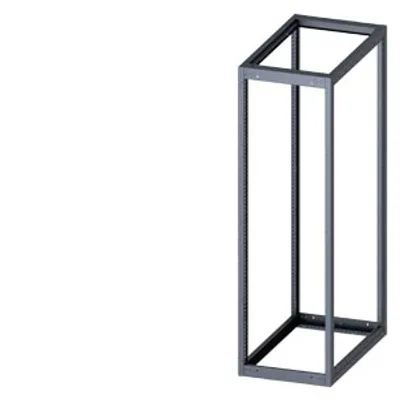

| 8MF1060-2GS40 | supporting structure | For standard empty enclosure | 600 mm | 48 kg | — |
