7PA27 - Monostable Relay Parts
Compare 7PA27 - Monostable Relay
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | supply voltage / at DC / rated value | width | height | depth | design of the snap-on socket base |
|---|---|---|---|---|---|

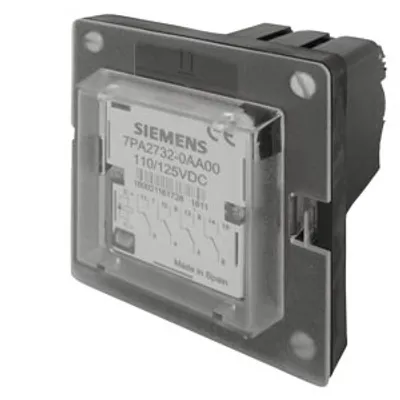

| 7PA2742-0AA00-0 | 220 V | 42.5 mm | 50.4 mm | 82.5 mm | without |
| 7PA2732-0AA00-2 | 125 V | 48 mm | 105 mm | 104.3 mm | surface mounting base |
| 7PA2732-0AA00-1 | 125 V | 75 mm | 80 mm | 122 mm | flush-mounting socket |
| 7PA2732-0AA00-0 | 125 V | 42.5 mm | 50.4 mm | 82.5 mm | without |
| 7PA2722-0AA00-2 | 60 V | 48 mm | 105 mm | 104.3 mm | surface mounting base |
Common to all listed parts
| type of voltage | DC |
| continuous current | 10 A |
| switching behavior | monostable |
| design of the switching function / positively driven | Yes |
| response time | 8 ms |
| product component / LED | No |
| manual RESET | No |
| number of NC contacts | 0 |
