Solenoid coils Parts
Compare Solenoid coils
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Net Weight | control supply voltage 1 at AC — at 50 Hz | control supply voltage 1 at AC — at 60 Hz | control supply voltage 1 at DC |
|---|---|---|---|---|

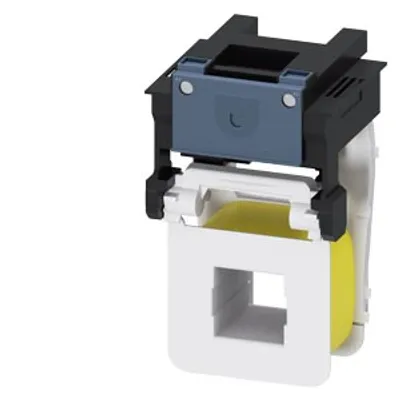

| 3RT1966-5AP31 | 0.849 kg | 220 ... 240 V | 220 ... 240 V | 220 ... 240 V |
| 3RT1966-5AM31 | 0.844 kg | 200 ... 220 V | 200 ... 220 V | 200 ... 220 V |
| 3RT1966-5AF31 | 0.904 kg | 110 ... 127 V | 110 ... 127 V | 110 ... 127 V |
| 3RT1966-5AD31 | 0.879 kg | 42 ... 48 V | 42 ... 48 V | 42 ... 48 V |
| 3RT1966-5AB31 | 0.944 kg | 23 ... 26 V | 23 ... 26 V | 23 ... 26 V |
Common to all listed parts
| product category | Solenoid coils |
| product designation | Changeover operating mechanism |
| product type designation | 3RT19 |
| Substance Prohibitance (day/month/year) | 05/01/2012 |
| type of voltage of the control supply voltage | AC/DC |
| apparent pick-up power of magnet coil at AC — at 50 Hz | 630 VA |
| apparent pick-up power of magnet coil at AC — at 60 Hz | 630 VA |
| inductive power factor with closing power of the coil — at 50 Hz | 0.9 |
