SIRIUS 3RF39 function modules Parts
Compare SIRIUS 3RF39 function modules
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Net Weight | operational current — at AC-51 rated value | teach range current initial value | teach range current full-scale value | partial load for load monitoring |
|---|---|---|---|---|---|
| 3RF3950-0KA16-0KT0 | 0.145 kg | 50 A | 1.6 A | 50 A | — |
| 3RF3932-0JA16 | 0.135 kg | 32 A | 0.8 A | 32 A | 0.8 A |
| 3RF3920-0HA13 | 0.141 kg | 20 A | 4 A | 20 A | — |
| 3RF3920-0GA16 | 0.149 kg | 20 A | 0.56 A | 20 A | 0.65 A |
| 3RF3920-0GA13 | 0.143 kg | 20 A | 0.56 A | 20 A | 0.65 A |

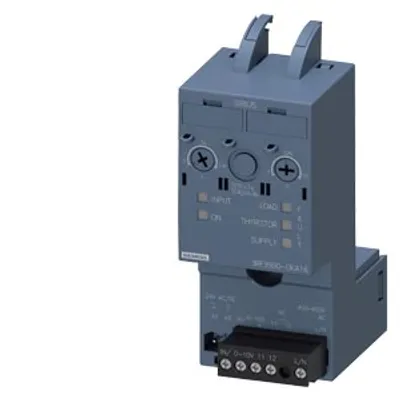

| 3RF3990-0KA16 | 0.143 kg | 90 A | 2.9 A | 90 A | 2.9 A |
| 3RF3932-0JA13-1KK0 | 0.126 kg | 32 A | 0.8 A | 32 A | 0.8 A |
| 3RF3920-0KA16 | 0.142 kg | 20 A | 4 A | 20 A | 0.65 A |
| 3RF3920-0KA13 | 0.142 kg | 20 A | 4 A | 20 A | 0.65 A |
| 3RF3990-0HA16 | 0.146 kg | 90 A | 18 A | 90 A | — |
| 3RF3990-0HA13 | 0.148 kg | 90 A | 18 A | 90 A | — |
| 3RF3990-0GA16 | 0.14 kg | 90 A | 2.93 A | 90 A | 2.9 A |
| 3RF3950-0GA16 | 0.14 kg | 50 A | 1.62 A | 50 A | 1.6 A |
| 3RF3950-0GA13 | 0.139 kg | 50 A | 1.62 A | 50 A | 1.6 A |
| 3RF3932-0JA16-1KK0 | 0.135 kg | 32 A | 0.8 A | 32 A | 0.8 A |
| 3RF3916-0JA13 | 0.129 kg | 16 A | 0.42 A | 16 A | 0.42 A |

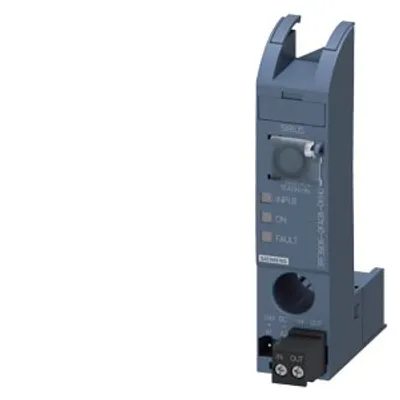

| 3RF3906-0FA08-0KH0 | 0.045 kg | 6 A | 0.25 A | 6 A | 0.25 A |
| 3RF3906-0FA08 | 0.048 kg | 6 A | 0.25 A | 6 A | 0.25 A |
| 3RF3904-0KA13-0KT0 | 0.144 kg | 4 A | 0.15 A | 4 A | — |
Common to all listed parts
| product type designation | 3RF39 |
| manufacturer's article number — _1 of the accessories that can be ordered | 3RF2900-0RA88 |
| product designation — _1 of the accessories that can be ordered | sealable end cover |
| product function | for solid-state relays / contactors 3RF31 and 3RF33 |
| type of calculation of power loss current-dependent | linear |
| insulation voltage rated value | 600 V |
| degree of pollution | 3 |
| protection class IP | IP20 |
