SIRIUS 3RF34 solid-state switching devices for switching motors Parts
Compare SIRIUS 3RF34 solid-state switching devices for switching motors
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | power loss [W] for rated value of the current — at AC in hot operating state | power loss [W] for rated value of the current — at AC in hot operating state per pole | Net Weight | operational current — at AC-3 at 400 V rated value | operational current — at AC-53a at 400 V at ambient temperature 40 °C rated value |
|---|---|---|---|---|---|
| 3RF3410-2BB26 | 16 W | 5.33 W | 0.38 kg | 9.2 A | 9.2 A |
| 3RF3410-2BB24 | 16 W | 5.33 W | 0.459 kg | 9.2 A | 9.2 A |

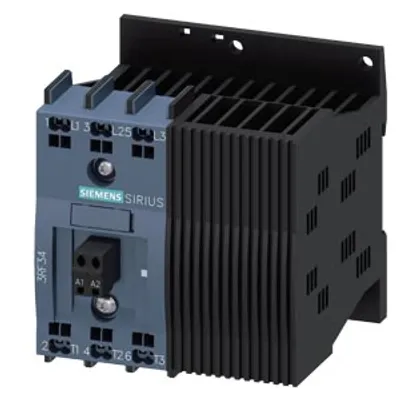

| 3RF3410-2BB06 | 16 W | 5.33 W | 0.452 kg | 9.2 A | 9.2 A |

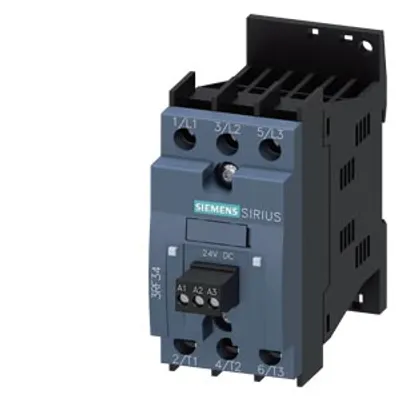

| 3RF3405-1BD04 | 9 W | 3 W | 0.289 kg | 5.4 A | 5.4 A |

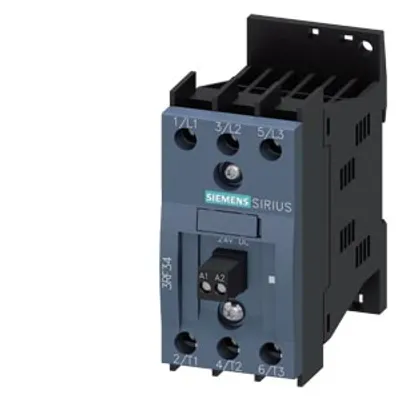

| 3RF3405-1BB26 | 10 W | 3.33 W | 0.272 kg | 5.2 A | 5.2 A |
| 3RF3405-1BB24 | 10 W | 3.33 W | 278.666 g | 5.2 A | 5.2 A |
| 3RF3416-1BB26 | 28 W | 9.33 W | 0.467 kg | 16 A | 16 A |
| 3RF3416-1BB24 | 28 W | 9.33 W | 0.459 kg | 16 A | 16 A |
| 3RF3416-1BB06 | 28 W | 9.33 W | 0.46 kg | 16 A | 16 A |

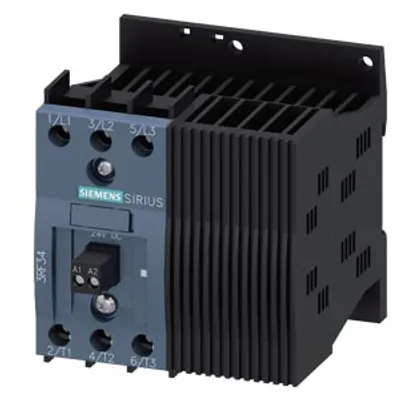

| 3RF3416-1BB04 | 28 W | 9.33 W | 0.462 kg | 16 A | 16 A |
| 3RF3405-1BB06 | 10 W | 3.33 W | 0.285 kg | 5.2 A | 5.2 A |
| 3RF3405-1BB04 | 10 W | 3.33 W | 0.265 kg | 5.2 A | 5.2 A |
| 3RF3403-1BD24 | 7 W | 2.33 W | 0.288 kg | 3.8 A | 3.8 A |
Common to all listed parts
| design of the product | 2-pole controlled |
| product type designation | 3RF34 |
| certificate of suitability | CE / UL / CSA / CCC / C-Tick (RCM) |
| product function | instantaneous switching |
| type of calculation of power loss current-dependent | linear |
| insulation voltage rated value | 600 V |
| degree of pollution | 3 |
| surge voltage resistance of main circuit rated value | 6 kV |
