Floor plates Parts

Siemens

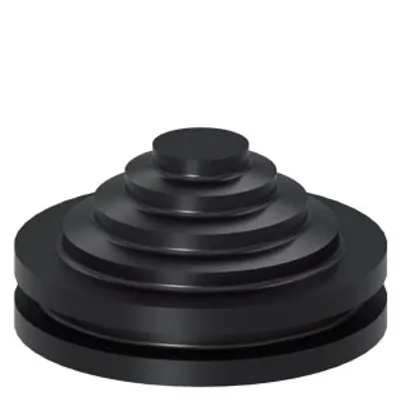

8LK9400-4AA40

Cable entry, cable diameter=10-40 mm

Siemens

8LK2300-6AA63

Floor plate IP30, D: 600 mm W: 850 mm

Siemens

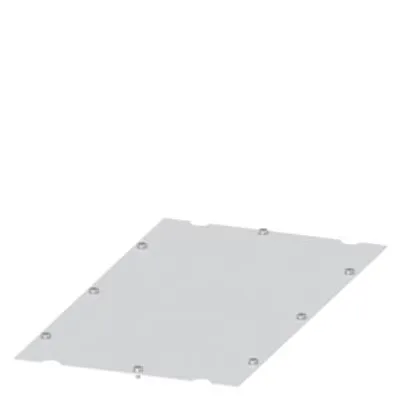

8LK2300-6AA62

Floor plate IP30, D: 600 mm W: 350 mm

Siemens

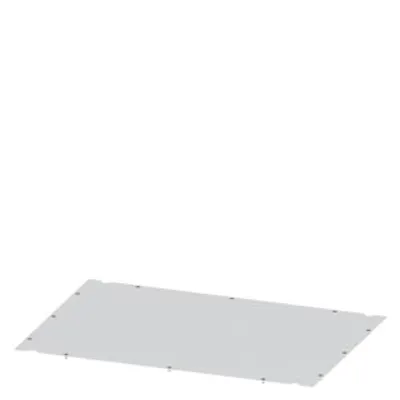

8LK2300-6AA51

Floor plate IP54, D: 600 mm W: 850 mm

Siemens

8LK2308-6AC07

Floor plate IP54, D: 600 mm W: 800 mm

Siemens

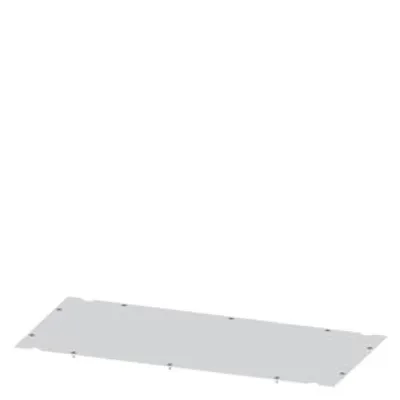

8LK2308-4AB05

Floor plate IP54, D: 400 mm W: 800 mm

Siemens

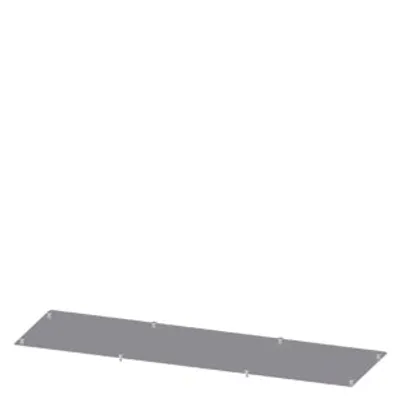

8LK2308-0AA73

Aluminum insert 3 mm D: 400 mm W: 800 mm

Siemens

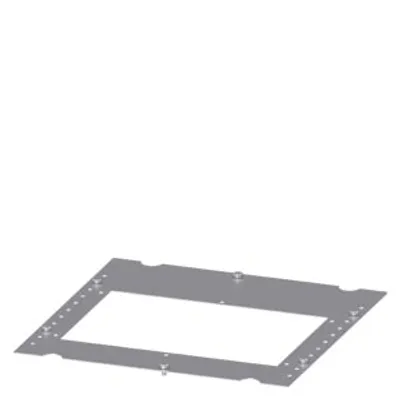

8LK2304-4AA70

Base plate for aluminum insert IP30, D: 400 mm W: 400 mm

Siemens

8LK2304-4AA68

Floor plate IP30, D: 400 mm W: 400 mm

Siemens

8LK2300-6AA64

Floor plate IP30, D: 600 mm W: 1100 mm

Siemens

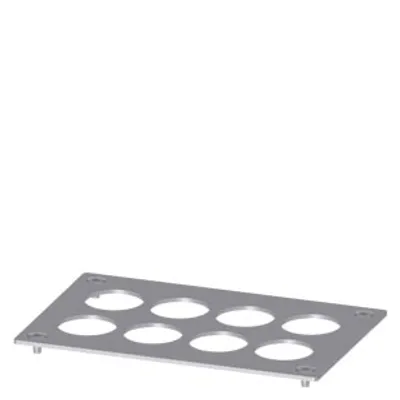

8LK2300-0AA50

Module insert IP30, version: 8 x 40.5 mm

Siemens

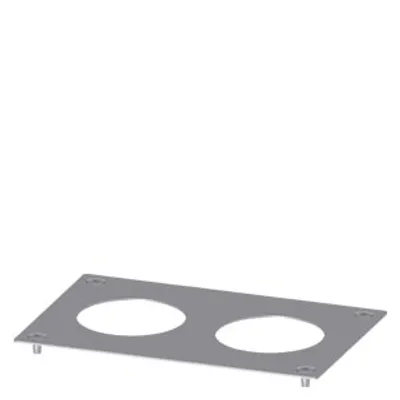

8LK2300-0AA48

Module insert IP30, version: 2 x 74 mm

Siemens

8LK2300-0AA47

Module insert IP30, version: 3 x 45 mm

Siemens

8LK2300-0AA46

Module insert IP54, version: 8x40.5 mm

Siemens

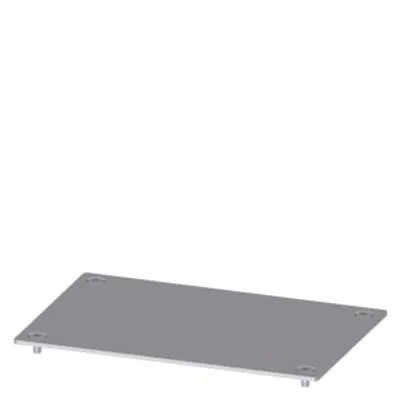

8LK2300-0AA42

Module insert IP30, version: closed

Siemens

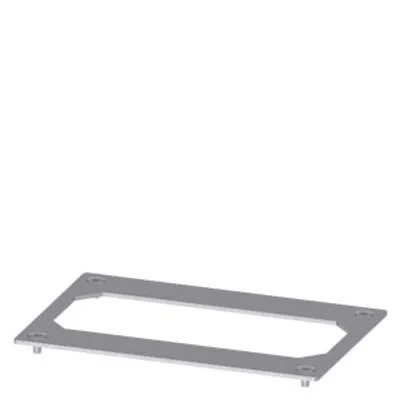

8LK2300-0AA41

Module insert IP54, version: ALPHA 8GK

Siemens

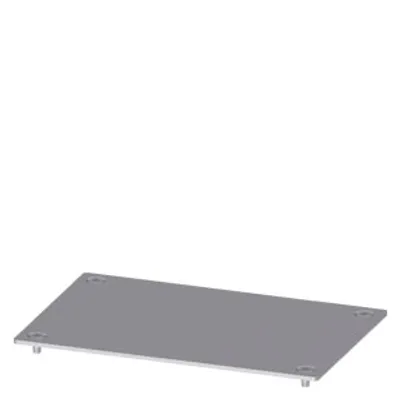

8LK2300-0AA40

Module insert IP54, version: closed

Siemens

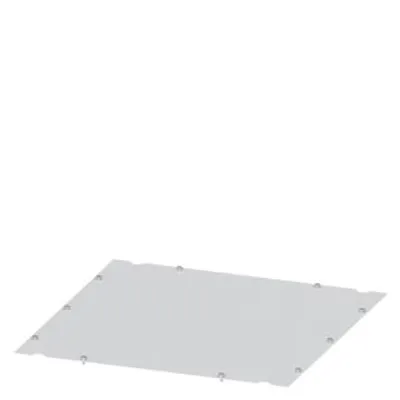

8LK2306-6AC32

Floor plate IP30, D: 600 mm W: 600 mm

Siemens

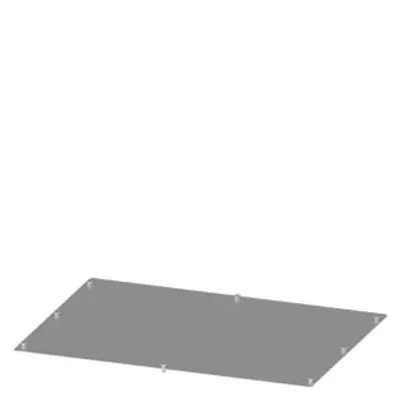

8LK2306-6AC30

Aluminum insert 3 mm D: 600 mm W: 600 mm

Siemens

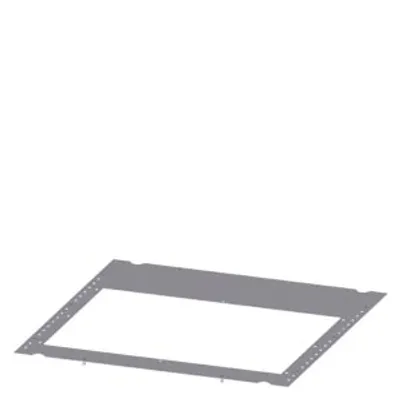

8LK2306-6AC05

Base plate for aluminum insert IP54, D: 600 mm W: 600 mm

Compare Floor plates

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	product designation	design of the product	height	width	Net Weight
8LK9400-4AA40	cable entry	D = 10 - 40 mm	27.5 mm	54 mm	20 g
8LK2300-6AA63	bottom plate	Closed	1.5 mm	850 mm	5.702 kg
8LK2300-6AA62	bottom plate	Closed	1.5 mm	350 mm	2.169 kg
8LK2300-6AA51	bottom plate	Closed	1.5 mm	850 mm	5.704 kg
8LK2308-6AC07	bottom plate	Closed	1.5 mm	800 mm	5.354 kg
8LK2308-4AB05	bottom plate	Closed	1.5 mm	800 mm	3.443 kg
8LK2308-0AA73	aluminum insert	—	213 mm	710 mm	1.507 kg
8LK2304-4AA70	bottom plate	for aluminum insert	1.5 mm	400 mm	1.036 kg
8LK2304-4AA68	bottom plate	Closed	1.5 mm	400 mm	1.546 kg
8LK2300-6AA64	bottom plate	Closed	1.5 mm	1 100 mm	7.325 kg
8LK2300-0AA50	module insert	for 8HP18	142 mm	220 mm	142 g
8LK2300-0AA48	module insert	for 8HC6900	142 mm	220 mm	217 g
8LK2300-0AA47	module insert	for 8LK9400-4AA40	142 mm	220 mm	247 g
8LK2300-0AA46	module insert	for 8HP18	142 mm	220 mm	133 g
8LK2300-0AA42	module insert	dummy	142 mm	220 mm	410 g
8LK2300-0AA41	module insert	for 8GK9100-0KK01	142 mm	220 mm	0.484 kg
8LK2300-0AA40	module insert	dummy	142 mm	220 mm	377 g
8LK2306-6AC32	bottom plate	Closed	1.5 mm	600 mm	3.931 kg
8LK2306-6AC30	aluminum insert	—	365 mm	510 mm	1.75 kg
8LK2306-6AC05	bottom plate	for aluminum insert	1.5 mm	600 mm	2.101 kg
