3VA Molded Case Circuit Breakers up to 1600 A, IEC Parts
Compare 3VA Molded Case Circuit Breakers up to 1600 A, IEC
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | power loss [W] / maximum | power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | Net Weight | operational current — at 55 °C | adjustable response value setting current (Ii) / for I-tripping — minimum |
|---|---|---|---|---|---|

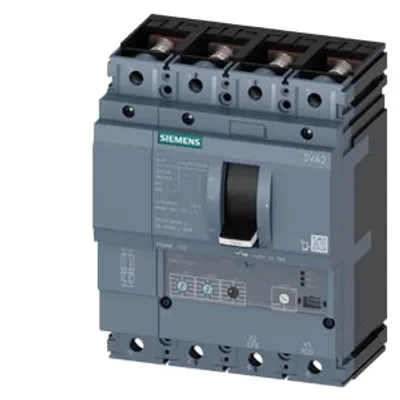

| 3VA2040-8HL42-0AA0 | 1.2 W | 0.4 W | 3.2 kg | 40 A | 60 A |

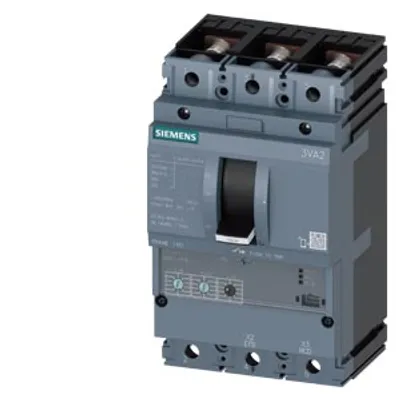

| 3VA2163-6HL32-0AA0 | 4 W | 1.33 W | 2.128 kg | 63 A | 94 A |

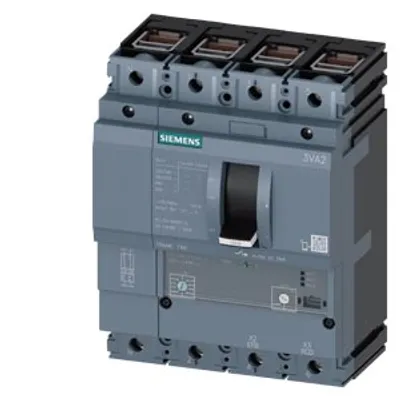

| 3VA2163-6HK46-0AA0 | 4 W | 1.33 W | 3.2 kg | 63 A | 945 A |
| 3VA2216-7HN32-0AA0 | 19.7 W | 6.57 W | 2.253 kg | 160 A | 1 920 A |
| 3VA2163-5KQ46-0AA0 | 4 W | 1.33 W | 3.2 kg | 63 A | 94 A |

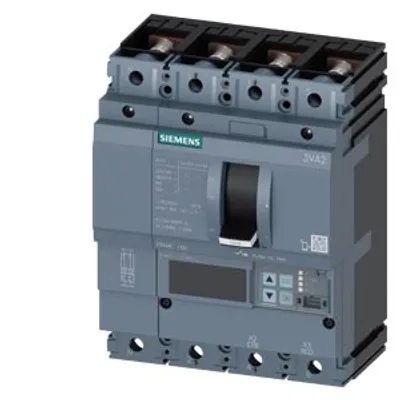

| 3VA2163-5KQ42-0AA0 | 4 W | 1.33 W | 3.2 kg | 63 A | 94 A |
| 3VA2163-5KQ36-0AA0 | 4 W | 1.33 W | 2.5 kg | 63 A | 94 A |
| 3VA2125-5HK46-0AA0 | 0.6 W | 0.2 W | 3.2 kg | 25 A | 375 A |
| 3VA2125-5HK32-0AA0 | 0.6 W | 0.2 W | 2.5 kg | 25 A | 375 A |

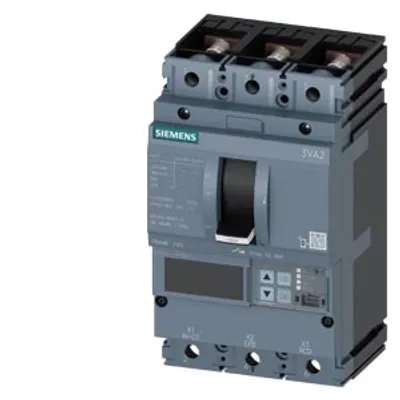

| 3VA2140-7KP32-0AA0 | 1.6 W | 0.53 W | 2.232 kg | 40 A | 60 A |
| 3VA2140-7JQ46-0AA0 | 1.6 W | 0.53 W | 3.2 kg | 40 A | 60 A |

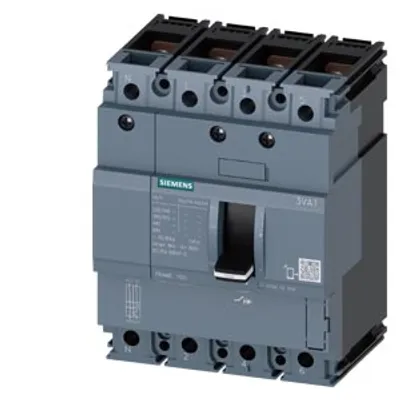

| 3VA1020-4ED42-0AA0 | 12 W | 4 W | 1.181 kg | 20 A | 320 A |
| 3VA1010-4ED42-0AA0 | 25 W | 8.33 W | 1.185 kg | 98 A | 1 000 A |

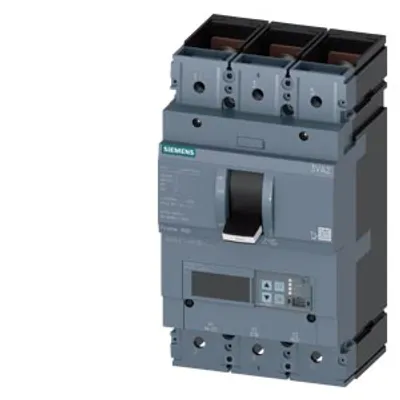

| 3VA2340-8KP32-0AA0 | 96 W | 32 W | 4 300 g | 375 A | 600 A |

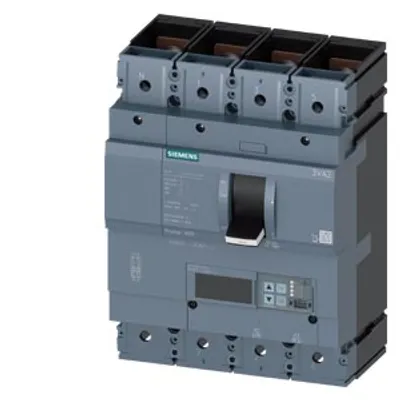

| 3VA2340-8JQ42-0AA0 | 96 W | 32 W | 4 800 g | 375 A | 600 A |

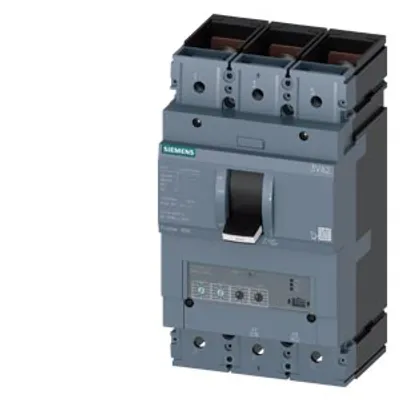

| 3VA2340-8HN32-0AA0 | 96 W | 32 W | 5.096 kg | 385 A | 4 000 A |

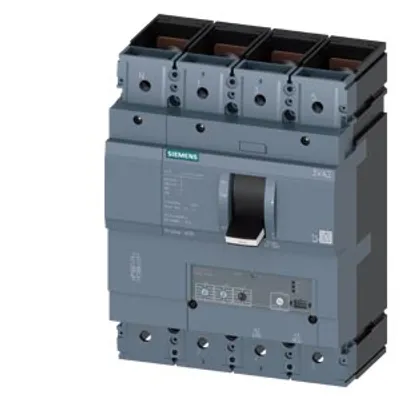

| 3VA2340-8HL42-0AA0 | 96 W | 32 W | 5 kg | 385 A | 600 A |
Common to all listed parts
| product designation | Molded case circuit breaker |
| design of the product | Line protection |
| insulation voltage / rated value | 800 V |
| operating voltage / at AC / rated value | 690 V |
| product feature / for L-tripping / can be switched on/off | No |
| product component — undervoltage release | No |
| product component — voltage trigger | No |
| product component — trip indicator | No |
