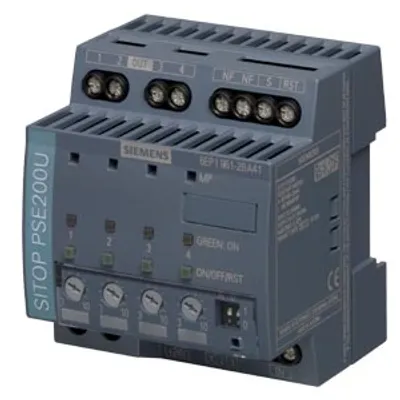

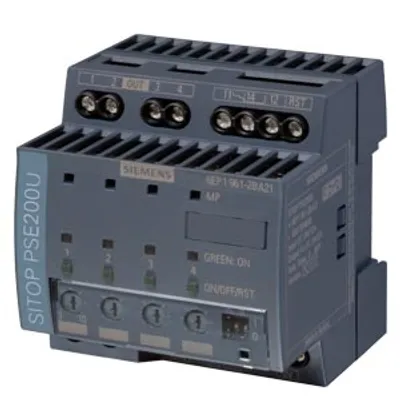

SITOP PSE200U selectivity module Parts
Compare SITOP PSE200U selectivity module
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Technical Product Detail Page | product type designation | overvoltage overload capability | input current at rated input voltage 24 V rated value | type of electrical connection — for signaling contact |
|---|---|---|---|---|---|
| 6EP1961-2BA51 | https://i.siemens.com/1P6EP1961-2BA51 | PSE200U | 35 V | 12 A | 3 screw terminals for 0.5 ... 4 mm² |
| 6EP1961-2BA31 | https://i.siemens.com/1P6EP1961-2BA31 | PSE200U | 35 V | 12 A | 1 screw terminal for 0.5 ... 4 mm² |

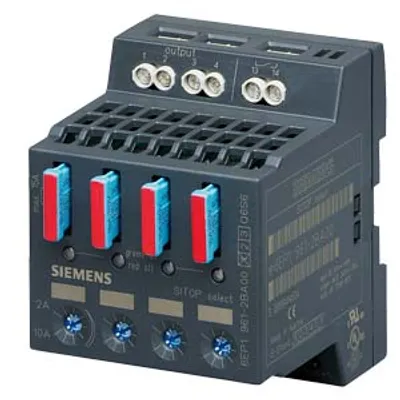

| 6EP1961-2BA00 | https://i.siemens.com/1P6EP1961-2BA00 | select | 35 V; 100 ms | 40 A | 2 screw terminals for 0.22 ... 4 mm² |
Common to all listed parts
| product designation | SITOP Selectivity module |
| supply voltage at DC rated value | 24 V |
| input voltage at DC | 22 ... 30 V |
| voltage curve at output | controlled DC voltage |
| relative overall tolerance of the voltage note | In accordance with the supplying input voltage |
| number of outputs | 4 |
| type of response value setting | via potentiometer |
| response delay maximum | 5 s |
