VIB2000 | Bar light Parts

Beckhoff

VIB2000-0155

Bar light, OGB-IR850, wide beam, light emitting surface 150 x 50 mm

Beckhoff

VIB2000-0205

Bar light, OGB-IR850, wide beam, light emitting surface 200 x 50 mm

Beckhoff

VIB2000-0305

Bar light, OGB-IR850, wide beam, light emitting surface 300 x 50 mm

Beckhoff

VIB2000-0405

Bar light, OGB-IR850, wide beam, light emitting surface 400 x 50 mm

Beckhoff

VIB2000-0605

Bar light, OGB-IR850, wide beam, light emitting surface 600 x 50 mm

Beckhoff

VIB2000-0805

Bar light, OGB-IR850, wide beam, light emitting surface 800 x 50 mm

Beckhoff

VIB2000-0255

Bar light, OGB-IR850, wide beam, light emitting surface 250 x 50 mm

Beckhoff

VIB2000-0505

Bar light, OGB-IR850, wide beam, light emitting surface 500 x 50 mm

Beckhoff

VIB2000-1005

Bar light, OGB-IR850, wide beam, light emitting surface 1000 x 50 mm

Beckhoff

VIB2010-0155

Bar light, OGB-IR850, narrow beam, light emitting surface 150 x 50 mm

Beckhoff

VIB2010-0205

Bar light, OGB-IR850, narrow beam, light emitting surface 200 x 50 mm

Beckhoff

VIB2010-0255

Bar light, OGB-IR850, narrow beam, light emitting surface 250 x 50 mm

Beckhoff

VIB2010-0305

Bar light, OGB-IR850, narrow beam, light emitting surface 300 x 50 mm

Beckhoff

VIB2010-0405

Bar light, OGB-IR850, narrow beam, light emitting surface 400 x 50 mm

Beckhoff

VIB2010-0605

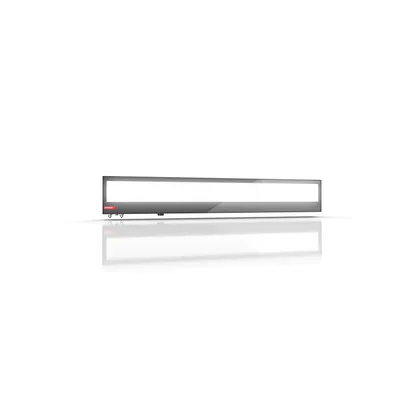

Bar light, OGB-IR850, narrow beam, light emitting surface 600 x 50 mm

Beckhoff

VIB2010-0805

Bar light, OGB-IR850, narrow beam, light emitting surface 800 x 50 mm

Beckhoff

VIB2010-1005

Bar light, OGB-IR850, narrow beam, light emitting surface 1000 x 50 mm

Beckhoff

VIB2010-0505

Bar light, OGB-IR850, narrow beam, light emitting surface 500 x 50 mm

Compare VIB2000 | Bar light

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Light distribution	Beam angle	Light emitting surface (W x H)	Dimensions (W x H x D)	Weight
VIB2000-0155	wide beam	90°	150 x 50 mm	175 mm x 95 mm x 39.5 mm	1.00 kg
VIB2000-0205	wide beam	90°	200 x 50 mm	225 mm x 95 mm x 39.5 mm	1.2 kg
VIB2000-0305	wide beam	90°	300 x 50 mm	325 mm x 95 mm x 39.5 mm	1.55 kg
VIB2000-0405	wide beam	90°	400 x 50 mm	425 mm x 95 mm x 39.5 mm	2.0 kg
VIB2000-0605	wide beam	90°	600 x 50 mm	625 mm x 95 mm x 39.5 mm	2.8 kg
VIB2000-0805	wide beam	90°	800 x 50 mm	825 mm x 95 mm x 39.5 mm	3.6 kg
VIB2000-0255	wide beam	90°	250 x 50 mm	275 mm x 95 mm x 39.5 mm	1.43 kg
VIB2000-0505	wide beam	90°	500 x 50 mm	525 mm x 95 mm x 39.5 mm	2.45 kg
VIB2000-1005	wide beam	90°	1000 x 50 mm	1025 mm x 95 mm x 39.5 mm	4.5 kg
VIB2010-0155	narrow beam	50°	150 x 50 mm	175 mm x 95 mm x 39.5 mm	1.00 kg
VIB2010-0205	narrow beam	50°	200 x 50 mm	225 mm x 95 mm x 39.5 mm	1.2 kg
VIB2010-0255	narrow beam	50°	250 x 50 mm	275 mm x 95 mm x 39.5 mm	1.43 kg
VIB2010-0305	narrow beam	50°	300 x 50 mm	325 mm x 95 mm x 39.5 mm	1.55 kg
VIB2010-0405	narrow beam	50°	400 x 50 mm	425 mm x 95 mm x 39.5 mm	2.0 kg
VIB2010-0605	narrow beam	50°	600 x 50 mm	625 mm x 95 mm x 39.5 mm	2.8 kg
VIB2010-0805	narrow beam	50°	800 x 50 mm	825 mm x 95 mm x 39.5 mm	3.6 kg
VIB2010-1005	narrow beam	50°	1000 x 50 mm	1025 mm x 95 mm x 39.5 mm	4.5 kg
VIB2010-0505	narrow beam	50°	500 x 50 mm	525 mm x 95 mm x 39.5 mm	2.45 kg

Common to all listed parts

Product category	illumination
Category/version	bar light
Peak performance	1200 W (electrical, VIS LEDs, max. 500 µs)
Power supply	mode 1: EtherCAT P mode 2: 24 V DC (-15%/+20%)
Max. power consumption	60 W
Synchronization	mode 1: EtherCAT P mode 2: Digital input
Front glass	thermally hardened
Operating temperature	0…60°C
