Home / Vision / Illumination / VIR2000 | Ring illumination

VIR2000 | Ring illumination Parts

Beckhoff

Ring illumination, OGB-IR850, wide beam, light emitting surface 100 x 100 mm

Beckhoff

Ring illumination, OGB-IR850, wide beam, light emitting surface 150 x 150 mm

Beckhoff

Ring illumination, OGB-IR850, wide beam, light emitting surface 200 x 200 mm

Beckhoff

Ring illumination, OGB-IR850, wide beam, light emitting surface 300 x 300 mm

Beckhoff

Ring illumination, OGB-IR850, wide beam, light emitting surface 250 x 250 mm

Beckhoff

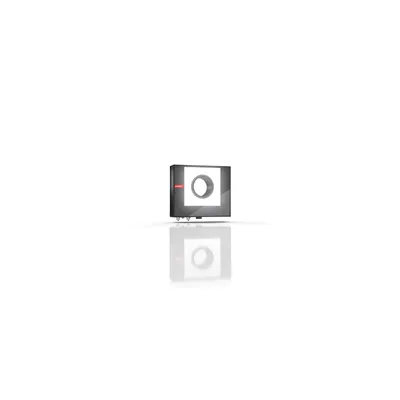

Ring illumination, OGB-IR850, narrow beam, light emitting surface 100 x 100 mm

Beckhoff

Ring illumination, OGB-IR850, narrow beam, light emitting surface 150 x 150 mm

Beckhoff

Ring illumination, OGB-IR850, narrow beam, light emitting surface 200 x 200 mm

Beckhoff

Ring illumination, OGB-IR850, narrow beam, light emitting surface 250 x 250 mm

Beckhoff

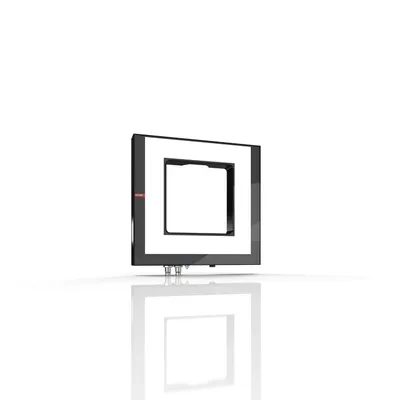

Ring illumination, OGB-IR850, narrow beam, light emitting surface 300 x 300 mm

Compare VIR2000 | Ring illumination

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Light distribution	Beam angle	Light emitting surface (W x H)	Weight
VIR2000-1010	wide beam	90°	100 x 100 mm	1.2 kg
VIR2000-1515	wide beam	90°	150 x 150 mm	1.9 kg
VIR2000-2020	wide beam	90°	200 x 200 mm	2.5 kg
VIR2000-3030	wide beam	90°	300 x 300 mm	4.1 kg
VIR2000-2525	wide beam	90°	250 x 250 mm	3.25 kg
VIR2010-1010	narrow beam	50°	100 x 100 mm	1.2 kg
VIR2010-1515	narrow beam	50°	150 x 150 mm	1.9 kg
VIR2010-2020	narrow beam	50°	200 x 200 mm	2.5 kg
VIR2010-2525	narrow beam	50°	250 x 250 mm	3.25 kg
VIR2010-3030	narrow beam	50°	300 x 300 mm	4.1 kg

Product category	illumination
Category/version	ring illumination
Peak performance	1200 W (electrical, VIS LEDs, max. 500 µs)
Power supply	mode 1: EtherCAT P mode 2: 24 V DC (-15%/+20%)
Max. power consumption	60 W
Synchronization	mode 1: EtherCAT P mode 2: Digital input
Front glass	thermally hardened
Operating temperature	0…60°C
