Enclosure width 56 mm Parts
Compare Enclosure width 56 mm
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | surge voltage resistance rated value | Net Weight | minimum actuating force in directions of actuation | ambient temperature — during operation | type of voltage of the supply voltage of the optional LED display |
|---|---|---|---|---|---|
| 3SE5122-1QV10 | 0.8 kV | 0.517 kg | 20 N | -25 ... +60 °C | DC |
| 3SE5122-0QV10-1AA7 | 6 kV | 0.518 kg | 30 N | -25 ... +85 °C | — |

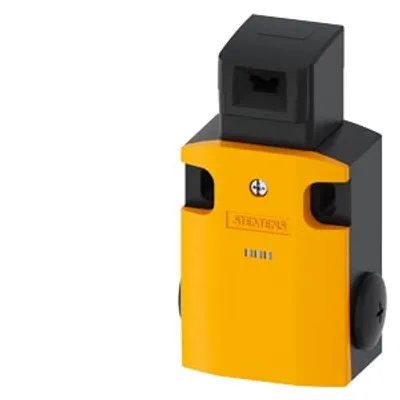

| 3SE5122-3QV10 | 4 kV | 0.523 kg | 20 N | -25 ... +60 °C | AC |
Common to all listed parts
| product designation | Mechanical safety switches |
| product type designation | 3SE5 |
| product function positive opening | Yes |
| insulation voltage rated value | 400 V |
| degree of pollution | class 3 |
| protection class IP | IP66/IP67 |
| shock resistance — according to IEC 60068-2-27 | 30 g / 11 ms |
| vibration resistance according to IEC 60068-2-6 | 0.35 mm/5 g |
