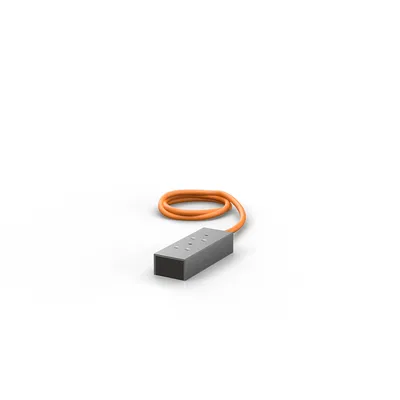

AL8122 Parts
Compare AL8122
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Max. speed | Peak force | Peak current | Continuous current | Force constant |
|---|---|---|---|---|---|
| AL8122-0Eyz-0000 | 1.3 m/s | 170 N | 5.6 A | 2.8 A | 40 N/A |
| AL8122-0Gyz-0000 | 2.2 m/s | 200 N | 9 A | 4.5 A | 25 N/A |
| AL8122-0Jyz-0000 | 3.5 m/s | 220 N | 16 A | 7.3 A | 16 N/A |
| AL8122-0Nyz-0000 | 6 m/s | 219 N | 32 A | 15 A | 8 N/A |
Common to all listed parts
| Motor type | 3-phase synchronous linear servomotors |
| Nominal voltage | 24…48 V DC |
| Cooling | convection |
| Ambient temperature (operation) | 5…40°C |
| Approvals/markings | CE, cURus |
| Protection rating | IP64 |
| Overall width | W2 (50 mm) |
| Material | aluminum |
