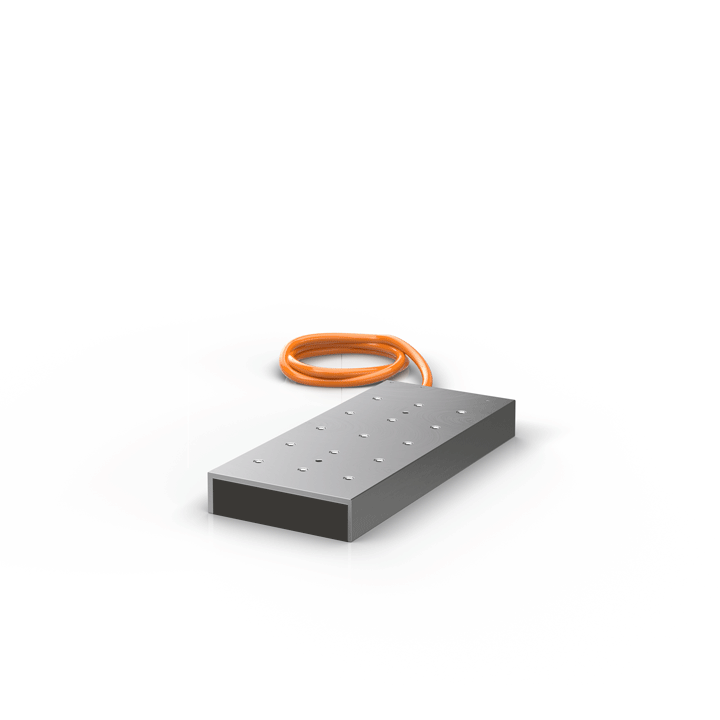

AL806A Parts
Compare AL806A
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Max. speed | Continuous force | Peak current | Continuous current | Force constant |
|---|---|---|---|---|---|
| AL806A-0Kyz-0000 | 3 m/s | 1900 N | 24 A | 8.3 A | 228 N/A |
| AL806A-0Qyz-0000 | 6 m/s | 1900 N | 7.2 A | 25 A | 76 N/A |
| AL806A-1Kyz-0000 | 3 m/s | 2000 N | 24 A | 8.8 A | 228 N/A |
| AL806A-1Ryz-0000 | 6 m/s | 2000 N | 7.2 A | 26 A | 76 N/A |
Common to all listed parts
| Motor type | 3-phase synchronous linear servomotors |
| Nominal voltage | 100…480 V AC |
| Peak force | 4500 N |
| Ambient temperature (operation) | 5…40°C |
| Approvals/markings | CE, cURus |
| Protection rating | IP64 |
| Overall width | W6 (130 mm) |
| Material | aluminum |
