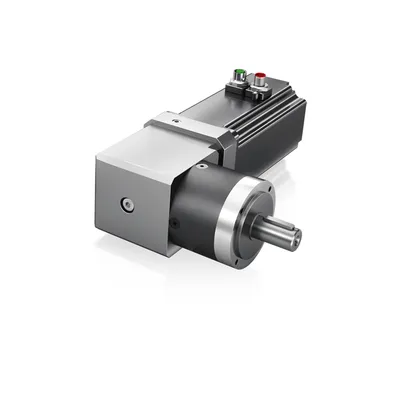

AG2250-+WPLE40 Parts
Compare AG2250-+WPLE40
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Nominal output torque | Max. acceleration torque | Gear stages | Gear ratio | Max. torsional backlash standard/reduced |
|---|---|---|---|---|---|
| AG2250-+WPLE40-M01-3 | 4.5 Nm | 7 Nm | 1 | 3 | ≤ 21/– arcmin |
| AG2250-+WPLE40-M01-4 | 6 Nm | 10 Nm | 1 | 4 | ≤ 21/– arcmin |
| AG2250-+WPLE40-M01-5 | 7.5 Nm | 12 Nm | 1 | 5 | ≤ 21/– arcmin |
| AG2250-+WPLE40-M01-7 | 8.5 Nm | 13.5 Nm | 1 | 7 | ≤ 21/– arcmin |
| AG2250-+WPLE40-M01-8 | 6 Nm | 10 Nm | 1 | 8 | ≤ 21/– arcmin |
| AG2250-+WPLE40-M01-10 | 5 Nm | 8 Nm | 1 | 10 | ≤ 21/– arcmin |
| AG2250-+WPLE40-M02-12 | 20 Nm | 32 Nm | 2 | 12 | ≤ 25/– arcmin |
| AG2250-+WPLE40-M02-16 | 20 Nm | 32 Nm | 2 | 16 | ≤ 25/– arcmin |
| AG2250-+WPLE40-M02-20 | 20 Nm | 32 Nm | 2 | 20 | ≤ 25/– arcmin |
| AG2250-+WPLE40-M02-25 | 18 Nm | 29 Nm | 2 | 25 | ≤ 25/– arcmin |
| AG2250-+WPLE40-M02-32 | 20 Nm | 32 Nm | 2 | 32 | ≤ 25/– arcmin |
| AG2250-+WPLE40-M02-40 | 18 Nm | 29 Nm | 2 | 40 | ≤ 25/– arcmin |
| AG2250-+WPLE40-M02-64 | 7.5 Nm | 12 Nm | 2 | 64 | ≤ 25/– arcmin |
| AG2250-+WPLE40-M03-120 | 18 Nm | 29 Nm | 3 | 120 | ≤ 28/– arcmin |
| AG2250-+WPLE40-M03-256 | 20 Nm | 32 Nm | 3 | 256 | ≤ 28/– arcmin |
| AG2250-+WPLE40-M03-320 | 18 Nm | 29 Nm | 3 | 320 | ≤ 28/– arcmin |
| AG2250-+WPLE40-M03-80 | 20 Nm | 32 Nm | 3 | 80 | ≤ 28/– arcmin |
| AG2250-+WPLE40-M03-200 | 18 Nm | 29 Nm | 3 | 200 | ≤ 28/– arcmin |
| AG2250-+WPLE40-M03-160 | 20 Nm | 32 Nm | 3 | 160 | ≤ 28/– arcmin |
| AG2250-+WPLE40-M03-512 | 7.5 Nm | 12 Nm | 3 | 512 | ≤ 28/– arcmin |
| AG2250-+WPLE40-M03-100 | 20 Nm | 32 Nm | 3 | 100 | ≤ 28/– arcmin |
| AG2250-+WPLE40-M03-60 | 20 Nm | 32 Nm | 3 | 60 | ≤ 28/– arcmin |
| AG2250-+WPLE40-M02-15 | 18 Nm | 29 Nm | 2 | 15 | ≤ 25/– arcmin |
| AG2250-+WPLE40-M02-9 | 16.5 Nm | 26 Nm | 2 | 9 | ≤ 25/– arcmin |
Common to all listed parts
| Design | angled |
| Variant | economy |
| Type | economy |
| Ambient temperature (operation) | -25…+40°C |
| Protection rating | IP54 |
| Design form | flange-mounted according to B14 |
| Coating/surface | post-oxidized, heat-treated steel |
