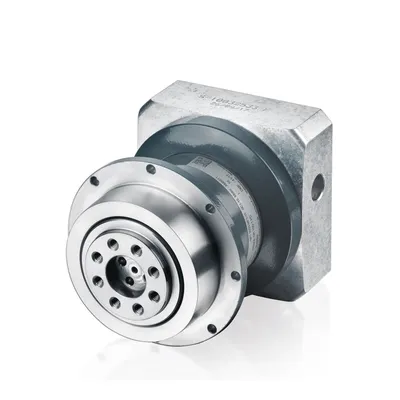

AG3400-+NPT005S Parts
Compare AG3400-+NPT005S
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Nominal output torque | Max. acceleration torque | Gear stages | Gear ratio | Max. torsional backlash standard/reduced |
|---|---|---|---|---|---|
| AG3400-+NPT005S-MF1-4 | 5.1 Nm | 18 Nm | 1 | 4 | ≤ 10 arcmin |
| AG3400-+NPT005S-MF1-5 | 6.5 Nm | 22 Nm | 1 | 5 | ≤ 10 arcmin |
| AG3400-+NPT005S-MF1-7 | 6.5 Nm | 22 Nm | 1 | 7 | ≤ 10 arcmin |
| AG3400-+NPT005S-MF1-8 | 6 Nm | 21 Nm | 1 | 8 | ≤ 10 arcmin |
| AG3400-+NPT005S-MF1-10 | 6 Nm | 21 Nm | 1 | 10 | ≤ 10 arcmin |
| AG3400-+NPT005S-MF2-16 | 5.1 Nm | 18 Nm | 2 | 16 | ≤ 13 arcmin |
| AG3400-+NPT005S-MF2-20 | 5.1 Nm | 18 Nm | 2 | 20 | ≤ 13 arcmin |
| AG3400-+NPT005S-MF2-25 | 6.5 Nm | 22 Nm | 2 | 25 | ≤ 13 arcmin |
| AG3400-+NPT005S-MF2-28 | 5.1 Nm | 18 Nm | 2 | 28 | ≤ 13 arcmin |
| AG3400-+NPT005S-MF2-35 | 6.5 Nm | 22 Nm | 2 | 35 | ≤ 13 arcmin |
| AG3400-+NPT005S-MF2-40 | 5.1 Nm | 18 Nm | 2 | 40 | ≤ 13 arcmin |
| AG3400-+NPT005S-MF2-50 | 6.5 Nm | 22 Nm | 2 | 50 | ≤ 13 arcmin |
| AG3400-+NPT005S-MF2-64 | 6 Nm | 21 Nm | 2 | 64 | ≤ 13 arcmin |
| AG3400-+NPT005S-MF2-70 | 6.5 Nm | 22 Nm | 2 | 70 | ≤ 13 arcmin |
| AG3400-+NPT005S-MF2-100 | 6 Nm | 21 Nm | 2 | 100 | ≤ 13 arcmin |
Common to all listed parts
| Design | straight |
| Variant | economy |
| Type | standard MF |
| Ambient temperature (operation) | -15…+40°C |
| Protection rating | IP64 |
| Design form | planetary gear with output flange |
| Coating/surface | coated |
