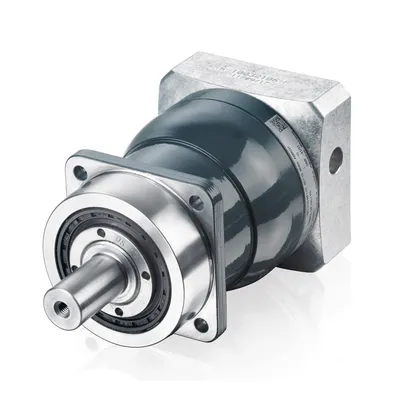

AG3300-+NPS045S Parts
Compare AG3300-+NPS045S
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Nominal output torque | Max. acceleration torque | Gear stages | Gear ratio | Max. torsional backlash standard/reduced |
|---|---|---|---|---|---|
| AG3300-+NPS045S-MF1-5 | 350 Nm | 800 Nm | 1 | 5 | ≤ 8 arcmin |
| AG3300-+NPS045S-MF1-8 | 200 Nm | 640 Nm | 1 | 8 | ≤ 8 arcmin |
| AG3300-+NPS045S-MF1-10 | 200 Nm | 640 Nm | 1 | 10 | ≤ 8 arcmin |
| AG3300-+NPS045S-MF2-25 | 350 Nm | 800 Nm | 2 | 25 | ≤ 10 arcmin |
| AG3300-+NPS045S-MF2-32 | 200 Nm | 640 Nm | 2 | 32 | ≤ 10 arcmin |
| AG3300-+NPS045S-MF2-50 | 350 Nm | 800 Nm | 2 | 50 | ≤ 10 arcmin |
| AG3300-+NPS045S-MF2-64 | 200 Nm | 640 Nm | 2 | 64 | ≤ 10 arcmin |
| AG3300-+NPS045S-MF2-100 | 200 Nm | 640 Nm | 2 | 100 | ≤ 10 arcmin |
Common to all listed parts
| Design | straight |
| Variant | economy |
| Type | standard MF |
| Ambient temperature (operation) | -15…+40°C |
| Protection rating | IP65 |
| Design form | flange-mounted according to B5 |
| Coating/surface | coated |
