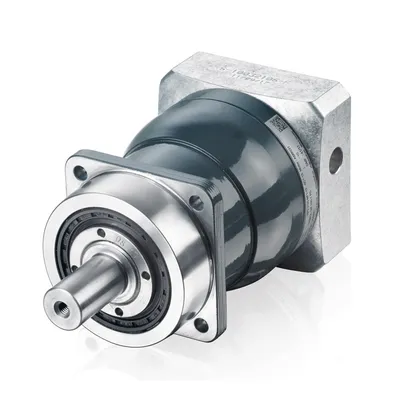

AG3300-+NPS015S Parts
Compare AG3300-+NPS015S
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Nominal output torque | Max. acceleration torque | Gear stages | Gear ratio | Max. torsional backlash standard/reduced |
|---|---|---|---|---|---|
| AG3300-+NPS015S-MF1-3 | 17 Nm | 51 Nm | 1 | 3 | ≤ 8 arcmin |
| AG3300-+NPS015S-MF1-4 | 18 Nm | 56 Nm | 1 | 4 | ≤ 8 arcmin |
| AG3300-+NPS015S-MF1-5 | 21 Nm | 64 Nm | 1 | 5 | ≤ 8 arcmin |
| AG3300-+NPS015S-MF1-7 | 21 Nm | 64 Nm | 1 | 7 | ≤ 8 arcmin |
| AG3300-+NPS015S-MF1-8 | 19 Nm | 56 Nm | 1 | 8 | ≤ 8 arcmin |
| AG3300-+NPS015S-MF1-10 | 19 Nm | 56 Nm | 1 | 10 | ≤ 8 arcmin |
| AG3300-+NPS015S-MF2-12 | 18 Nm | 51 Nm | 2 | 12 | ≤ 10 arcmin |
| AG3300-+NPS015S-MF2-15 | 18 Nm | 51 Nm | 2 | 15 | ≤ 10 arcmin |
| AG3300-+NPS015S-MF2-16 | 18 Nm | 56 Nm | 2 | 16 | ≤ 10 arcmin |
| AG3300-+NPS015S-MF2-20 | 18 Nm | 56 Nm | 2 | 20 | ≤ 10 arcmin |
| AG3300-+NPS015S-MF2-25 | 21 Nm | 64 Nm | 2 | 25 | ≤ 10 arcmin |
| AG3300-+NPS015S-MF2-28 | 18 Nm | 56 Nm | 2 | 28 | ≤ 10 arcmin |
| AG3300-+NPS015S-MF2-30 | 18 Nm | 51 Nm | 2 | 30 | ≤ 10 arcmin |
| AG3300-+NPS015S-MF2-32 | 19 Nm | 56 Nm | 2 | 32 | ≤ 10 arcmin |
| AG3300-+NPS015S-MF2-35 | 21 Nm | 64 Nm | 2 | 35 | ≤ 10 arcmin |
| AG3300-+NPS015S-MF2-40 | 18 Nm | 56 Nm | 2 | 40 | ≤ 10 arcmin |
| AG3300-+NPS015S-MF2-50 | 21 Nm | 64 Nm | 2 | 50 | ≤ 10 arcmin |
| AG3300-+NPS015S-MF2-64 | 19 Nm | 56 Nm | 2 | 64 | ≤ 10 arcmin |
| AG3300-+NPS015S-MF2-70 | 21 Nm | 64 Nm | 2 | 70 | ≤ 10 arcmin |
| AG3300-+NPS015S-MF2-100 | 19 Nm | 56 Nm | 2 | 100 | ≤ 10 arcmin |
Common to all listed parts
| Design | straight |
| Variant | economy |
| Type | standard MF |
| Ambient temperature (operation) | -15…+40°C |
| Protection rating | IP65 |
| Design form | flange-mounted according to B5 |
| Coating/surface | coated |
