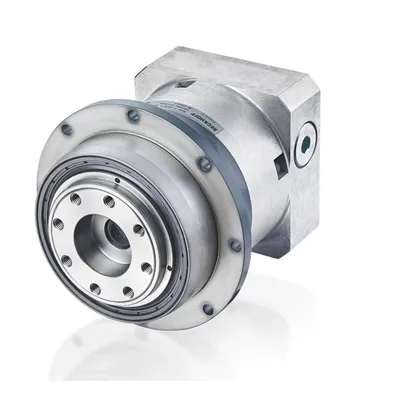

AG2400-+TP010S Parts
Compare AG2400-+TP010S
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Nominal output torque | Max. acceleration torque | Gear stages | Gear ratio |
|---|---|---|---|---|
| AG2400-+TP010S-MF2-16 | 106 Nm | 157 Nm | 2 | 16 |
| AG2400-+TP010S-MF2-20 | 101 Nm | 126 Nm | 2 | 20 |
| AG2400-+TP010S-MF2-21 | 96 Nm | 120 Nm | 2 | 21 |
| AG2400-+TP010S-MF2-25 | 124 Nm | 158 Nm | 2 | 25 |
| AG2400-+TP010S-MF2-28 | 107 Nm | 157 Nm | 2 | 28 |
| AG2400-+TP010S-MF2-31 | 87 Nm | 121 Nm | 2 | 31 |
| AG2400-+TP010S-MF2-35 | 126 Nm | 158 Nm | 2 | 35 |
| AG2400-+TP010S-MF2-40 | 112 Nm | 154 Nm | 2 | 40 |
| AG2400-+TP010S-MF2-50 | 126 Nm | 158 Nm | 2 | 50 |
| AG2400-+TP010S-MF2-61 | 97 Nm | 121 Nm | 2 | 61 |
| AG2400-+TP010S-MF2-70 | 126 Nm | 157 Nm | 2 | 70 |
| AG2400-+TP010S-MF2-91 | 77 Nm | 96 Nm | 2 | 91 |
| AG2400-+TP010S-MF2-100 | 84 Nm | 105 Nm | 2 | 100 |
| AG2400-+TP010S-MF1-4 | 84 Nm | 172 Nm | 1 | 4 |
| AG2400-+TP010S-MF1-5 | 81 Nm | 172 Nm | 1 | 5 |
| AG2400-+TP010S-MF1-7 | 81 Nm | 172 Nm | 1 | 7 |
| AG2400-+TP010S-MF1-10 | 81 Nm | 126 Nm | 1 | 10 |
| AG2400-+TP010S-MF1-8 | 80 Nm | 126 Nm | 1 | 8 |
| AG2400-+TP010S-MF2-32 | 119 Nm | 157 Nm | 2 | 32 |
| AG2400-+TP010S-MF2-64 | 84 Nm | 105 Nm | 2 | 64 |
Common to all listed parts
| Design | straight |
| Variant | high-end |
| Type | standard MF |
| Max. torsional backlash standard/reduced | ≤ 3/1 arcmin |
| Ambient temperature (operation) | -15…+40°C |
| Protection rating | IP64 |
| Design form | planetary gear with output flange |
| Coating/surface | coated |
