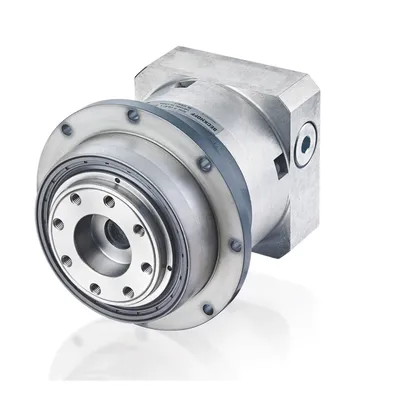

AG2400-+TP025S Parts
Compare AG2400-+TP025S
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Nominal output torque | Max. acceleration torque | Gear stages | Gear ratio |
|---|---|---|---|---|
| AG2400-+TP025S-MF1-4 | 175 Nm | 352 Nm | 1 | 4 |
| AG2400-+TP025S-MF1-5 | 169 Nm | 380 Nm | 1 | 5 |
| AG2400-+TP025S-MF1-7 | 172 Nm | 352 Nm | 1 | 7 |
| AG2400-+TP025S-MF1-10 | 180 Nm | 318 Nm | 1 | 10 |
| AG2400-+TP025S-MF2-16 | 250 Nm | 352 Nm | 2 | 16 |
| AG2400-+TP025S-MF2-20 | 267 Nm | 352 Nm | 2 | 20 |
| AG2400-+TP025S-MF2-21 | 211 Nm | 330 Nm | 2 | 21 |
| AG2400-+TP025S-MF2-25 | 265 Nm | 380 Nm | 2 | 25 |
| AG2400-+TP025S-MF2-28 | 282 Nm | 352 Nm | 2 | 28 |
| AG2400-+TP025S-MF2-31 | 231 Nm | 330 Nm | 2 | 31 |
| AG2400-+TP025S-MF2-35 | 294 Nm | 380 Nm | 2 | 35 |
| AG2400-+TP025S-MF2-40 | 282 Nm | 352 Nm | 2 | 40 |
| AG2400-+TP025S-MF2-50 | 304 Nm | 380 Nm | 2 | 50 |
| AG2400-+TP025S-MF2-61 | 246 Nm | 308 Nm | 2 | 61 |
| AG2400-+TP025S-MF2-70 | 282 Nm | 352 Nm | 2 | 70 |
| AG2400-+TP025S-MF2-91 | 220 Nm | 275 Nm | 2 | 91 |
| AG2400-+TP025S-MF2-100 | 233 Nm | 292 Nm | 2 | 100 |
| AG2400-+TP025S-MF1-8 | 172 Nm | 318 Nm | 1 | 8 |
| AG2400-+TP025S-MF2-32 | 251 Nm | 352 Nm | 2 | 32 |
| AG2400-+TP025S-MF2-64 | 233 Nm | 292 Nm | 2 | 64 |
Common to all listed parts
| Design | straight |
| Variant | high-end |
| Type | standard MF |
| Max. torsional backlash standard/reduced | ≤ 3/1 arcmin |
| Ambient temperature (operation) | -15…+40°C |
| Protection rating | IP64 |
| Design form | planetary gear with output flange |
| Coating/surface | coated |
