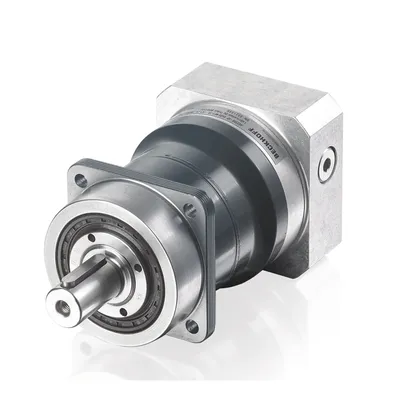

AG2300-+SP075S Parts
Compare AG2300-+SP075S
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Type | Nominal output torque | Max. acceleration torque | Gear ratio | Max. torsional backlash standard/reduced |
|---|---|---|---|---|---|
| AG2300-+SP075S-MC1-10 | high-speed MC | 53 Nm | 70 Nm | 10 | ≤ 6/4 arcmin |
| AG2300-+SP075S-MC1-3 | high-speed MC | 41 Nm | 68 Nm | 3 | ≤ 6/4 arcmin |
| AG2300-+SP075S-MC1-4 | high-speed MC | 51 Nm | 90 Nm | 4 | ≤ 6/4 arcmin |
| AG2300-+SP075S-MC1-5 | high-speed MC | 51 Nm | 90 Nm | 5 | ≤ 6/4 arcmin |
| AG2300-+SP075S-MC1-7 | high-speed MC | 52 Nm | 90 Nm | 7 | ≤ 6/4 arcmin |
| AG2300-+SP075S-MC2-100 | high-speed MC | 56 Nm | 70 Nm | 100 | ≤ 8/6 arcmin |
| AG2300-+SP075S-MC2-16 | high-speed MC | 62 Nm | 90 Nm | 16 | ≤ 8/6 arcmin |
| AG2300-+SP075S-MC2-20 | high-speed MC | 62 Nm | 90 Nm | 20 | ≤ 8/6 arcmin |
| AG2300-+SP075S-MC2-25 | high-speed MC | 72 Nm | 90 Nm | 25 | ≤ 8/6 arcmin |
| AG2300-+SP075S-MC2-28 | high-speed MC | 65 Nm | 90 Nm | 28 | ≤ 8/6 arcmin |
| AG2300-+SP075S-MC2-35 | high-speed MC | 72 Nm | 90 Nm | 35 | ≤ 8/6 arcmin |
| AG2300-+SP075S-MC2-40 | high-speed MC | 65 Nm | 90 Nm | 40 | ≤ 8/6 arcmin |
| AG2300-+SP075S-MC2-50 | high-speed MC | 72 Nm | 90 Nm | 50 | ≤ 8/6 arcmin |
| AG2300-+SP075S-MC2-70 | high-speed MC | 72 Nm | 90 Nm | 70 | ≤ 8/6 arcmin |
| AG2300-+SP075S-MF1-10 | standard MF | 81 Nm | 114 Nm | 10 | ≤ 4/2 arcmin |
| AG2300-+SP075S-MF1-3 | standard MF | 63 Nm | 102 Nm | 3 | ≤ 4/2 arcmin |
| AG2300-+SP075S-MF1-4 | standard MF | 81 Nm | 132 Nm | 4 | ≤ 4/2 arcmin |
| AG2300-+SP075S-MF1-5 | standard MF | 81 Nm | 132 Nm | 5 | ≤ 4/2 arcmin |
| AG2300-+SP075S-MF1-7 | standard MF | 81 Nm | 132 Nm | 7 | ≤ 4/2 arcmin |
| AG2300-+SP075S-MF2-100 | standard MF | 84 Nm | 105 Nm | 100 | ≤ 6/4 arcmin |
| AG2300-+SP075S-MF2-16 | standard MF | 101 Nm | 126 Nm | 16 | ≤ 6/4 arcmin |
| AG2300-+SP075S-MF2-20 | standard MF | 101 Nm | 126 Nm | 20 | ≤ 6/4 arcmin |
| AG2300-+SP075S-MF2-25 | standard MF | 106 Nm | 132 Nm | 25 | ≤ 6/4 arcmin |
| AG2300-+SP075S-MF2-28 | standard MF | 101 Nm | 126 Nm | 28 | ≤ 6/4 arcmin |
Common to all listed parts
| Design | straight |
| Variant | high-end |
| Ambient temperature (operation) | -15…+40°C |
| Protection rating | IP65 |
| Design form | flange-mounted according to B5 |
| Coating/surface | coated |
