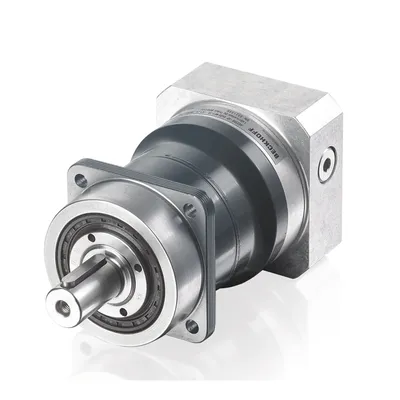

AG2300-+SP100S Parts
Compare AG2300-+SP100S
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Type | Nominal output torque | Max. acceleration torque | Gear ratio | Max. torsional backlash standard/reduced |
|---|---|---|---|---|---|
| AG2300-+SP100S-MC1-10 | high-speed MC | 97 Nm | 180 Nm | 10 | ≤ 4/2 arcmin |
| AG2300-+SP100S-MC1-3 | high-speed MC | 76 Nm | 180 Nm | 3 | ≤ 4/2 arcmin |
| AG2300-+SP100S-MC1-4 | high-speed MC | 95 Nm | 240 Nm | 4 | ≤ 4/2 arcmin |
| AG2300-+SP100S-MC1-5 | high-speed MC | 91 Nm | 240 Nm | 5 | ≤ 4/2 arcmin |
| AG2300-+SP100S-MC1-7 | high-speed MC | 93 Nm | 240 Nm | 7 | ≤ 4/2 arcmin |
| AG2300-+SP100S-MC2-100 | high-speed MC | 144 Nm | 180 Nm | 100 | ≤ 6/4 arcmin |
| AG2300-+SP100S-MC2-16 | high-speed MC | 138 Nm | 240 Nm | 16 | ≤ 6/4 arcmin |
| AG2300-+SP100S-MC2-20 | high-speed MC | 148 Nm | 240 Nm | 20 | ≤ 6/4 arcmin |
| AG2300-+SP100S-MC2-25 | high-speed MC | 149 Nm | 240 Nm | 25 | ≤ 6/4 arcmin |
| AG2300-+SP100S-MC2-28 | high-speed MC | 164 Nm | 240 Nm | 28 | ≤ 6/4 arcmin |
| AG2300-+SP100S-MC2-35 | high-speed MC | 164 Nm | 240 Nm | 35 | ≤ 6/4 arcmin |
| AG2300-+SP100S-MC2-40 | high-speed MC | 183 Nm | 240 Nm | 40 | ≤ 6/4 arcmin |
| AG2300-+SP100S-MC2-50 | high-speed MC | 182 Nm | 240 Nm | 50 | ≤ 6/4 arcmin |
| AG2300-+SP100S-MC2-70 | high-speed MC | 189 Nm | 240 Nm | 70 | ≤ 6/4 arcmin |
| AG2300-+SP100S-MF1-10 | standard MF | 174 Nm | 282 Nm | 10 | ≤ 3/1 arcmin |
| AG2300-+SP100S-MF1-3 | standard MF | 131 Nm | 282 Nm | 3 | ≤ 3/1 arcmin |
| AG2300-+SP100S-MF1-4 | standard MF | 171 Nm | 378 Nm | 4 | ≤ 3/1 arcmin |
| AG2300-+SP100S-MF1-5 | standard MF | 169 Nm | 378 Nm | 5 | ≤ 3/1 arcmin |
| AG2300-+SP100S-MF1-7 | standard MF | 166 Nm | 378 Nm | 7 | ≤ 3/1 arcmin |
| AG2300-+SP100S-MF2-100 | standard MF | 207 Nm | 259 Nm | 100 | ≤ 5/3 arcmin |
| AG2300-+SP100S-MF2-16 | standard MF | 243 Nm | 347 Nm | 16 | ≤ 5/3 arcmin |
| AG2300-+SP100S-MF2-20 | standard MF | 259 Nm | 347 Nm | 20 | ≤ 5/3 arcmin |
| AG2300-+SP100S-MF2-25 | standard MF | 257 Nm | 347 Nm | 25 | ≤ 5/3 arcmin |
| AG2300-+SP100S-MF2-28 | standard MF | 277 Nm | 347 Nm | 28 | ≤ 5/3 arcmin |
Common to all listed parts
| Design | straight |
| Variant | high-end |
| Ambient temperature (operation) | -15…+40°C |
| Protection rating | IP65 |
| Design form | flange-mounted according to B5 |
| Coating/surface | coated |
